Help Center2.8 Meter Diameter Silica Sand Rotary Dryer With Large Capacity Drying 10 Ton per Hour
Related Products
-
The Three Cylinder Silica Sand Rotary Dryer With High EfficiencyUS$ 20,000 - 20,000MOQ: 1 Set -
New Type Silica Sand Rotary Dryer Simple Structure and Simple Working PrincipleUS$ 20,000 - 20,000MOQ: 1 Set
-
Good Selling 8 Ton Sand Dryer Machine/quartz Sand Rotary Dryer With Good QualityUS$ 20,000 - 20,000MOQ: 1 Set
-
Efficiency Rotary Sand Dryer/Quartz Sand Drying Machine/silica Sand Dryer Machine With ISO, CE CertificateUS$ 20,000 - 20,000MOQ: 1 Set
-
Product Moisture Content Below 3% Sand Dryer Machine/River Sand Dry/Quartz Sand Rotary Dryer With Good Drying EffectUS$ 20,000 - 20,000MOQ: 1 Set
Explains:The silica sand dryer is made by our company is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of silica sand, river sand,quartz sand,limestone slag, coal powder, slag, clay stone. This silica sand dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.

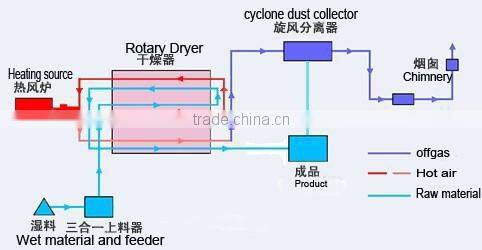

The silica sand dryer drying system drawing
silica sand dryer is also called rotary drying machine. The main body is revolving cylinder with a small slope. It is composed of the revolving body, lifting board, driving device, supporting device, and seal rings etc, with the characteristics of reasonable structure, perfect in workmanship, high output, low energy consumption, and convenient operation.

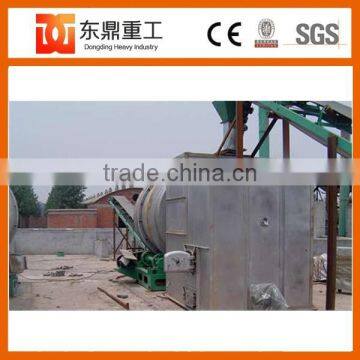

The silica sand dryer at our workshop

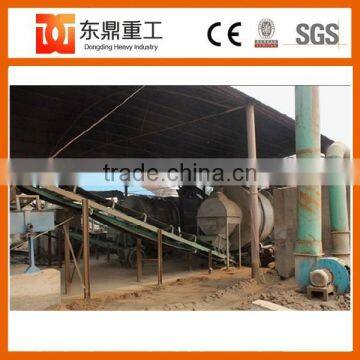

silica sand dryer at working site
The technology Parameters of silica sand dryer:
model | Capacity ( t/h) | Moisture after drying | Fuel consumption (kg/ton) | motor(kw) | Weight( ton) |
Φ 623 | 3-5 | <0.5% | 4-6 | 3×2 | 3 |
Φ 625 | 5-8 | <0.5% | 4-6 | 5.5×2 | 5 |
Φ 6210 | 8-12 | <0.5% | 6-8 | 7.5×2 | 10 |
Φ 6215 | 12-18 | <0.5% | 6-8 | 11×2 | 16 |
Φ 6220 | 18-22 | <0.5% | 8-10 | 15×2 | 22 |
Φ 6225 | 22-28 | <0.5% | 8-10 | 22×2 | 26 |
Φ 6230 | 28-32 | <1% | 8-10 | 30×2 | 30 |
Φ 6235 | 32-38 | <1% | 12-15 | 37×2 | 36 |
Φ 6240 | 38-41 | <1% | 12-15 | 55×2 | 42 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass powder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
