Hot selling silica sand dryer machine
silica sand dryer machine is our major product, with professional technology support and all-around service.
silica sand dryer is handling by bringing it into direct contact with a heated gas.Dryer machine is made up of a large rotating cylindrical tube, the rotary dryer slopes slightly so that the discharge of the dryer's outlet is lower than the material inlet in order to convey the material through the rotary dryer under.

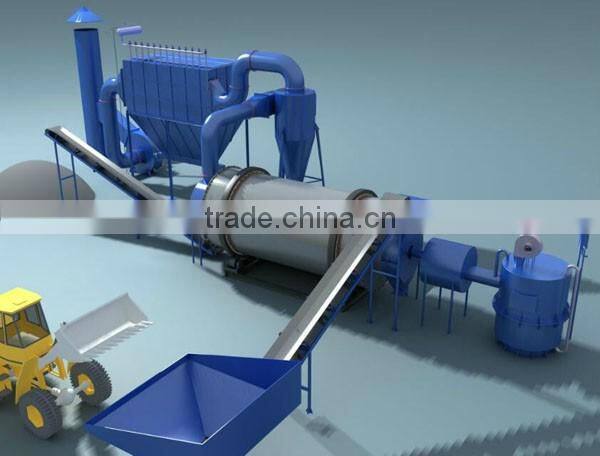

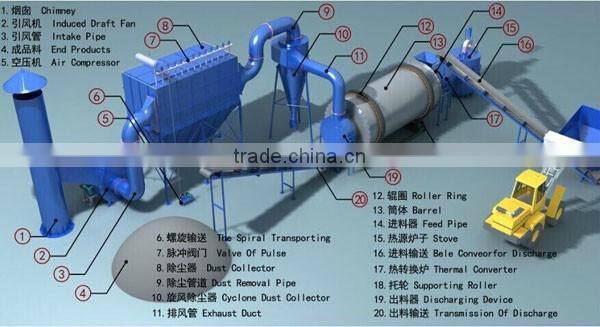

The three cylinder silica sand dryer drying system drawing
Working principle of silica sand dryer:
Material to be dried enters the dryer and as the dryer machine rotates, the material is lifted up by a series of internal fins lining of the wall on the rotary dryer, when the sand raising up by the lifting board,and will falls back down to the bottom of the rotary dryer, passing through the hot gas stream when the sand falling..

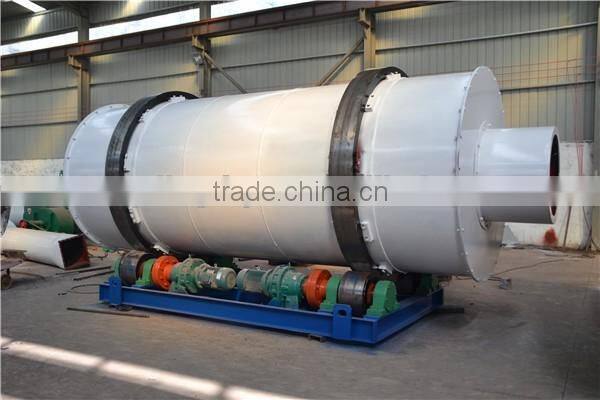

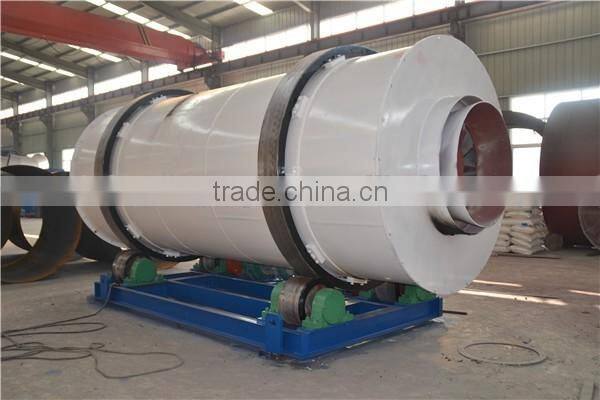

The three cylinder silica sand dryer at our workshop

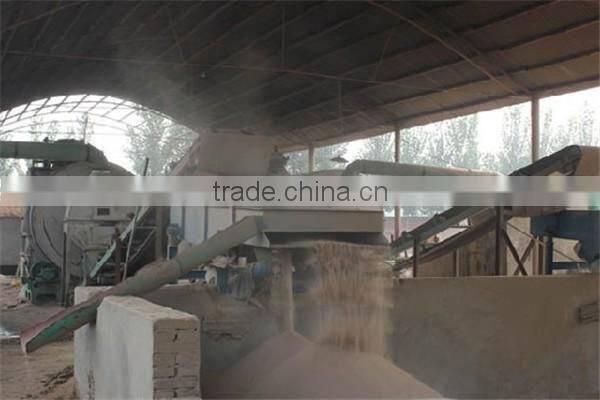

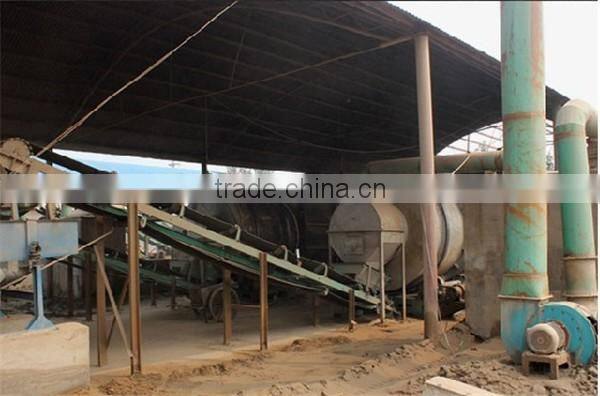

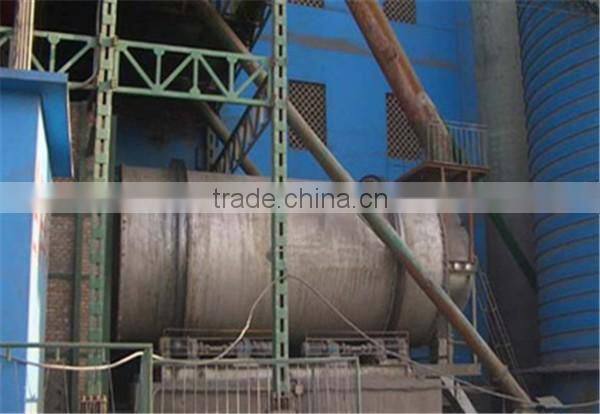

silica sand dryer at working site
The technology Parameters of silica sand dryer:
model | Capacity ( t/h) | Moisture after drying | Fuel consumption (kg/ton) | motor(kw) | Weight( ton) |
Φ 623 | 3-5 | <0.5% | 4-6 | 3×2 | 3 |
Φ 625 | 5-8 | <0.5% | 4-6 | 5.5×2 | 5 |
Φ 6210 | 8-12 | <0.5% | 6-8 | 7.5×2 | 10 |
Φ 6215 | 12-18 | <0.5% | 6-8 | 11×2 | 16 |
Φ 6220 | 18-22 | <0.5% | 8-10 | 15×2 | 22 |
Φ 6225 | 22-28 | <0.5% | 8-10 | 22×2 | 26 |
Φ 6230 | 28-32 | <1% | 8-10 | 30×2 | 30 |
Φ 6235 | 32-38 | <1% | 12-15 | 37×2 | 36 |
Φ 6240 | 38-41 | <1% | 12-15 | 55×2 | 42 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass powder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
