Help Center2017 New Type Professional Exported Sand Drying Machine/sawdust Rotary Dryer With Good Quality
Related Products
-
1-3 Ton per Hour Capacity Quartz Sand Dryer Machine Professional ManufacturerUS$ 20,000 - 20,000MOQ: 1 Set -
High Efficiency Limestone/mining Slag/sand Dryer With CE ApprovedUS$ 20,000 - 20,000MOQ: 1 Set
-
High Efficiency Slag Dryer Machine/Silica Sand Dryer/River Sand Rotary Dryer With Low Fuel ConsumptionUS$ 20,000 - 20,000MOQ: 1 Set
-
ISO9001/CE Certificate Approved Sand Rotary Dryer/Sand Dryer With Good QualityUS$ 20,000 - 20,000MOQ: 1 Set
-
Most Effective and Relialbe Sand Dryer Machine/Slag Rotary Dryer for Stone IndustryUS$ 20,000 - 20,000MOQ: 1 Set
Explains:The sand dryer is made by our company is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of silica sand, river sand,quartz sand,limestone slag, coal powder, slag, clay stone. This sand dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
The sand dryer drying system drawing
sand dryer is also called rotary drying machine. The main body is revolving cylinder with a small slope. It is composed of the revolving body, lifting board, driving device, supporting device, and seal rings etc, with the characteristics of reasonable structure, perfect in workmanship, high output, low energy consumption, and convenient operation.
Our company can guarantees the quality of products, credibility first, make the free installation and debugging, do the agency for consignment, and complete by quality, service, and price with other factories. At present, it is still widely used in metallurgical, building materials, and chemical industry.

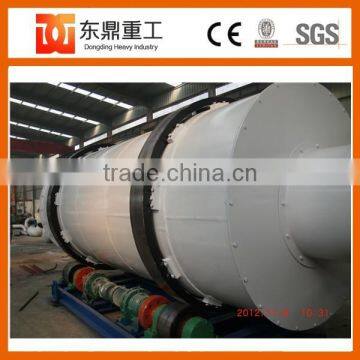

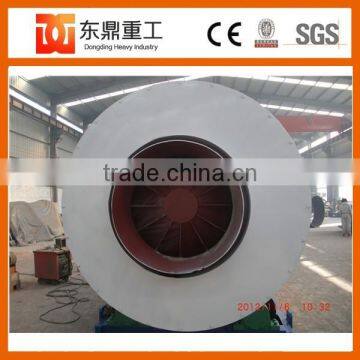

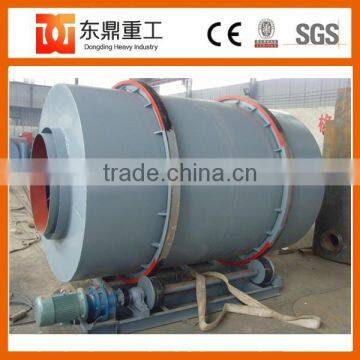

The sand dryer at our workshop
Sand dryer at working site
The technology Parameters of sand dryer:
model | Capacity ( t/h) | Moisture after drying | Fuel consumption (kg/ton) | motor(kw) | Weight( ton) |
Φ 623 | 3-5 | <0.5% | 4-6 | 3×2 | 3 |
Φ 625 | 5-8 | <0.5% | 4-6 | 5.5×2 | 5 |
Φ 6210 | 8-12 | <0.5% | 6-8 | 7.5×2 | 10 |
Φ 6215 | 12-18 | <0.5% | 6-8 | 11×2 | 16 |
Φ 6220 | 18-22 | <0.5% | 8-10 | 15×2 | 22 |
Φ 6225 | 22-28 | <0.5% | 8-10 | 22×2 | 26 |
Φ 6230 | 28-32 | <1% | 8-10 | 30×2 | 30 |
Φ 6235 | 32-38 | <1% | 12-15 | 37×2 | 36 |
Φ 6240 | 38-41 | <1% | 12-15 | 55×2 | 42 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.

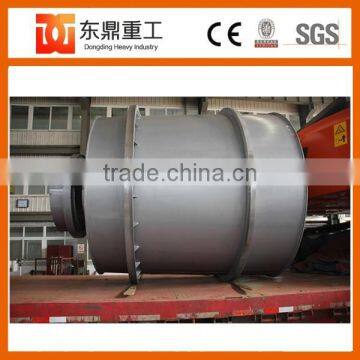

Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass powder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
