chicken manures dryer machinery is a drying machine with low fuel consumption and high efficiency.
The high humidity dryer machine can made the humidity below 85% material dry to a final moisture below 13%
This new type chhicken manure dryer machine is very suitable for dealing with high humidity waste material, byproduct and diverse chemical raw materials,such as chicken manure,
cow dung,wine slot,decoction dregs,fructose residue, sauce vinegar residue, sugar beet residue, slaughtered animal body contents, slime and others in animal husbandry, food brewing, sugar-making, and pharmaceutical industries.
The detail information parts and working site drawing of chicken manure dryer machine as below:
chicken manure dryer machine Features:
chicken manure dryer machine machine is used downstream drying techniques, the internal structure of the special design for fast drying humidity materials and can save nutrition, such as the handling of fresh chicken dung can achieve a drying, sterilization, deodorant and preservation of nutritional purposes.
chicken manure dryer machine machine are equipped with high-speed rotating broken devices in the roller, increased the contact area between material and drying medium, the internal certain unique machinery design, so that the material will not easy bonding materials in the tube wall panels and easy moving , complete machinery have insulation function, and good sealing function, the thermal efficiency considerably higher than the general drum dryer machinery.
The high humidity dryer machine structure is compact, so it is easy to install and debug, small footprint.
Drum and broken devices all use the step less speed regulating, so as to adapt to the different requirements of the drying material
The chicken manure dryer machine machine can be used with different heat sources which use different fuels (such as coal, heavy oil, natural gas, and more.

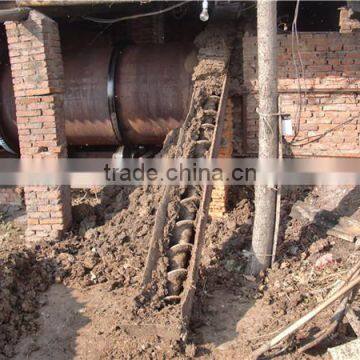

The chicken maure dryer at our factory and the working site at Africa
Facilities and work principle of high humidity dryer machine:
Facilities:
The complete system of drying machine is mainly composed by the dewaterer, burning furnace,feed conveyor, rotary dyer,pipes, output conveyor,dust catcher,ESP, fan,control cabinet components.
Principle of drying system:
Humidity materials are putted from the feed screw directly into the dryer machinery , was copied on the drum wall panels repeatedly, after scattered through the broken device, the raw material and was full contacted with high-temperature medium to complete heat and mass transfer process
Due to the effect of the roller’s inclination and citation am the wind, the material moves slowly from the feed end, then discharged from thedryer after drying, the exhaust gas dusted through dust catcher, then discharged to the atmosphere.
The technology parameters of chicken manure dryer machine
type |
DZS800 |
DZS1000 |
DZS1500 |
DZS1800 |
data |
Φ800×6m |
Φ1000×6m |
Φ1500×6.5m |
Φ1.8×7m |
drying capacity |
500-800kg/h |
1000-1500kg/h |
1500-1800kg/h |
≥2500kg/h |
rotation speed&power |
3-4rmp,4kw |
3-4rmp,5.5kw |
3-4rmp,10kw |
3-4rmp,15.5kw |
crushing spindle speed&power |
150-250rmp,3kw |
150-250rmp,4kw |
150-250rmp,4kw |
150-250rmp,5.5kw |
fan power |
7.5kw |
11kw |
15kw |
18.5kw |
coal consumption |
≤70kg/h |
≤110kg/h |
≤170kg/h |
≤220kg/h |
electricity consumption |
≤10kw/h |
≤15kw/h |
≤20kw/h |
≤30kw/h |
floor area |
≥80m2 |
≥100m2 |
≥120m2 |
≥150m2 |
factory height |
≥3.8m |
≥4.2m |
5.5m |
≥5.5m |
dryer machinery weight |
4T |
6T |
12T |
19T |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,chicken manure dryer machine, cow dung dryer machine,poultry manure drying machine and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
If you have any need of chicken manure dryer machine,cow dung dryer machine, poultry manure dryer, please contact with us as below:
