Widely Application Small Pellet machine
1. Introduction of wood pellet machine
wood pellet machine also named feed pellet machine, animal pellet machine, or wood pellet machine, because it can be used for different raw materials: wood, sawdust, straw, rice husk, leaves,animal forage and other biomass wastes.
It is considered as a green project, because most of their materials are recycled and reused. Also in production process, the pellet machine no need binder, so their products are green and nature.
We have three types pellet machine as follows, please check them.
A series (diesel engine)
Please tell me your raw material and capacity demand, then we can know which model is suitable to you.

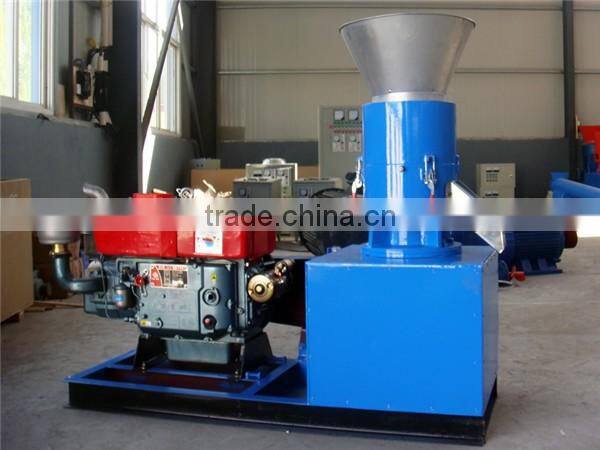

1.)Version A: pellet machine are driven by diesel engine and gasoline engine. Just KL120A and KL150A with gasoline engine, both are 7.5hp. Others are diesel engine from 8 to 55hp.
2.)Version B: pellet machine are driven by electric motor, without hood (extra cabinet) cover the motor
3.)Version C: pellet machine also driven by electric motor, with the improved model and hood (extra cabinet) cover the motor.
2.Features of wood pellet machine
(1)High pressure suitable for incompressible materials.
(2)Low wear rate, pressure roller die has long service life.
(3)Strong adaptability of the materials.
(4)Reliable quality and factory price sales, because we are factory, not trading company and middleman.
3.Raw materials of wood pellet machine
This wood pellet machine is suitable for pressing difficult to adhesive and molding materials.
(1)Rice husk, sunflower shell, peanut shells, melons shell;
(2)Branches, tree trunks, bark and other wood waste;
(3)All kinds of crops straw;
(4)Animal feed and forage.

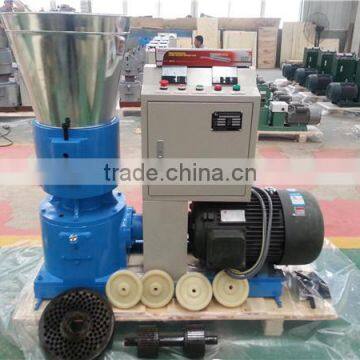

The pellet machine and parts:
The technology parameters of small bio wood pellet machine:
APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
| Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
| Electric motor | ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
| Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
| Gasoline engine | ZLSP-150Q
| 7.5HP | 90-120 | 180-220 | 1000x500x750 |
| PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
