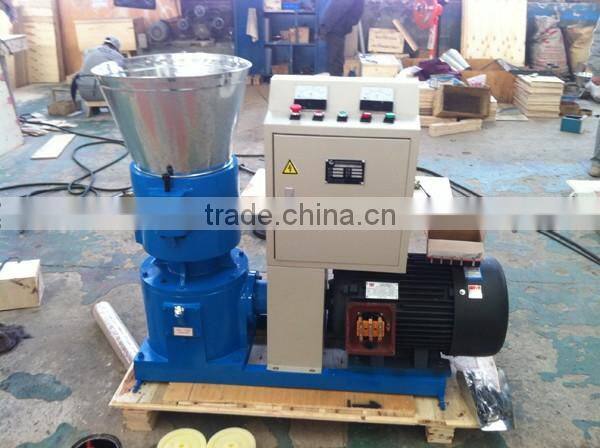

Small Animal Feed Pellet Machine/fish Feed Pellet Machine for Home and Small Farm
Brief Introduction of Small Feed Pellet Machine
ZLSP series small flat die pellet machines, the working from 2.2kw to 15kw. This pellet machine make the pellets by shaft driving and high-technology, working without water, and belongs to dry-input and dry-output. The feed pellets made mainly for the small breeding mills, the warranty of it can keep at least half of one year.
It is widely used in family and small scale farm. The compressed feed pellet is
pretty for poultry and livestock, such as chicken, duck, fish, pig, horse, cattle,
sheep, etc.
Features of Small Feed Pellet Machine
• The feed pellets are with high density, smooth and clean surface;
• Formation rate: 98% high capacity,low investment: suit for family and farm use;
• Auto lubricate system: continuous working and high efficiency.
Advantages of Animal Feed Pellet Machine
1).Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption.
2).Powder feed, grass meal doesn’t need or with a little liquid, then can be making for granulation.
So basic to the moisture content of grain feed granulating before the moisture of the materials, more conducive for storage.
3).The feed pellets for chicken, duck, fish, cattle,pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4).Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the digestion and absorption of nutrients.

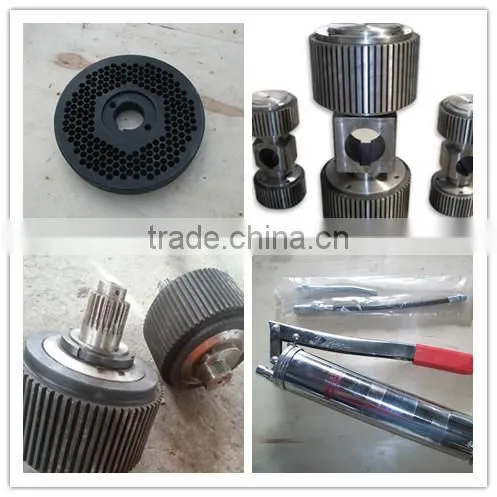

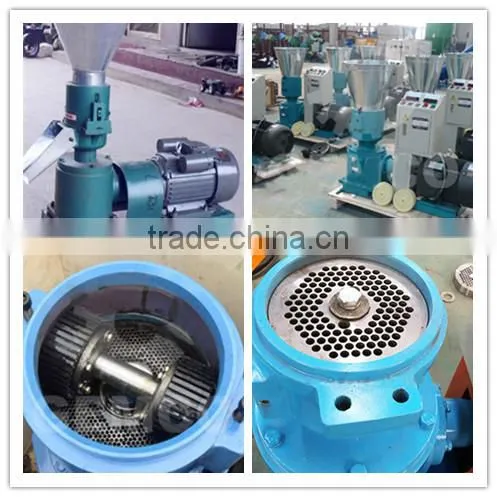

The feed pellet machine and some parts

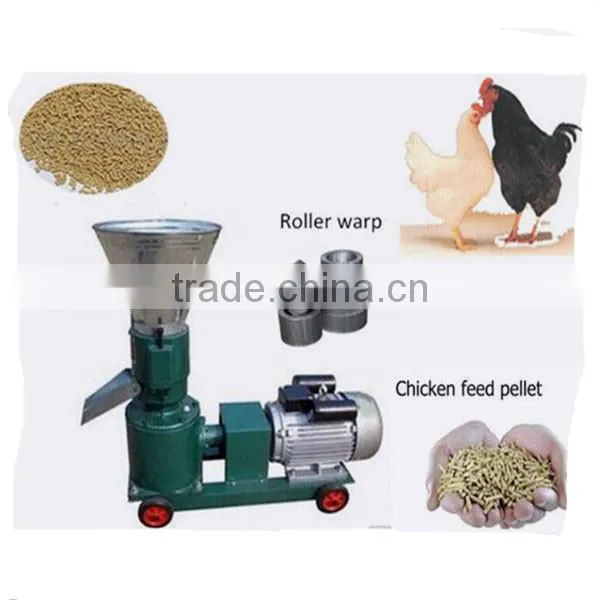

The final product of feed pelletmachine
iThe technology parameters of small feed pellet machine:
APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
| Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
| Electric motor | ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
| Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
| Gasoline engine | ZLSP-150Q
| 7.5HP | 90-120 | 180-220 | 1000x500x750 |
| PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make both wood pellets and feed pellets. When making feed pellets, it performs better and the capacity is bigger.
Q2. What are the spare parts for this series pellet machine?
Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The long life time of the die and rollers is 1500 hours at least. It needs to change the easy wear parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
