Low energy consumption coir fibre rotary dryer /Oil palm fibre dryer for industry
Coir fibre is produced from oil palm's vascular bundles in the Empty Fruit Bunch (EFB). EFB is considered as waste products after the Fresh Fruit Bunch (FFB) have been processed. Palm fiber itself is 100% natural, non-hazardous, biodegradable and environmentally friendly.
HK is able to produce large quantities of oil palm EFB fibre, which are not only long, clean and fine, but also in uniformity through our self-designed and installed custom-built production lines.
The simeple drying system of coir fibre dryer
The detail parts of coir fibre dryer

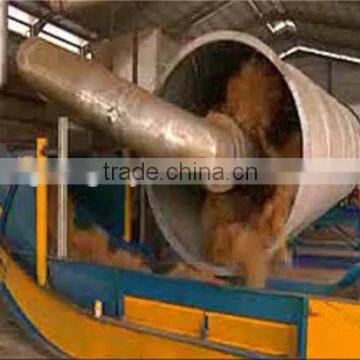

coir fibre dryer system
The technology Parameters of coir fibre Dryer:
Model | Diameter (m) | Length (m) | speed | Installation obliquity (%) | Drying temperature (°c) | Capacity (t/h) | Motor (kw) | Weight (ton)
|
Φ0.8x8 | 0.8
| 8 | 3-6 | 3-5% | ≥800 | 0.6-0.8 | 3 | 3 |
Φ1.0x10 | 1.0
| 10 | 3-6 | 3-5% | ≥800 | 1-1.5 | 4 | 7 |
Φ1.2x10 | 1.2
| 10 | 3-6 | 3-5% | ≥800 | 1.8-2 | 7.5 | 14 |
Φ1.2x12 | 1.2
| 12 | 3-6 | 3-5% | ≥800 | 2-3 | 11 | 15 |
Φ1.5x15 | 1.5
| 15 | 3-6 | 3-5% | ≥800 | 3-3.5 | 15 | 20 |
Φ1.8x18 | 1.8
| 18 | 3-6 | 3-5% | ≥800 | 5.0-5.5 | 18.5 | 30 |
Φ1.8x20 | 1.8
| 20 | 3-6 | 3-5% | ≥800 | 5.5 | 18.5 | 33 |
Φ2.2x20 | 2.2
| 20 | 3-6 | 3-5% | ≥800 | 6.5-7.0 | 22 | 56 |
Φ2.4x20 | 2.4
| 20 | 3-6 | 3-5% | ≥800 | 7.5-8 | 30 | 60 |
Φ2.5x20 | 2.5
| 20 | 3-5 | 3-5% | ≥800 | 8-9 | 30 | 63 |
Φ2.5x25 | 2.5
| 25 | 3-5 | 3-5% | ≥800 | 10-11 | 37 | 68 |
Φ2.8x20 | 2.8
| 20 | 3-5 | 3-5% | ≥800 | 13-15 | 45 | 75 |
Φ2.8x30 | 2.8
| 30 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 83 |
Φ3.0x20 | 3.0
| 20 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 78 |
Φ3.0x22 | 3.0
| 22 | 3-5 | 3-5% | ≥800 | 20-25 | 55 | 80 |
Φ3.0x30 | 3.0
| 30 | 3-5 | 3-5% | ≥800 | 25-28 | 75 | 90 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,coir fibre rotary dryer, Wood chips dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,coir fibre burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
