Low Cost Vertical Washing Powder Filling Packaging Machine
Product description
This Low cost vertical washing powder filling packaging machine is an economic,applicable automatic powder material filling machine,can completelocate the bottle, filling and metering automatically.
It consists of a filling head, a chain plate conveyor belt and a positioning device, adopt the screw (or step) motors, PLC and touch screen control, simple operation, high stability. This automatic powder pack machine could match with the unscrambler screw cap machine, labeling machine, etc to build a a complete automatic powder packing line.Suitable for packing powder and small granular materials,such aspowder,small granules drugs, veterinary medicine, glucose, seasoning, solid beverage, carbon powder, talcum powder, pesticide, etc.
1.All the main parts of our automatic powder packing machine,except the motor, are made of stainless steel, composite transparent hopper,so this powder packing line is easy to clear.
2.Adopts servo (or step) motor driven,this automatic powder packing machine is difficult to wear out, accurate positioning, manual control and stable working performance.
3.Adopt PLC control, this automatic powder packing machine enjoys a stable work performance, high precision.
4.English and Chinese Touch screen,shows the working state, operating instructions , fault status and production statistics clearly, make this automatic powder pack machine is very easy to operate.
5.Has the record function for the powder ingredients, could be storaged for later use. At most could record 10 ingredients.

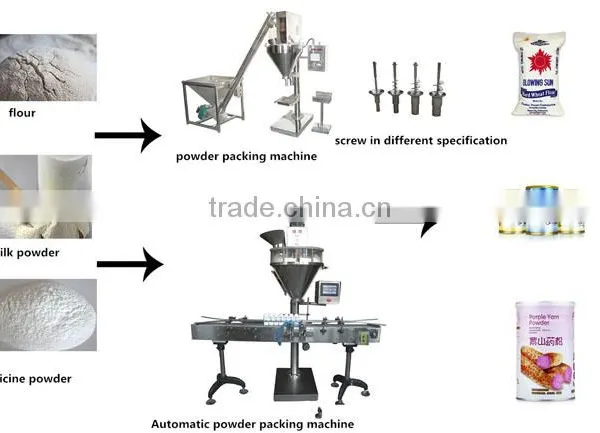

6.By replacing the screw,the automatic powder pack machine is also workable for either powder or some small granular material.
7.Installation of centrifugal device to make sure higher packing precision of some good fluidity material.
8.As to powder material, automatic powder pack machine
can also equipped with the dust collection device to make sure good working environment.
The technial parameters of Low cost vertical washing powder filling packaging machine
Model | YSDF-B powder filler machine |
Volt | AC380V 900W |
Packaging Accuracy | ±1% |
Packing specification | 5g-5000g(adjust the parts inside the machine) |
Packing speed | 1-2500 bags/h |
Size | 1000×850×1850mm |
Weight | 280 kg |
Low cost vertical washing powder filling packaging machine
Low cost vertical washing powder filling packaging machine

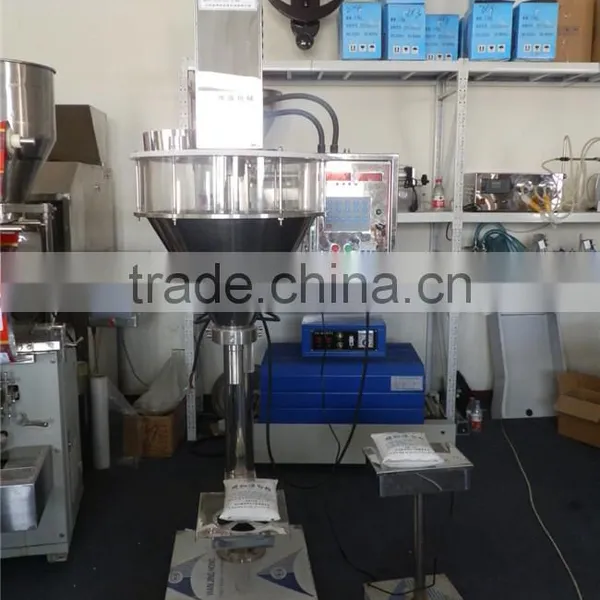

The detail parts of Low cost vertical washing powder filling packaging machine
The packing process and material of Low cost vertical washing powder filling packaging machine
1. Low cost vertical washing powder filling packaging machine packed in export wooden case covered with dampproof film. The operation manual would go with machine
2.For standard model semi automatic flour powder filling machine, shipping out in 5days by sea. If need to be customized,the lead time is 15days.
1.One year warranty
2.Has a number of highly qualified engineers and experts to provide guidance for the maintenance.
3.When a fault occurs, our company will organize experts to troubleshoot the first time and resolve
the problem within 1-2 working days.
4.Lifelong after-sale service
