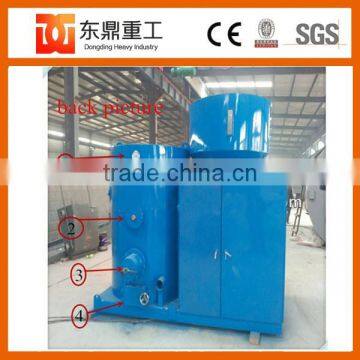

Enewrgy-saving biomass burner/wood pellet burner/ pellet burner for boiler,drying system and furnace
The energy saving biomass pellet burner for drying system is adopting high temperature pyrolyzing all kinds of biomass material, then converting it to high quality heating source residue-free, replace of coal, electric, fossil oil, gas to supply heat.
Features of the energy saving biomass burner/ wood pellet burner for drying system :
1. Using biomass pellets,farming waste(straw, wheat stalk, corn stalk, cob, rice husk, peanut shell, Cotton branches, weeds etc.), forest waste(trees, bark, tree root, leaves, wood shavings, sawdust etc.) etc, as raw material.
2. The biomass pellet raw material crushed aggregates under
3mm in diameter is the best material for the burner,of course, it can also use the biomass pellets directly.
3. There is no CO2, SO2 or other harmful gas produced when the biomass pellet burner working, environment protecting.
4. Screw feeding, high temperature increasing oxygen, temperature control moisturizing automatic intelligent control system.
5. Automatic operation, one person is enough to watch over it.
6. Vortex design, multi-cyclone increase oxygen, raw material could be made full use with maximum limit.
7. The heat efficiency can reach up to 95%, temperature can reach to 800-1200 degree.
8. Saving cost of 30-40% than burn the coal directly.
Item model | Feeding conveyor motor power(kw) | Motor power of feeder(kw) | Air fan power(fan) |
DL-LK1.0 | 1.1 | 1.1 | 2.2 |
Size of main burner(mm) | Sawdust consumption (kg/h) | Natural gas consumption (Nm3/h) | Heating valve (kcal/h) |
2400X2200X1550 | 155 | 75 | 600,000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding heavy equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technologyprofessional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
As a professional manufacture,we are also supply rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.If you have any need of those machine, please contact with us.
