Industrial Wood Sawdust Dryer After Drying to Sawdust Briquette Charcoal

Industrial Wood Sawdust Dryer After Drying to Sawdust Briquette Charcoal photo-1
Industrial Wood Sawdust Dryer After Drying to Sawdust Briquette Charcoal photo-2
Industrial Wood Sawdust Dryer After Drying to Sawdust Briquette Charcoal photo-3
US$ 20,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Dongding Heavy Industry
Model Number:
DC-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjian Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Dongding Heavy Industry
Model Number DC-D
Condition New
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Working Principles of Sawdust Dryer:
 Sawdust dryer is suitable for drying various types of sawdust which the moisture content is less than 55%.
1. First, sawdust after transfer system enter into the sawdust dryer cylinder, flied by raising plate device which are uniform distribution in the drum cylinder.

2. The sawdust are evenly distributed in sawdust dryer cylinder which can bear high temperature, then fully contact with the hot air, speed up the drying heat and mass transfer.

3. During the drying process, under the effect of plate and hot treatment in the sawdust dryer, the materials are drying well.

4. At last, the dried sawdust come out from the end of the sawdust dryer.

The simeple drying system of sawdust dryer

Industrial Wood Sawdust Dryer after drying to sawdust briquette charcoal

Sawdust dryer main structure as below:
1.Adjustable motor     2.Reducer            3.Transmission base
 4. Big Gear       5.Small Gear        6.Tug based        7. Feed port

  8. Discharge port  9. Air induced fan         10. Drying cylinder
 11. Roller ring                     12.Cyclone

The detail parts of sawdust dryer

Industrial Wood Sawdust Dryer after drying to sawdust briquette charcoal

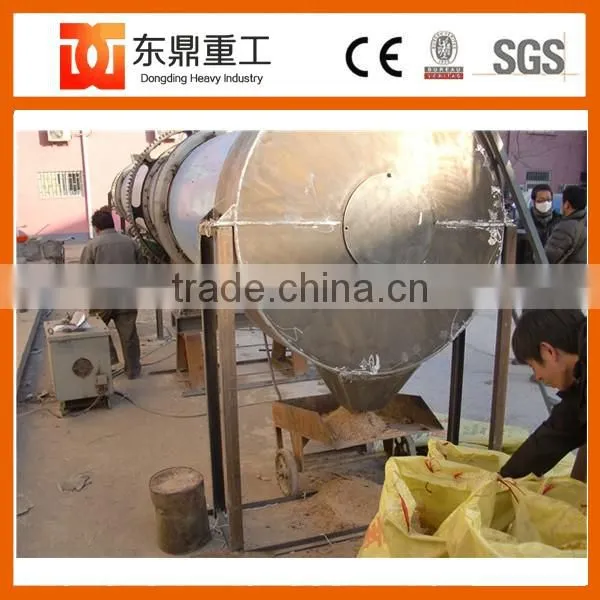

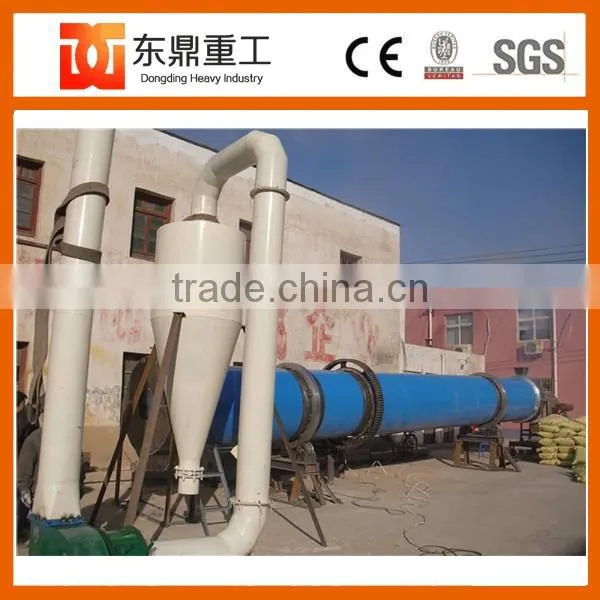

Sawdust dryer system testing at our factory

Industrial Wood Sawdust Dryer after drying to sawdust briquette charcoalIndustrial Wood Sawdust Dryer after drying to sawdust briquette charcoalIndustrial Wood Sawdust Dryer after drying to sawdust briquette charcoal

The technology Parameters of Sawudst Dryer:

Model

Diameter

(m)

Length

(m)

speed
(r/min)

Installation obliquity

(%)

Drying temperature

(°c)

Capacity

(t/h)

Motor

(kw)

Weight

(ton)



Φ0.8x8

0.8



8

3-6

3-5%

800

0.6-0.8

3

3

Φ1.0x10

1.0



10

3-6

3-5%

800

1-1.5

4

7

Φ1.2x10

1.2



10

3-6

3-5%

800

1.8-2

7.5

14

Φ1.2x12

1.2



12

3-6

3-5%

800

2-3

11

15

Φ1.5x15

1.5



15

3-6

3-5%

800

3-3.5

15

20

Φ1.8x18

1.8



18

3-6

3-5%

800

5.0-5.5

18.5

30

Φ1.8x20

1.8



20

3-6

3-5%

800

5.5

18.5

33

Φ2.2x20

2.2



20

3-6

3-5%

800

6.5-7.0

22

56

Φ2.4x20

2.4



20

3-6

3-5%

800

7.5-8

30

60

Φ2.5x20

2.5



20

3-5

3-5%

800

8-9

30

63

Φ2.5x25

2.5



25

3-5

3-5%

800

10-11

37

68

Φ2.8x20

2.8



20

3-5

3-5%

800

13-15

45

75

Φ2.8x30

2.8



30

3-5

3-5%

800

18-20

55

83

Φ3.0x20

3.0



20

3-5

3-5%

800

18-20

55

78

Φ3.0x22

3.0



22

3-5

3-5%

800

20-25

55

80

Φ3.0x30

3.0



30

3-5

3-5%

800

25-28

75

90



Packaging & Shipping

  Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.

Some case of our rotary dryer shipping to customer

Industrial Wood Sawdust Dryer after drying to sawdust briquette charcoal

Company Information

 Henan Donging Heavy Industry Equipment CO.,LTD  is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.



As a professional manufacture,we are supply machinery as below:

1.) Rotary dryer,Sawdust dryer, Wood chips dryer,Brewer grain dryer and other dryer

2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine

3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others

4.)wood chipper,wood hammer mill,wood crusher and other machine.

Industrial Wood Sawdust Dryer after drying to sawdust briquette charcoal
