Wood chipper shredder/ wood chipper blades /large wood chipper machine
Skype:pelletmachine06 Wechat:R18615687606 Whatsapp/Line:+8618615687606
Introduction of wood chipper
The High Capacity Wood Chipper is the special equipment of making high quality wood chips for
flakeboard, the base of production and export of fiberboard, and papermaking and wood chips plant.
It is widely used in stock workshop section of industrial manufacture.For example, the flakeboard,
fire board, building board, straw power plant.The raw material is small diameter wood,timber
harvesting, processing residues (such as branches, twigs, planks, logs cores,waste veneer, etc),
it can also be used for other materials (such as sugar cane, reed,bamboo,etc.).
Working principle of wood chipper
Drum wood chipper machine is the special equipment of producing wood chippers, it included the
machine body, knife/blade roller, the upper and lower feed rollers, belt conveyor, and hydraulic
systems. Knife roller will install two or four, six rotary knives, according to the different thickness

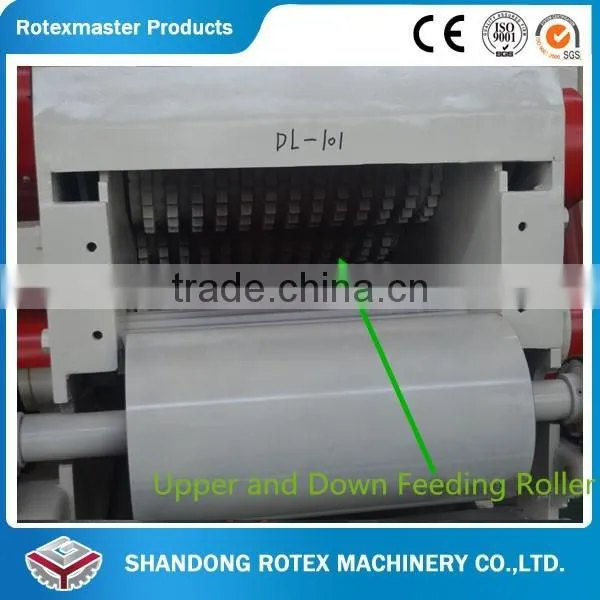

and diameter of the materials which cut. The upper feed roller assembly can use the hydraulic
system to fluctuate within a certain range.
Technical parameters of wood chipper :
| Model | YBX216 | YBX218 | YBX2113 |
| Feeder inlet size(cm) | 23*50 | 30*68 | 35*80 |
| Rotate knives (pcs) | 2 | 2 | 3 |
| Max diameter (mm) | 230 | 300 | 350 |
| Wood chips size(mm) | 30*30*10 | 30*30*10 | 30*30*10 |
| Capacity (t/h) | 5-8 | 8-15 | 15-25 |
| Main motor power(kw) | 55 | 110 | 220 |
| Net Weight(t) | 4.7 | 7.1 | 11.8 |
Wood chipper machine details:
(1) Advanced structure,High quality cutting chippers,Wide scope of application,Simple operation
,Easy maintenance.
(2) Wear-resistant sharp alloy tool,reliable advanced and to enhance its service life.
(3) Wearing parts low-consumption,low running cost.
Raw material and finished product:
How to work of the wood chipper

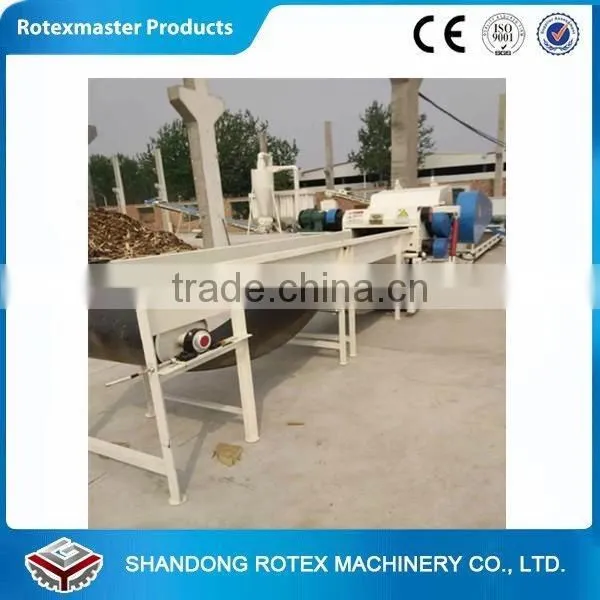

Wood chipper used in the Thailand Wood Pellet Production line

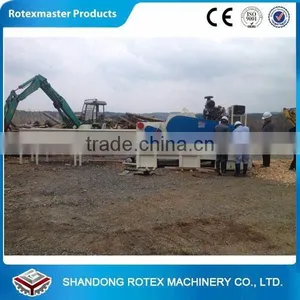

It is our diesel engine wood chipper working in Japan
Testing the wood chipper before delivery

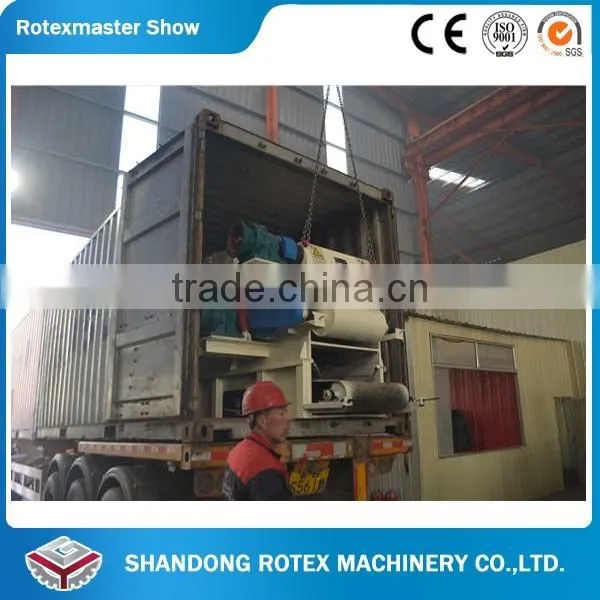

Delivery of the wood chipper
We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.
* Our professional service includes: Free training, Guidance Installation and Debugging.
* Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)
* If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your rerequirement on time.
Send Inquiry
Before Sales:
1. Guide our customers to deploy the most useful equipment item according to the requirement.
2. Provide product information and technical details.
3. Design and manufacture product according to the customers' special requirement.
After Sales:
We can dispatch our technician to help installation or guidance on-line to make sure the right
installation and operation.
Our Promise:
1. Provide one-year warranty.
2. The price of wearing parts will not higher than the market price.
Shandong Rotex Machinery CO.,LTD is a comprehensive manufacturer of bio energy
machinery, feed machinery,organic fertilizer machinery and production lines. located in
Zhangqiu, Jinan, the company coverd 2.47 acre area, with more than usd 6.5million turnover,
is the leading company in this field.Our main products are pellet machine, wood chipper,
hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop
and supply high quality products for domestic and overseas customers. and has wined an
outstanding reputation in international market.
If you are interested in this machine, please do not hesitate to contact us.
We are sure that we will offer you the best wood chipper and service.
We are anticipated to cooperate with you !
