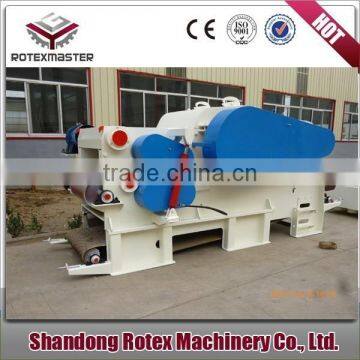

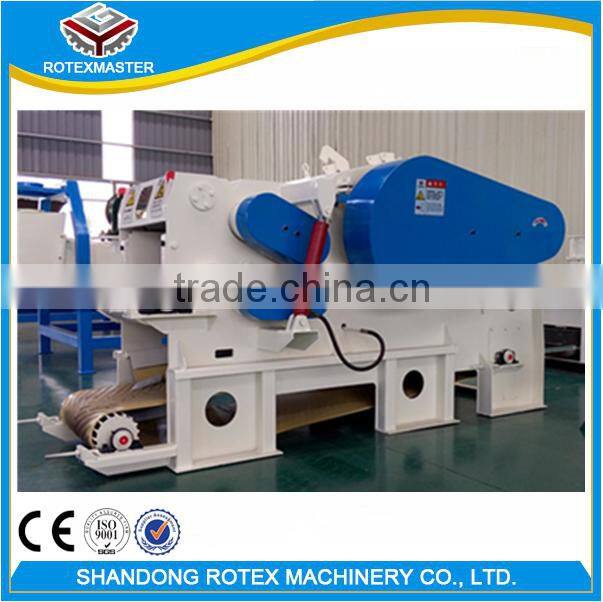

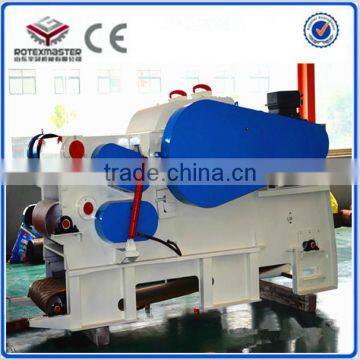

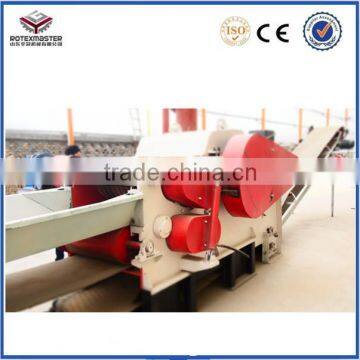

Automatic Hydraulic Systerm With High Efficiency Wood Chipper
- 5100 Unit / Units per Month
- Qingdao
- D/P D/A
- 4-7T/H Capacity Multifunctional Industrial Coconut Husk Chips Machine
- wood chippers / woodchipper
- DRUM WOODCHIPPER WOOD CRUSHER CHIPPER
- high quality drum wood chipper/wood chipping machine for sale
- Factory direct sale new product and good quality 7000kg tree wood chipper
- Chinese manufacturers wear-resistant sharp alloy tool 7000kg trees chipper for sale
Product Details
Condition: | New | Type: | Wood Chipper | Use: | cutting wood |
Power Type: | Diesel | Production Capacity: | 4-6t/h | Place of Origin: | Shandong, China |
Brand Name: | ROTEXMASTER | Model Number: | YBX216 | Dimension(L*W*H): | different for different models |
Weight: | 5300kg | Certification: | CE & ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Automatic Hydraulic Systerm With High Efficiency Wood Chipper seaworthy packing
Product Description
>Products Introduction of Drum Wood Chipper:
-Drum wood chipper is mainly used to crush big wood logs or timber
wood branches, furniture waste, long bamboo into small chips , the thickness of last chips is 1.5mm-3mm, length and width about 20-50mm, the knives gap can be adjusted,then outlet chips dimension will be adjusted.
-Drum wood chipper contains 4m length feeding belt conveyor, when conveying logs, the speed can be adjusted.also it can connect with outlet conveyor to transport away crushed wood chips.
-Drum wood chipper has limit feeding door dimension ,raw wood logs should be smaller than feeding door, but length no limit, feeding speed can be adjusted.
-The hydraulic system is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.
Technical Parameter of Drum wood chipper:
Model | YGX216 | YGX218 | YGX2113 |
Feeder hopper size (mm) | 230*500 | 600*300 | 450*700 |
Rotate knives (pcs) | 2 | 2 | 2 |
Knife roller speed (r/min) | 590 | 650 | 500 |
Max diameter (mm) | 230 | 300 | 450 |
Wood chips size(mm) | 30 | 25-35 | 38 |
Capacity (t/h) | 6-8 | 10-15 | 15-30 |
Main motor power(power) | 55 | 110 | 200 |
Net Weight(t) | 4070 | 7100 | 11840 |
>Brief Introduction of Drum Wood Chipper:
Model | Remark |
YGX216 Wood Chipper | 1.Power:55+4+3+1.5+1.5kw 380v 50hz 2.Capacity:5-8t/h 3.Wood Chips Size:30mm 4.Max Diameter:23*50cm 5.Raw Materials: small diameter wood,timber harvesting(such as branches,twigs,etc.), processing residues(such as branches,twigs,planks,log cores,waste veneer,etc.), it can also be used for cutting non-wood materials(such as sugar cane,reed,bamboo,etc.) 6.Usage: Widely used for wood shaving plant,highly MDF plant,straw plants,biomass power plant etc. |
♣Advantages of drum wood chipper:
♦Advanced structure, High quality cutting chippers, Wide scope of application, Simple operation, Easy maintenance;
♦Wear-resistant sharp alloy tool, reliable advanced and to enhance its service life;
♦Wearing parts low-consumption, low running cost.
Standard export wooden case or iron case as your requirement
Finished products:
* We insist on "Quality is the soul of company", we own outstanding R&D team with the
sense of innovation and cooperation.
* Our professional service includes: Free training, Guidance Installation and Debugging.
* Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)
* If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your rerequirement on time.
Rotex machine has earn their place in pellet machinery supply industry by offering a better quality product , Rotex has more than 200 staffs in different department to give the full support of the team from different aspects. However, the professional technical engineers follow the industry trend internationally, while the sales team keeps the machinery passion alive and the love-to-support attitude to every single client. Furthermore,Rotex team always keeps their vision globally and tries their best to solve the different problem in different market.
Contaction:
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your rerequirement on time.
QQ: 3194982886
Tel:+8613256683030
Company Profile
Shandong Rotex Machinery.,Co.Ltd, Which located in Jinan , Capital of Shandong Province, Zibo east, its north and south bordering 309 State Line and Jinan-Qing dao High Speed, just 30kilometers away from Jinan International Airport. The company is a collection of research, development,production , operating as one of modern machinery manufacturing enterprises, Registered capacital of 10 million, employs more than 150 people, strong technical force, advanced production technology, perfect after-sales services .
We are doing biomass fuel machinery, fodder farming ma,chinery, and supporting the auxiliary equipment of drying, cooling,dust removal equipment and other machinery products, the main products:Flat Die Pellet Machine , Ring Die Wood Pellet Machine , Drum Wood Chipper and Hammer Mill two series ; Air Flow, Rotary Dryer ,Cooling Equipment and other two series of Screener, Belt Conveyors and other equipments .
Our Company has ISO9001-2000 Certification,CE Certification,SGS Certification etc.Products cover the enviromental carbon, biomass,urban and rural environment,culture and other fields.There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural ,organic fertilizer equipment and environment, Feeder Equipment and Environmental protection equipment .
We are an enterprise of science and technology , which combined the scientific researchand development, manufacturing and training , international trade.Especially in the energy shorttage today , starting from customers'interests, standing in the perspective of customers , considering for our customers, with our professional knowledge, designing more reasonable manufacturing flow and produceing much better products .
Companies adhere to the "Service, Quality First, Brand, Reputation First" Principle to provide our customers with the best quality services .Welcome the customers to visit to our factory.
