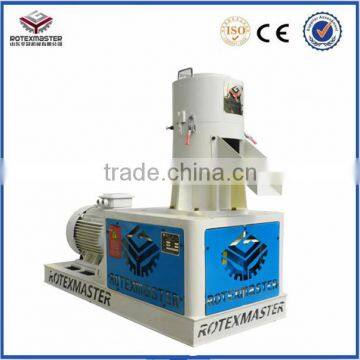

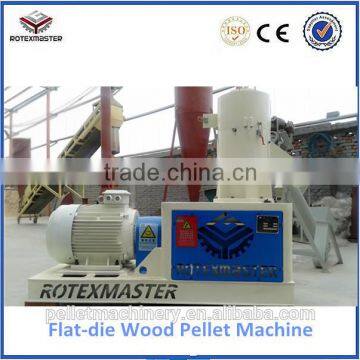

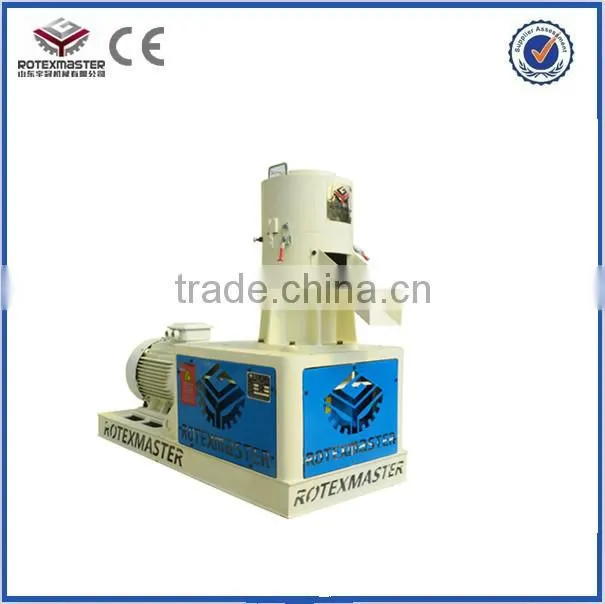

Worth to Buy Flat-die Wood Pellet Machine / Pellet Mill
Tel:13165110202 Skype:woodpelletmachine19 Wechat:yuguanjixie0202
Products introduction

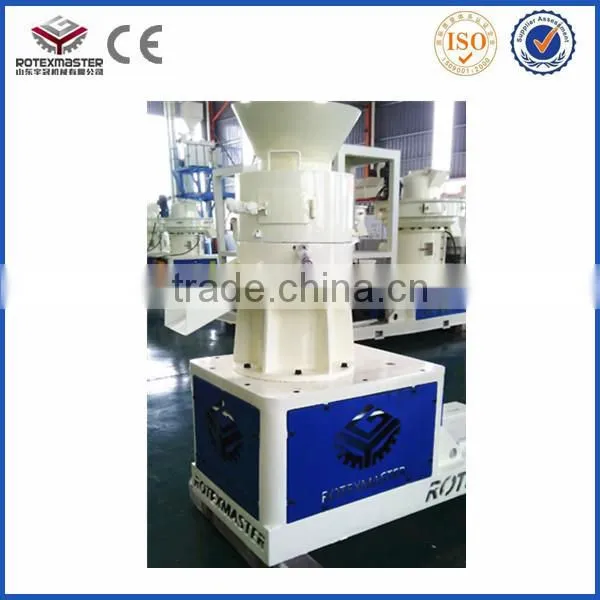

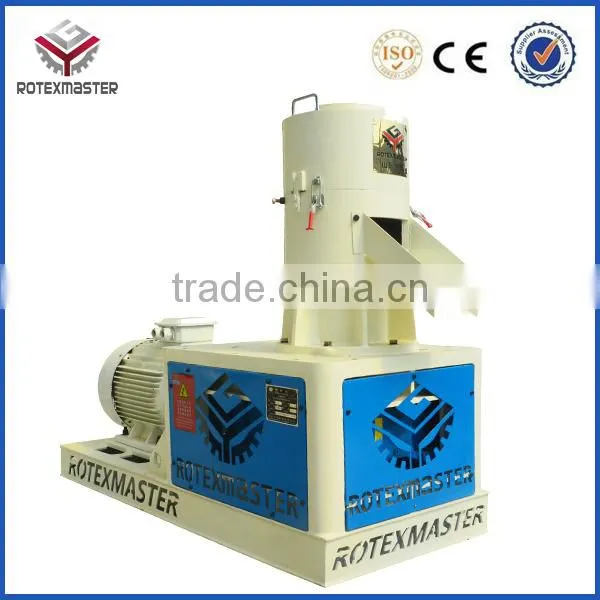

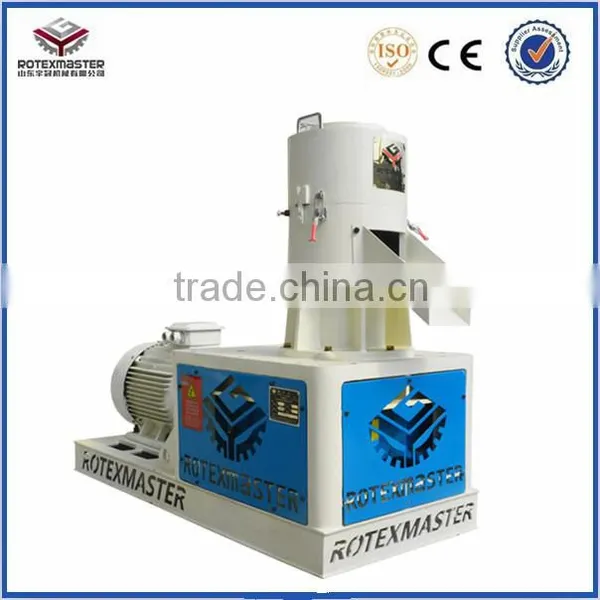

YMKJ series flat die pellet machine absorbed the essence of Germany KAHL pellet mill, after our engineers improved, it had reached the world-class advanced level now.

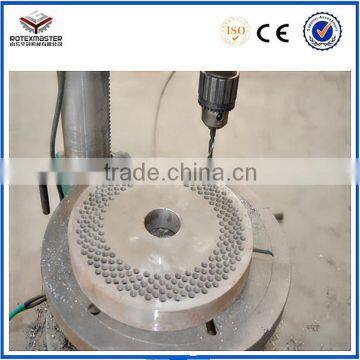

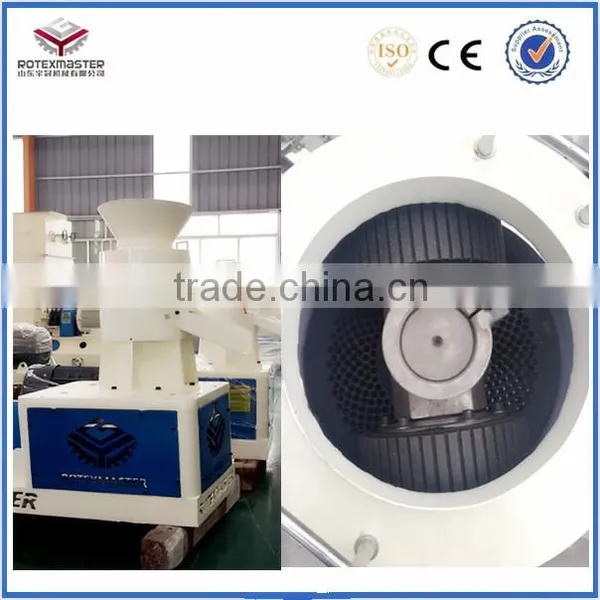

The heart parts “rollers” and “die” are made by high quality wear resistant alloy steel and heat treatment according to different materials, have long lifetime.
The transmission parts adopt auto differential, drum juncture or universal joint drive.
The products are applied to large-sized, medium-sized and small-sized biomass energy fuel plants, wood processing factory, municipal refuse cleaning plant, organic fertilizer plant, chemical plant, animal feed plant and fishery etc, our pellet machines are the most ideal compact shaped equipments.
Widely used in family and small scale farm,the compressed feed pellet is good fodder for poultry and livestock,such as sheep,chicken,duck,fish,pig,horse,cattle,sheep,deer and ostrich etc.
Feed pellet increase the feed use rate and reduce waste.
Advantages
Simple structure, small volume, working stable with low working noise.
Easy operation. Top quality feed pellet, with adjustable size and length
The feed pellets are with high density, smooth and clean surface
Formation rate: 98% High capacity
Low investment: suit for family and farm use
Belt drive or directly connecting drive of this small pellet machine, working with electric power or diesel as optional;
Auto lubricate system: continuous work and high efficiency
Alloy steel Roller, extender machine service life
Parameters
Model | Power (Kw) | Pellet Diameter (mm) | Mould Diameter (mm) | Output Capacity (t/h) | Dimension (mm) | Weight (kg) |
YMKJ250 | 11-15 | 4-12 | 250 | 0.18-0.2 | 1250x600x850 | 400 |
YMKJ300 | 22 | 4-12 | 300 | 0.2-0.3 | 1300x600x900 | 550 |
YMKJ350 | 30 | 4-12 | 350 | 0.35-0.5 | 1650x800x1350 | 800 |
YMKJ400 | 37 | 4-12 | 400 | 0.5-0.6 | 1700x800x1450 | 1000 |
YMKJ450 | 45 | 4-12 | 450 | 0.65-0.75 | 1700x800x1450 | 1300 |
YMKJ550 | 55 | 4-12 | 550 | 0.8-1 | 1700x800x1450 | 2200 |
YMKJ800 | 90 | 4-12 | 800 | 1.5-2 | 2250x1250x2200 | 3800 |
Service
Guarantee period is one year (except wearing parts), since the date of purchasing.
24- hour technical supports
Design product according to the customers requirement.
We provide available price.
Thanks for reading my product information. If you have any questions, please don't hesitate to contact me.Then I will provide you the best and professional srevice.
