Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Food Pulverizer Machine, Universal Stainless Steel Grinding Machine, Milling Machine

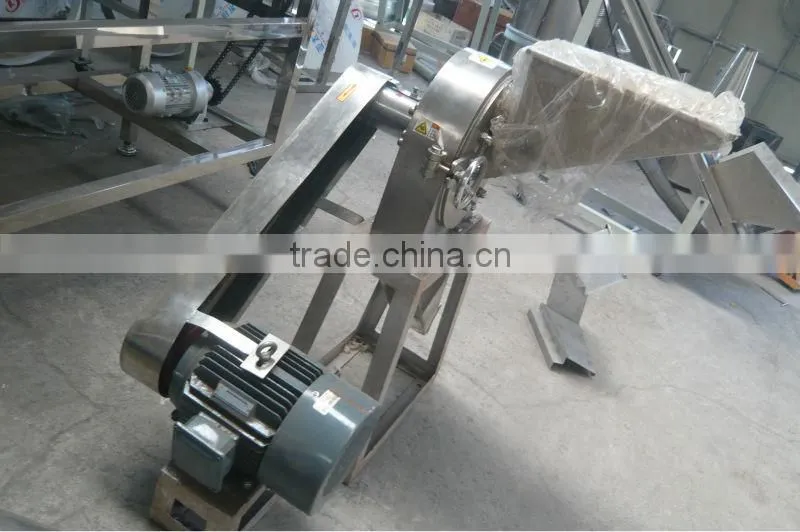

Food Pulverizer Machine, Universal Stainless Steel Grinding Machine, Milling Machine

Food Pulverizer Machine, Universal Stainless Steel Grinding Machine, Milling Machine photo-1
US$ 8,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Eagle
Payment & Shipping
Payment Methods:
Port of Shipment:
anyport in china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Eagle
Model Number DP
Production Capacity 100-800kg/h for choosing
Voltage according your local requirement
Power(W) 11-15kw
Weight 450kg
Dimension(L*W*H) 400*300*1000mm
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

  Food pulverizer machine, universal stainless steel grinding machine, milling machine

Food pulverizer machine, universal stainless steel grinding machine, milling machine

Detailed Product Description:

This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc.It is a new-generat

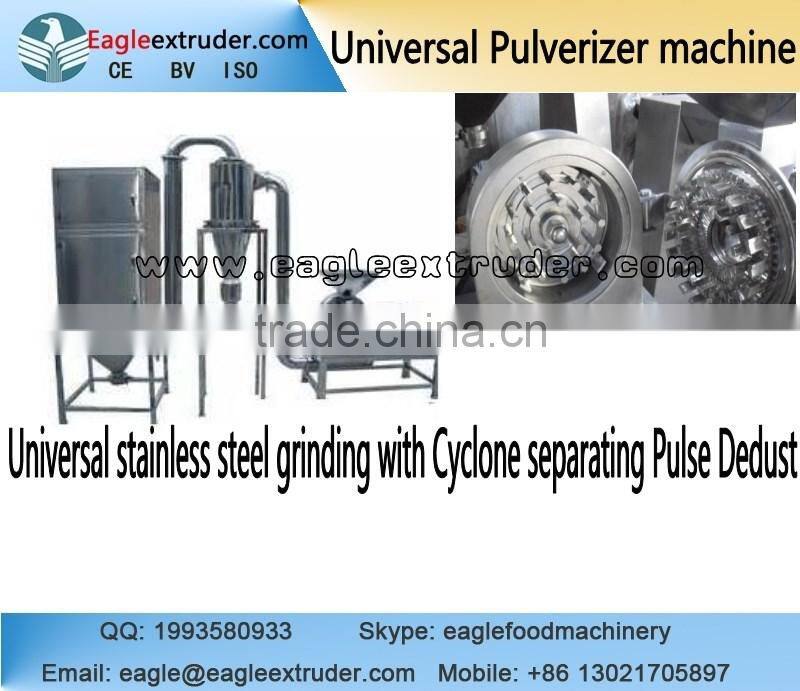

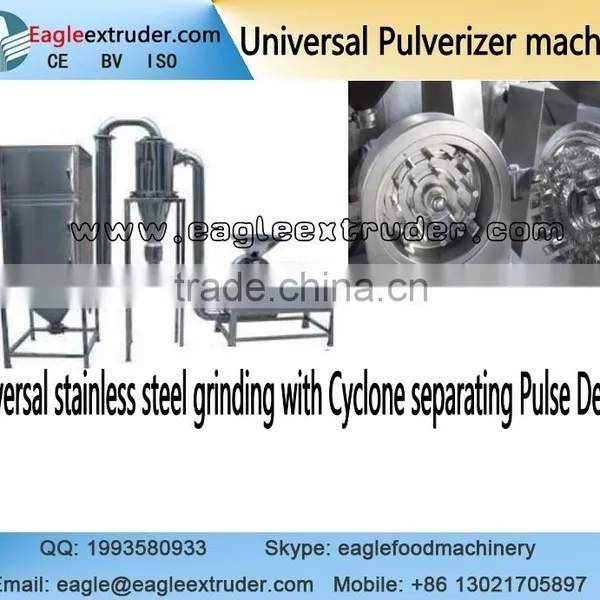

 This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and blower fan etc. By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by the screen.Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.



Technical Data:



Model

DP-FSJ20B

DP-FSJ30B

DP-FSJ40B

DP-FSJ60B

DP-FSJ80B

Capacity(kg/h)

65-150

100-400

160-1000

300-1500

500-2000

Speed of principal axis (rpm)

4500

3800

3400

2800

2100

Size of input granules (mm)

6

6

10

12

15

Crushing fineness (mesh)

60-150

60-120

60-120

60-120

60-100

Crushing Motor(kw)

5.5

7.5

11

22

30

Dust collecting Motor (kw)

1.5

3

4

7.5

15

Discharge motor(kw)

0.75

0.75

0.75

0.75

0.75

Overall Size(L *W*H)(mm)

2800*850*2300

3500*850*2480

3800*900*2550

4500*1100*2800

5800*1400*3600

Weight(kg)

580

800

1200

1800

2900

Material

SS304

SS304

SS304

SS304

SS304





Food pulverizer machine, universal stainless steel grinding machine, milling machineFood pulverizer machine, universal stainless steel grinding machine, milling machine





 Food pulverizer machine, universal stainless steel grinding machine, milling machine
