Features

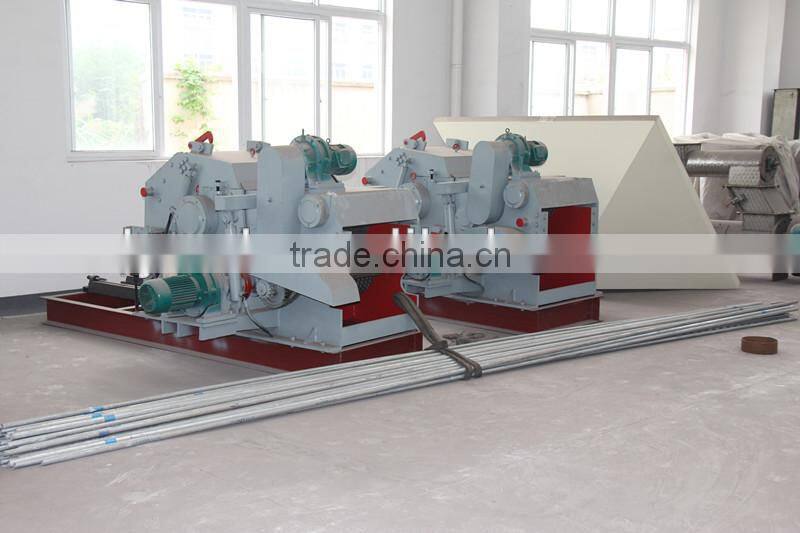

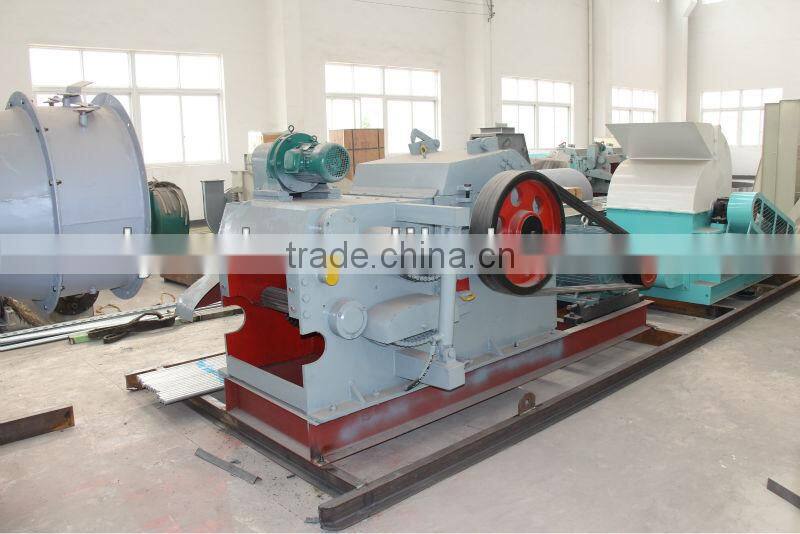

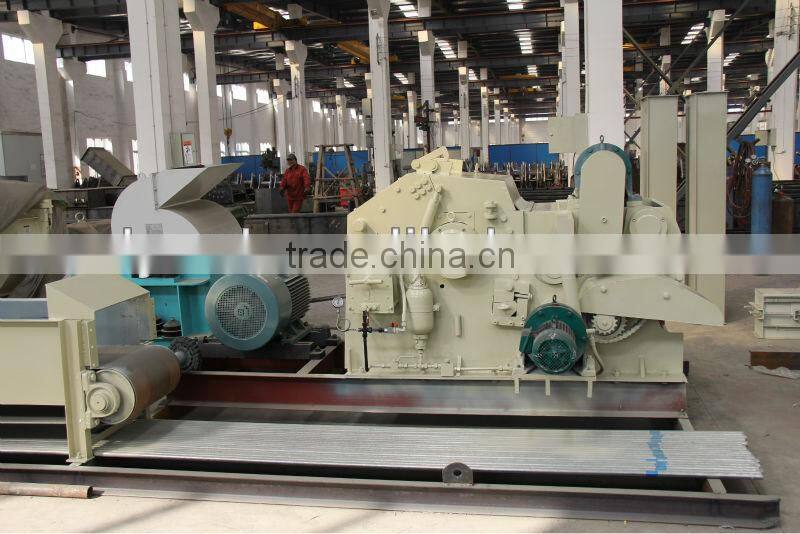

The drum chipper is the special equipment for producing perfect chips, and it is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, logs and small wood are cut into high quality with even length and uniform chip thickness. It is also suitable for the chipping of branches and twigs, and planks.
The chip length is different in accordance with the requirements of paper plants, particular broad and fiber-board industries. In order to meet this need, our company has improved different kinds of drum chippers recently, and the new
type machines have more advantages. All the features show that it is ideal equipment for chip production which can be exported all over the world.
Technical parameter
Models |
BX213 |
BX215 |
BX216 |
Rotor Diameter(mm) |
300 |
500 |
650 |
Number of rotor knives(pieces) |
3 |
3 |
3 |
Feed opening(mm) |
120x300 |
180x400 |
240x540 |
Rotor Speed(Rpm) |
730 |
592 |
590 |
Feed Speed(m/min) |
38 |
38 |
38 |
Stock processed max diameter(mm) |
70 |
100 |
150 |
Chip length(mm) |
26 |
35 |
35 |
Capacity(m3/h) |
1 |
2-3 |
3-4 |
Main drive motor power(KW) |
30 |
45 |
55 |
Feed roller motor power(KW) |
1.1x2 |
2.2x2 |
3x4 4x1 |
Weight(t) |
1.2 |
2.9 |
4.07 |
Overall dimensions (mm) |
3680x870x900 |
1540x1240x1020 |
1980x1950x1250 |

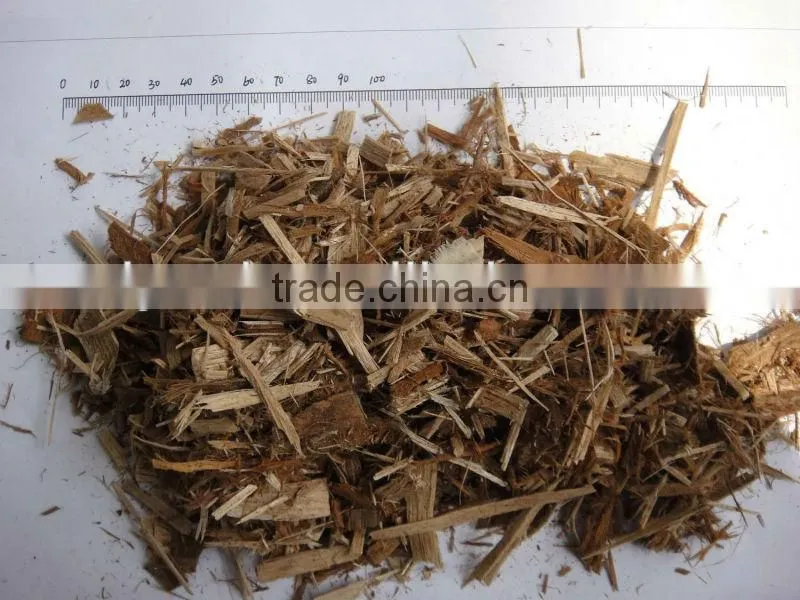

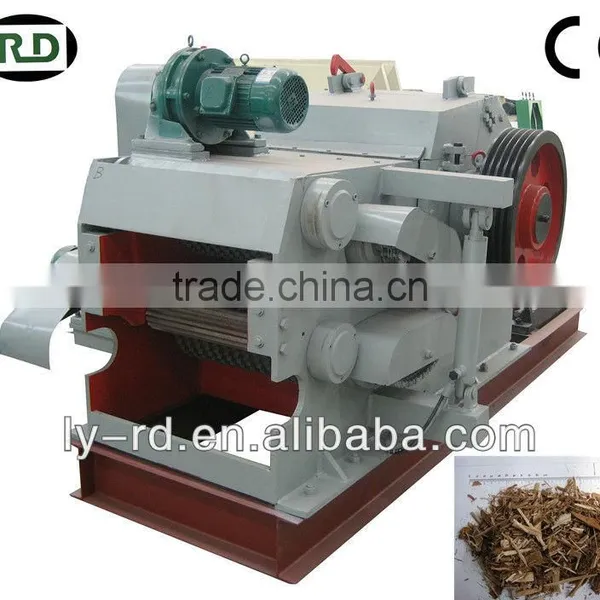

Finished product and chipper
Wood pelleting line
1. Peeling Process
2. Chipping Process
3. Drying Process
4. Grinding Process
5. Pelletizing Process
6. Cooling and Sieving Process
7. Packing Process
Company introduce
Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
The Rongda company is the one for many yearsspecialized in biomass.....
Certificate
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you illustrated catalogues.
