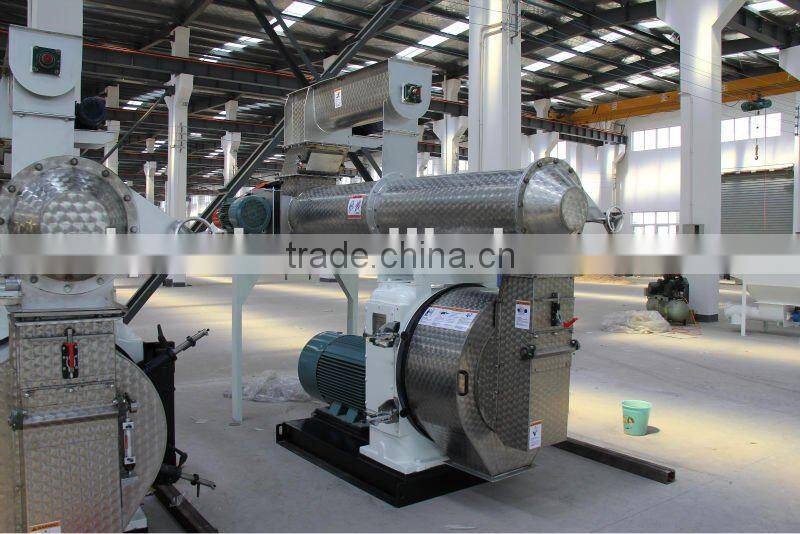

CE/GOST/SGS SZLH250/320/350/400/420/508/558 1-20t/h ring die pet feed pellet mill

Specifications

1.Professional production technology
2.ISO 9001:2000; CE, GOST, SGS
3.One year warranty
4.High output

CE/GOST/SGS SZLH250/320/350/400/420/508/558 1-20t/h ring die pet feed pellet mill



Features:



Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.

The drive part of the machineincluding motoroptimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noice.

Full stainless steel strengthening feed conditioner,adopts the frequency-conversion speed regulating control to guarantee quality pellet feed.

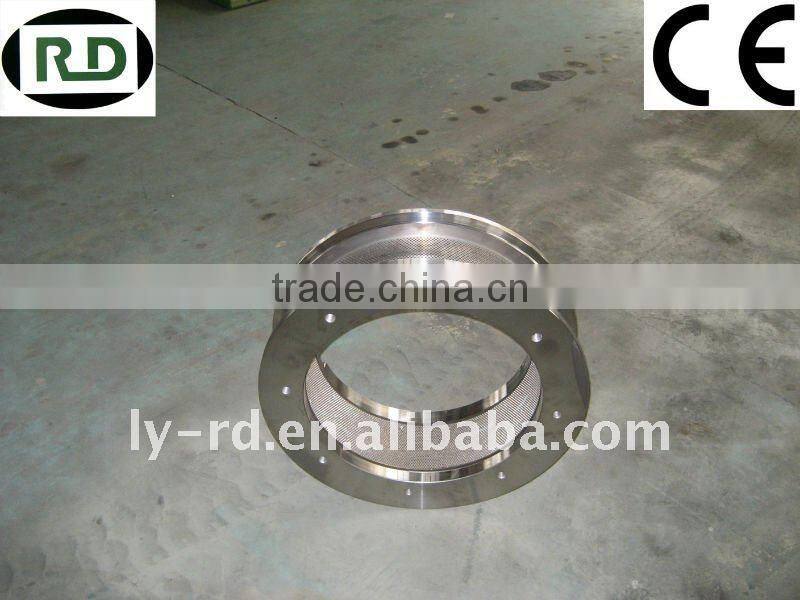

The alloy steel die is made by international advanced German gun drill and American vacuum furnace,has long service life and ensure smopthly pelleting and high quality.

The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.

Permanent magnet device of high performance.

Adopt international advaned pipeline system and inlet pressure regulator.

If it is used together witk N8 counter flow cooler, 150×2d rotary sifter and advanced fineteeth crumbler,the pellet feed can reach the highest quality.

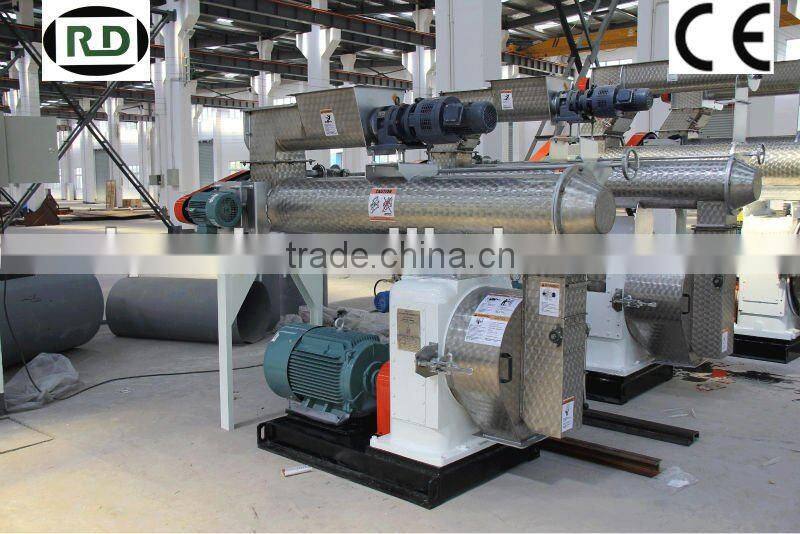

Pellet mill with two or three conditioners can be custom-made to produce high quality poultry,livestock and aquatic feed



Model	Capacity(t/h)	Main motor(kw)	Pellet size(mm)	Dia. Of die(mm)
SZLH300	1-4	22/30	2-10	300
SZLH320	2-6	37	2-10	320
SZLH350	3-8	55	2-10	350
SZLH400	5-15	75/90	2-10	400
SZLH420	8-18	90/110	2-10	420
SZLH508	10-20	110/132/160	2-10	508
