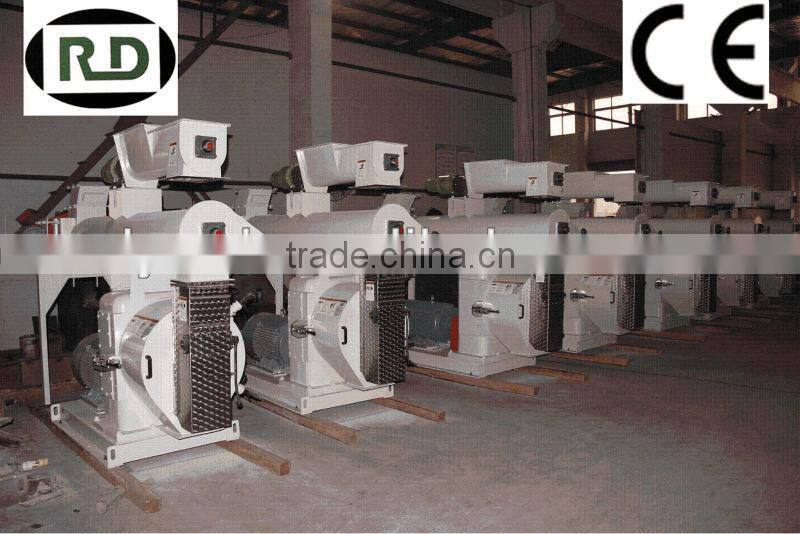

CE/GOST/SGS SZLH320/350/400/420/508 ring die aqua fish feed granulator

Specifications

1.One year warranty
2.ISO 9001:2000; CE, GOST, SGS
3.Gear drive
4.Ring die pellet

 We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.



The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.





 Features



1.Gear directly-connecting driving is adopted for high efficiency;

2.The bearing and oil seal in the main drive are imported,resulting in long service life and low equipment noise;



3. Feeder, conditioner and chute are made of stainless steel with long service life;

4. Feeder is variable speed controlled to meet different outputs requirements;



5. The conditioner is longer and thicker, built-in steam set could make steam condition cooking material fully, ensure the high quality of the feed;



6. It is with magnet and over load protection system, which can protect machine well during production;

7. New style S-shape spring coupling is adopted to obtain big offset travel and further smooth running;



8.It can be fitted multi-layer jacket condition or double differential conditioner so as to meet the different requirements of producing high quality shrimp feed;



9.The special technique dies and  shrimp feed knives make that the cropping is more average and the cut is more flat.



Main Technical Parameters:



Model Parameters	SZLH320-X	SZLH350-X	SZLH400-X	SZLH420-X	SZLH508-X
Output(t/h)	0.3-0.8	0.5-1.0	0.8-2.0	1.0-2.5	1.5-3.5
Power(kw)	37	55	75/90	90/110	110/132/160
