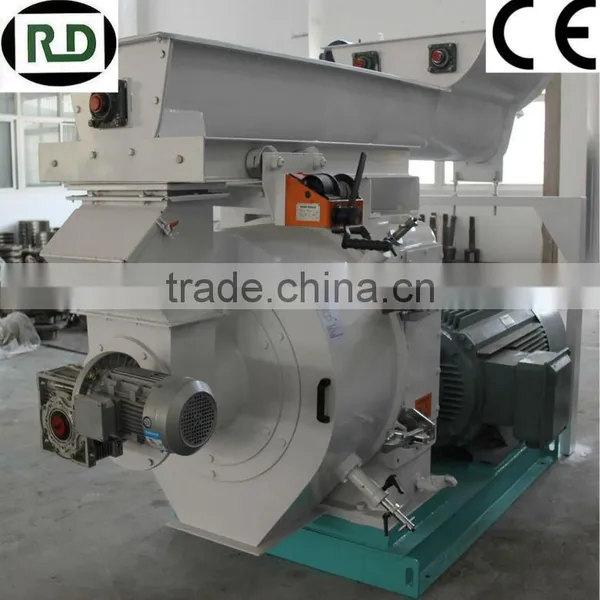

Purchase CE 2t/h RD508MX Stainless Steel Anti-blockage Feeder Biomass Wood Pellet Mill

Professional Real Manufacturer for wood pellet mill!

Hot sale! CE/GOST 2t/h RD508MX stainless steel anti-blockage feeder biomass wood pellet mill

RD508MX series DETAILS:

Main power:132kw

Capacity:1.5-2t/h

Conditioner power:5.5kw

Feeder power:2.2kw

Die diameter:508mm

Pellets size:6-12mm

 We are specialized in designing and manufacturing biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.

The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.

Features

1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm³;

3. Feeder, conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system, which protects the machine during production;

5. Feeder has a variable speed controller to meet different outputs requirements;

6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;

7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability and high quality;

8. The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make  slippery pellets of the highest quality.

Main Technical Parameters

wood pellet mill is used for saw dust,shavings, bamboo dust,etc.

Fuel for Burning(85-90%)

Hole 6/8/10mm:household stoves

Hole 8/10mm:industrial

Raw material :saw dust,shavings,wood, bamboo dust, etc

Biomass fuel pellet machine/pellet mill

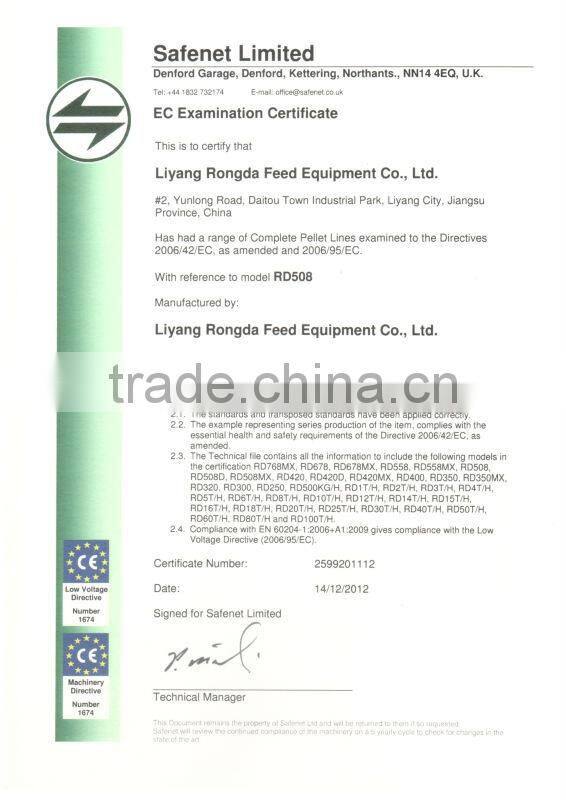

Our certificates:ISO9001:2000,CE,GOST,SGS

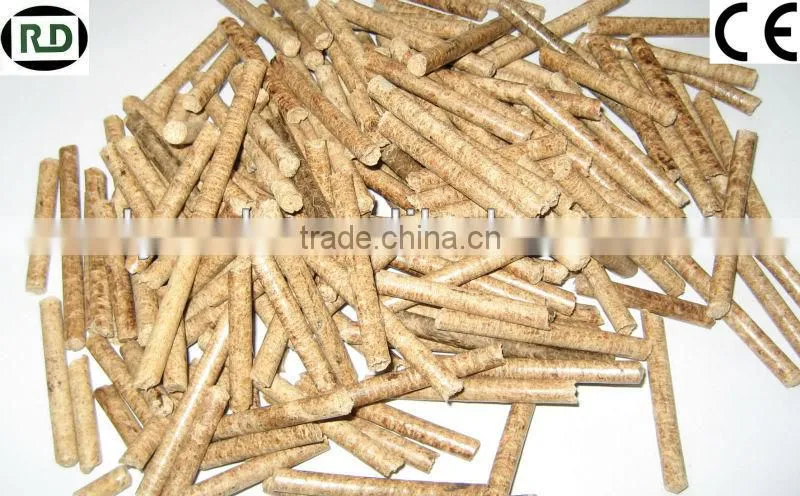

Finished biomass pellet by our pellet machine.

wood pellet making machine line Production Sequence

1. Peeling Process

2. Chipping Process

3. Drying Process

4. Grinding Process

5. Pelletizing Process

6. Cooling and Sieving Process

7. Packing Process

Frequently Asked Questions:

1. Q: Are you a trading company or a manufacturer?

    A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?

    A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.

You may also come to our city,Liyang city by High speed Railway,just 20-30mins.

3. Q: How long is your guarantee?

    A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.

4. Q: Will you send engineers to install the plant?

    A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

5. Q: Do you have some foreign customers using your equipment?

    A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.

Why choose from us?

A.Good reputation

Because of the good quality and credit,our company are with good reputation both at home and abroad.

B.Factory direct supply

This ensure the competitive price available and brand care.

C.Advanced technology adopted

American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.

 D.Best and reasonable structure design of the pellet mill

This make sure the durability of the machinery running.

Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
