Specifications
SFSP wide hammer mill1.High-efficient hammer mill.
2.CE,GOST,SGS approved.
3.Supply assessment
4.One year warranty
2013 hot sale! Hammer mills with eucalyptus wood skin after crushing
We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery, biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.
Features
- It is used for grinding raw materials by feed or biomass pelleting production line, also used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinded.
- It is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill.
- It can produce qualified aqua feed under full load with Φ 0.8, Φ 1 screen and reduce jam significantly. Both coarse and fine grinding can be realized without changing screens.
- The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.
Main technical parameters
|
Model (Width ) |
Dia. Of Rotor (mm) |
Width of Grinding Chamber (mm) |
Speed of Rotor (r/min) |
Power (kw) |
Output (t/h) |
Screen Hole (mm) |
SFSP56X36 |
560 |
360 |
2970 |
15-30 |
2-4 |
Φ 3MM |
SFSP56X40 |
560 |
360 |
2970 |
30-37 |
3-5 |
Φ 3MM |
SFSP112X30 |
1120 |
300 |
2970 |
55-75 |
9-12 |
Φ 3MM |
SFSP112X40 |
1120 |
400 |
2970 |
75-90 |
12-15 |
Φ 3MM |
SFSP 65x38 |
600 |
380 |
2970 |
22/30 |
1-2 |
Φ 1.2MM |
SFSP 65x45 |
600 |
450 |
2970 |
45/55 |
2-4 |
Φ 1.2MM |
SFSP 65x60 |
600 |
600 |
2970 |
55/90 |
2-5 |
Φ 1.2MM |
SFSP 65x75 |
600 |
750 |
2970 |
75-90 |
3-6 |
Φ 1.2MM |
SFSP 65x80 |
600 |
800 |
1480 |
110-132 |
5-8 |
Φ 1.2MM |
SFSP 65x100 |
600 |
800 |
1480 |
132-160 |
6-10 |
Φ 1.2MM |

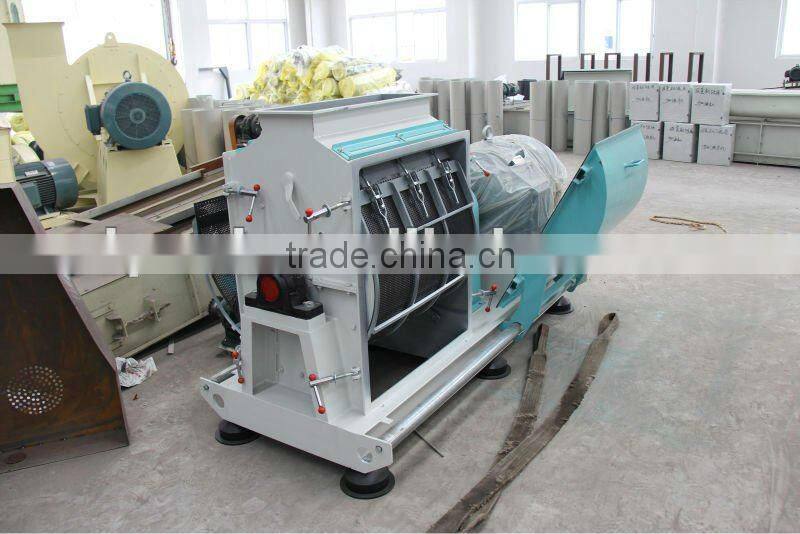

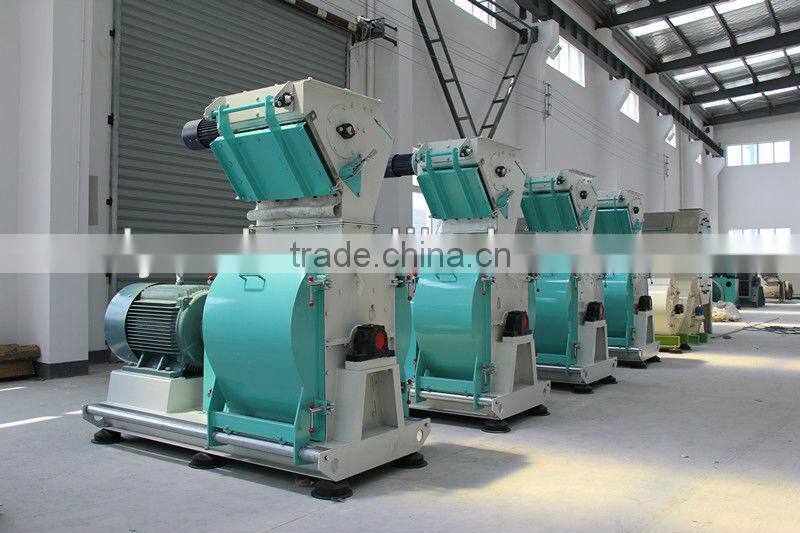

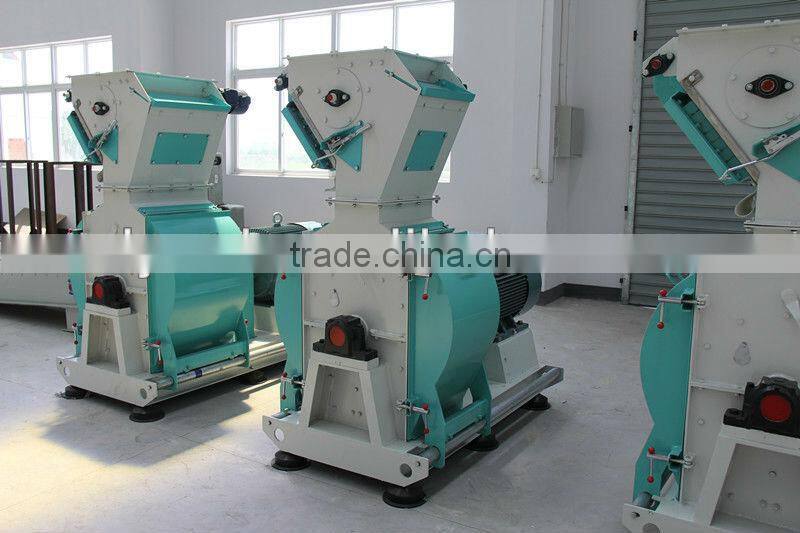

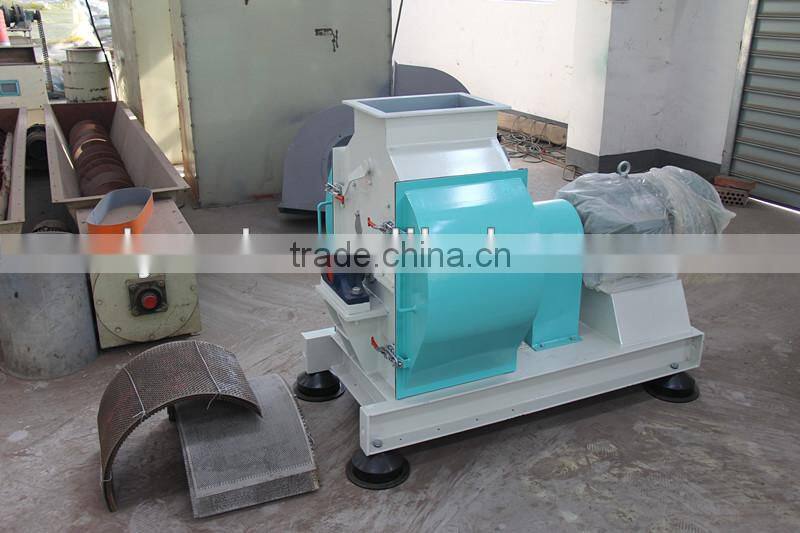

Wide hammer mill
Hammer mill with feeder
Animal feed production line
Production Sequence
1. Receiving and pre-cleaning Process
2. Grinding Process
3. Proportioning and mixing process
4. Pelleting Process
5. Sifting and cooling Process
6. Bagging Process
Delivery process
Company introduce
Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
The Rongda company is the one for many yearsspecialized in biomass.....
Certificate
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you illustrated catalogues.
Why buy from us?
1.Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2.Delivery fast -----Goods be sent out within 15 to30 days based on order quantity.
3.Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
