Home > Products > Hammer mill and Mixer > Wide hammer mill SFSP series with CE GOST SGS
Wide hammer mill SFSP series with CE GOST SGS
- 30 Set / Sets per Month
- Shanhai
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | RD |
Model Number: | SFSP series | Type: | Other, Chaff Cutter, Wide hammer mill | Voltage: | 380V 50Hz |
Power(W): | 2.2-18.5 | Certification: | CE,GOST,SGS | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery, biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.
Features
- It is used for grinding raw materials by feed or biomass pelleting production line, also used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinded.
- It is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill.
- It can produce qualified aqua feed under full load with Φ 0.8, Φ 1 screen and reduce jam significantly. Both coarse and fine grinding can be realized without changing screens.
- The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.
Main technical parameters
Model (Width ) | Dia. Of Rotor (mm) | Width of Grinding Chamber (mm) | Speed of Rotor (r/min) | Power (kw) | Output (t/h) | Screen Hole (mm) |
SFSP56X36 | 560 | 360 | 2970 | 15-30 | 2-4 | Φ 3MM |
SFSP56X40 | 560 | 360 | 2970 | 30-37 | 3-5 | Φ 3MM |
SFSP112X30 | 1120 | 300 | 2970 | 55-75 | 9-12 | Φ 3MM |
SFSP112X40 | 1120 | 400 | 2970 | 75-90 | 12-15 | Φ 3MM |
SFSP 65x38 | 600 | 380 | 2970 | 22/30 | 1-2 | Φ 1.2MM |
SFSP 65x45 | 600 | 450 | 2970 | 45/55 | 2-4 | Φ 1.2MM |
SFSP 65x60 | 600 | 600 | 2970 | 55/90 | 2-5 | Φ 1.2MM |
SFSP 65x75 | 600 | 750 | 2970 | 75-90 | 3-6 | Φ 1.2MM |
SFSP 65x80 | 600 | 800 | 1480 | 110-132 | 5-8 | Φ 1.2MM |
SFSP 65x100 | 600 | 800 | 1480 | 132-160 | 6-10 | Φ 1.2MM |

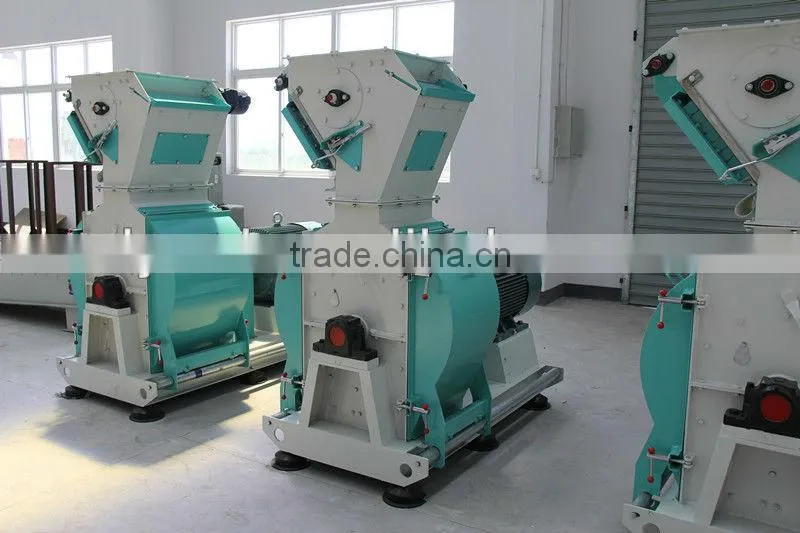

Wide hammer mill
Hammer mill with feeder
Animal feed production line
Production Sequence
1. Receiving and pre-cleaning Process
2. Grinding Process
3. Proportioning and mixing process
4. Pelleting Process
5. Sifting and cooling Process
6. Bagging Process
Company introduce
Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
The Rongda company is the one for many yearsspecialized in biomass.....
Certificate
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you illustrated catalogues.
