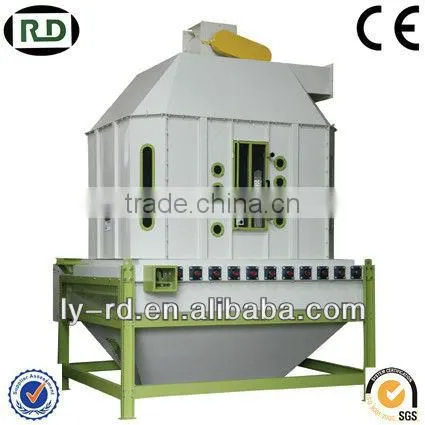

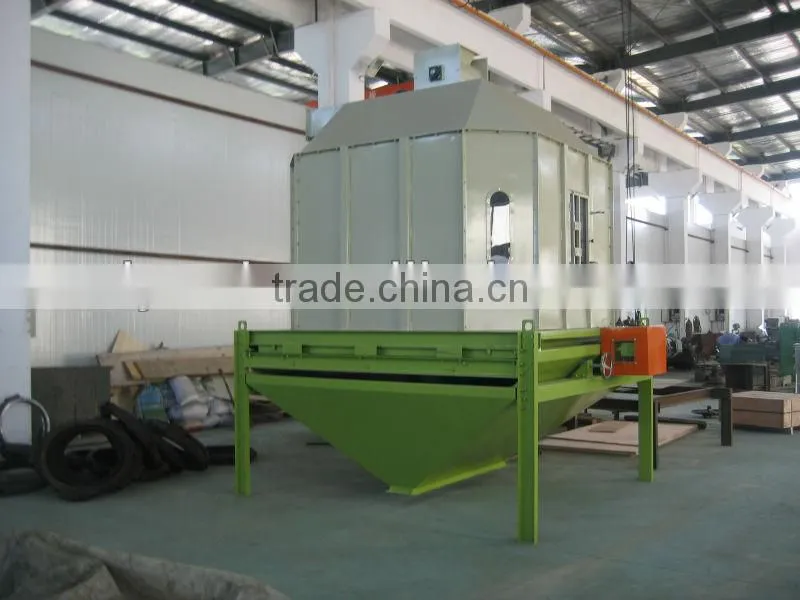

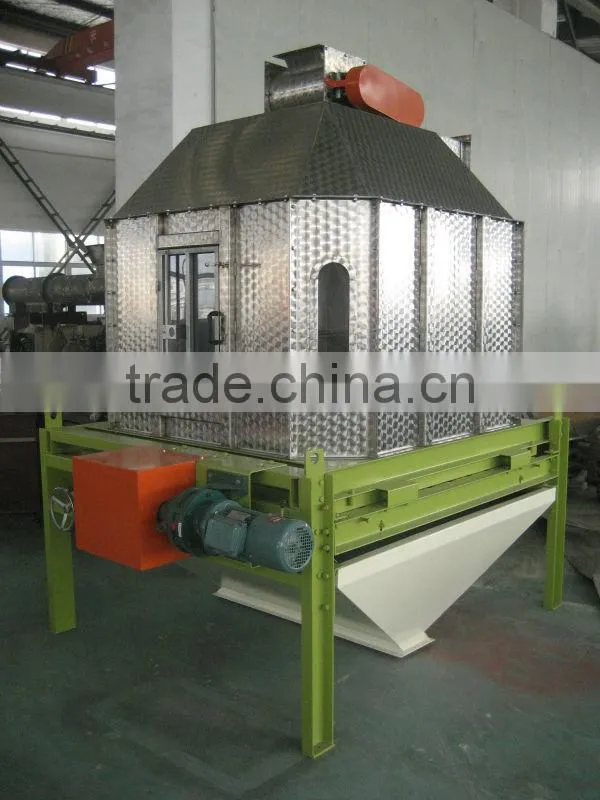

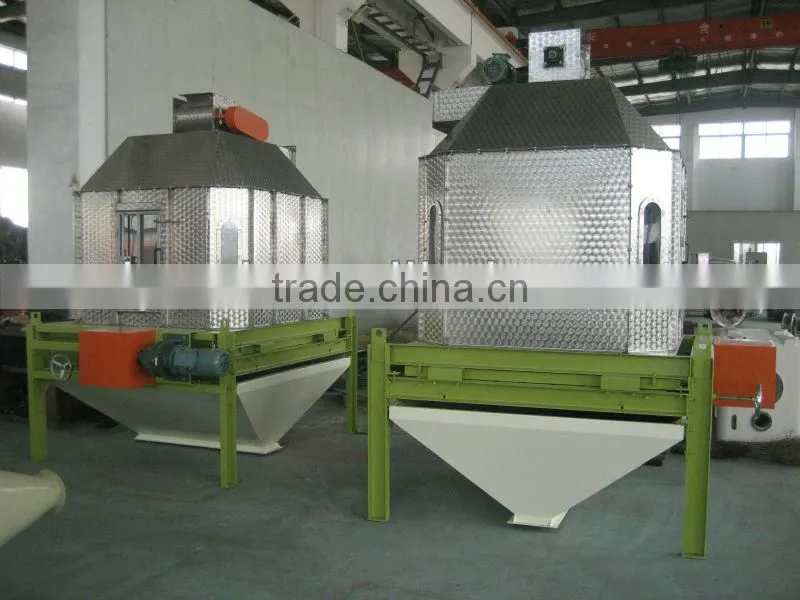

SKLN Series Cooling Equipment With Counterflow Cooler/swing Cooler
- Shanhai
- T/T Credit Card
You May Like
-
Pellet Cooling Equipment With CE GOST SGS With High Efficient
-
SKLB Series Cooling Equipment With Swing Cooler
-
Own Factory SKLN1.5 Floating Feed Swing/counterflow Cooler
-
SKLN2.5 Feed Pellet Cooling System
-
Grinding Stainless Steel SKLN4 Counterflow Cooler
-
Pellet Mill Cooler SKLN6 in the Feed Pellet Line
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | RD | Model Number | SKLN series | |
| Type | Other, cooler, swing or counterflow cooler | Voltage | 380V 50Hz | |
| Power(W) | 2.2-18.5 | Certification | CE,GOST,SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
SKLN series counterflow cooler1.High-efficient cooler
2.CE,GOST,SGS approved
3.Supply assessment
4.One year warranty
2013 hot sale! cooling equipment with counterflow cooler/swing cooler
SKLN 1.5/2.5/4/6/8
Features
1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
2. Swing discharger has smooth and reliable discharging, low residue;
3. Low power consumption, easily operation;
4. Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
5. It is suitable for pellet cooling.
Main technical parameters
Model Parameters | SKLN1.5 15×15 | SKLN2.5 18×18 | SKLN 4 20×20 | SKLN6 24×24 | SKLN8 26×26 | ||
Cooling Volume (m3) | 1.5 | 3 | 4 | 6 | 8 | ||
Capacity (t/h) | 3 | 5 | 10 | 15 | 20 | ||
Cooling Time (min) | less than 10-15 | ||||||
Product Temp. after cooling | Not 3~5°C higher than ambient temperature | ||||||
Air Absorbing Volume (m3/min.t) |
34 | ||||||
Power (KW) | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | ||
Power of Airlock (KW) | 0.55 |
0.75 00.75.55 | 0.75 | 1.1 | 1.1 | ||
Cooling equipment from Rongda
Extrusion-pntd
Ring die
Animal feed production line
Production Sequence
1. Receiving and pre-cleaning Process
2. Grinding Process
3. Proportioning and mixing process
4. Pelleting Process
5. Sifting and cooling Process
6. Bagging Process
Delivery process
Company introduce
Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
The Rongda company is the one for many yearsspecialized in biomass.....
Certificate
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you illustrated catalogues.
Why buy from us?
1.Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2.Delivery fast -----Goods be sent out within 15 to30 days based on order quantity.
3.Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
