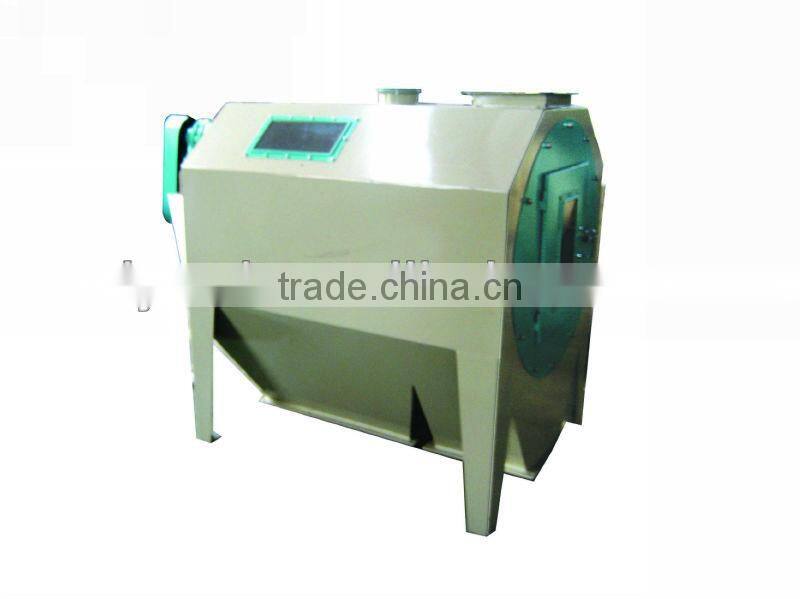

Hot Sale Pre-cleaning Machine With SCY Series

Hot Sale Pre-cleaning Machine With SCY Series photo-1
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
RD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanhai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name RD
Model Number SCY series
Type Feed Pellet Machine
Voltage 380V 50Hz
Power(W) 2.2-18.5
Certification CE,GOST,SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Pre-cleaning machine
1.High-efficient pre-cleaning machine
2.CE,GOST,SGS approved
3.Supply assessment
4.One year warranty



2013 hot sale! Pre-cleaning machine with SCY series

Features

1. With good cleaning effect and high impurities removing efficiency. The efficiency of removing big impurities is higher than 99%. The big impurities do not contain complete granules or clean materials;


2. Horizontal cantilever screen cylinder is adopted. Screen cylinder is divided into feeding section and discharging-sieving section. The use of different combination of screen holes can get ideal sieving efficiency;


3. Adverse feeding type is adopted. The discharging section of screen cylinder is fitted with screw, which increases actual sieving length, reaches sufficient sieving effect and effectively prevents impurities from carrying clean materials;


4. The structure of inner sieving and outer brush cleaning is adopted. The fiber impurities and paddy straw are discharged in the shape of ball through guide screw and are cleaned automatically and reliably;


5. It has low power, high capacity, smooth and reliable running, convenient screen replacing and maintenance, compact structure and less floor space;


6. It is widely used for pre cleaning of raw materials in the industries of feed, oil, flour, rice milling, grain warehouse, food, etc.



Main technical parameters

Model

SCY50

SCY63

SCY80

SCY100

SCY120

Capacity(t/h)

10-20

20-40

        40-80

80-100

≥100

Power (kw)

0.55

0.75

           1.1

1.5

3



Model

SQLZ60*50*100

      SQLZ420*320*660

SQLZ560*320*840

Capacity(t/h)

10

                15-20

25-30

Power (kw)

5.5

                   11

                       11

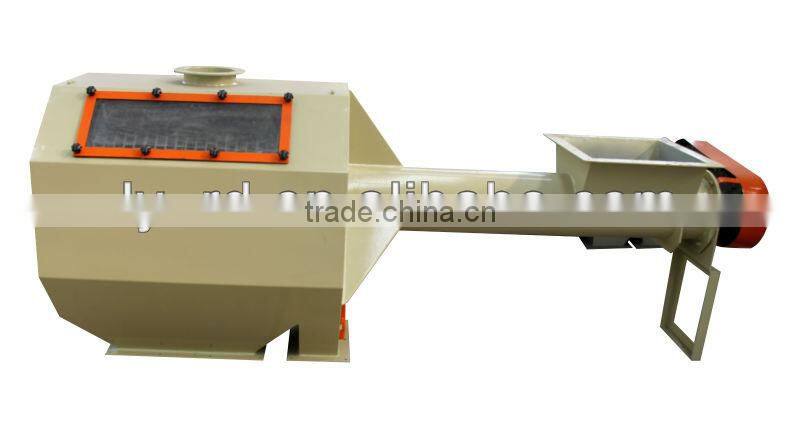

Pre-cleaning machine from Rongda

Hot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY series

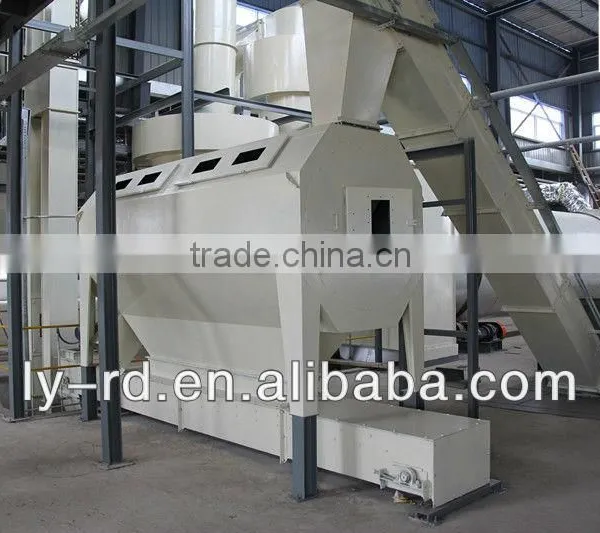

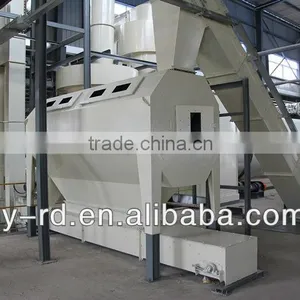

Animal feed production line

Production Sequence

 1. Receiving and pre-cleaning Process

 2. Grinding Process

 3. Proportioning and mixing process

 4. Pelleting Process

 5. Sifting and cooling Process

 6. Bagging Process



Hot sale pre-cleaning machine with SCY series





Hot sale pre-cleaning machine with SCY series

Delivery process



Hot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY series

Hot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY series



Company introduce

    Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
   The Rongda company is the one for many yearsspecialized in biomass.....

Hot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY series

Certificate

Hot sale pre-cleaning machine with SCY series

Hot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY seriesHot sale pre-cleaning machine with SCY series
