Specifications
china environmental lime kiln1. simple structure
2. reliable and stable performance
3. widely usage
4. with certificate

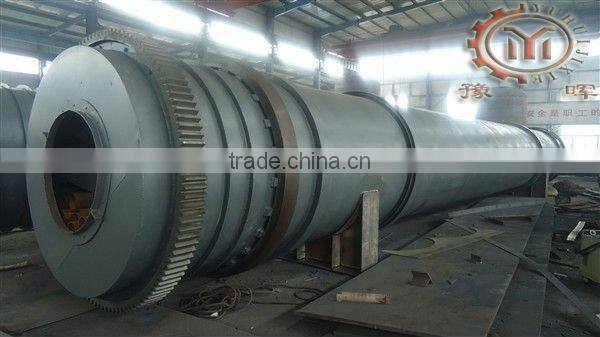

china environmental lime kiln hot sell to Mid-east
1. lime kiln structure:
lime kiln is composed of cylinder, gears, support device, kiln liner and kiln tail sealing equipment, kiln head hood and combustion.
Cylinder as heated pivoting part, made of high-quality carbon steel plate, is supported on the support device by tyre, and there is mechanical or hydraulic pressure catch wheel on the first or some gear in order to control the turning of cylinder.
Gearing gyrate according to process-required rotating speed by ring gear in the middle of cylinder. Because of the need of installation or maintenance, the bigger rotary kiln has auxiliary gears, which makes cylinder gyrate more slowly.
To prevent cold air come in and dust overflow, the reliable kiln tail and head sealing equipment is installed on feed and discharge end.
2. lime kiln application:
lime kiln is the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
3. lime kiln main technical data:
Specifications | Kiln demensions | Output(t/h) | Rotation speed(r/min) | Moto power(kw) | Weight | Note | ||
Diameter | Length | Obliquity | (t) | |||||
ø1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | ---- |
ø1.6*36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | ---- |
ø1.8*45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | ---- |
ø1.9*39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | ---- |
ø2.0*40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | ---- |
ø2.2*45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | ---- |
ø2.4*40 | 2.4 | 40 | 3.5 | 6.2-6.8 | 0.39-2.44 | 55 | 136.5 | ---- |
ø2.5*40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | ---- |
ø2.5*50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ---- |
ø2.5*54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ---- |
ø2.7*42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ---- |
