Automatic Packing Machine for Powder Filling and Sealing

Specifications

LRB-VD52  Vertical Packing Machine

Advantages of the packing machine

1. This machine is linkage control, automatic feeding, no packing without materias, work sable.

2. Material conveyor design simplicity, work stable and quite.

3. The platform is solid will, so that it will not affect the  measurement acuracy of the combination weigher.

4. The whole packing machine can be controled by only one worker

5. It can match with other equiments, such as production line, metal detect, check weigher, case packer, save labor cost.

6. This machine is both domesic and foreign best sell product  in the past 10years.

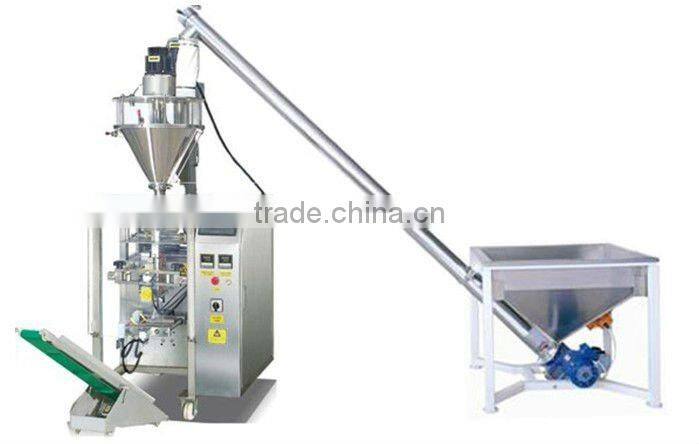

                                                                                       Picture of full machinery

Main parameter

                                                                     Single machine and its components

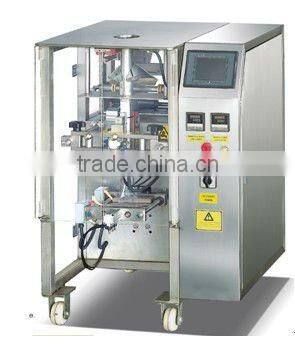

1. LRS-VD32

Vertical automatic packaging machine

l  Features

* Famous brand PLC control system,wide version touch screen, convenient to operate..

* Servo film pulling system, Pneumatic horizontal sealing.

* Perfect alarm system to reduce waste;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;

* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

l Technical parameter

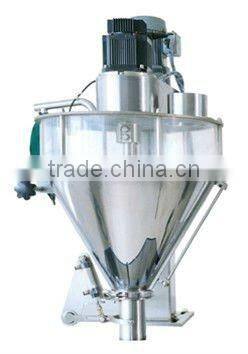

2. LR- screw metering machine

l Features

* It completes measuring, bagging, filling automatically. Auger filler drove by servo motor to measure and fill materials.

* Suitable to package free-flowing or poor- flowing powder.

* Stainless steel 304 contact parts.

l Technical specification

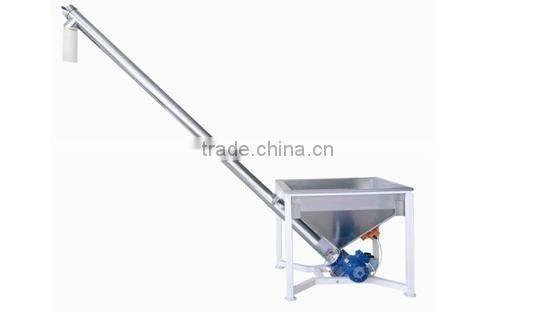

3,LR-D2 screw infeed conveyor

l Features

This machine adopt screw conveying material, and the storage can be vibrated . it is suitable for conveying various powder and little pellets

l Technical specification:

Lifting capacity 1-10 ton/hour

Lifting height   3m-20m

Lifting volume   3 cubic meter/hour

Specification   Making according to the specifications of the buyer

Material       Carbon steel, stainless steel

Power   :   750w

4. LR-A3 Finished products conveyor

l Features

The machine can send the packed finished bag to after-package detecting device or packing platform.

l Specification]

Lifting height  0.8-1.5m

Feeding speed 30mminute

Dimension 2110×340×500mm

Voltage 220V/45W

If you have any requirement, don’t hesitate to get touch with US pls. All kinds of enquiry of you are welcomed.
