Specifications
Soy protein food equipment1.high output&capacity
2.low power consumption
3.simple operation
4.excellent performance
Soya / Peanut Protein Food Machine
Description:
Soybean protein food processing line takes soybean and peanut as main raw materials. After milling, mixing, tempering, high-temperature, high-pressure, high-cutting, then the spherical protein molecules change into chains and becomes layer fiber structure. It is similar with the muscle state of the animal and without the smell of beans.
Raw Material:soya, peanut, soybean
Capacity: SLR65-5 260KG/H SLR85-4 500KG/H
Consumption: SLR65-5 68.5kw SLR85-4 109.25kw
Machine Surface: Stainless Steel
Flow Chart:
Mixer-----Screw Feeding-----Conditioner-----Extruder-----Air Conveyor-----Oven
Technical Parameter:
Technical Parameter of 260kg/h of standard configuration
|
Model
Parameter |
Mixer |
Screw feeding |
Conditioner |
Extruder |
Air conveyor |
Five-layer oven |
Installed capacity (kw) |
4 |
1.1 |
5.5 |
57.75 |
1.1 |
45(heating) |
Power consumption |
3 |
0.75 |
4 |
30 |
0.75 |
30(heating) |
Output |
300 kg/h |
300 kg/h |
300 kg/h |
260 kg/h |
300 kg/h |
280 kg/h |
Size (m) |
1×0.7×0.14 |
3.3×0.8×2.3 |
1.9×1.1×2.2 |
4.7×9×1.9 |
3.5×0.6×5.5 |
10×1.3×2.7 |
Technical Parameter of 500kg/h of standard configuration
|
Model
Parameter |
Mixer |
Screw feeding |
Conditioner |
Extruder |
Air conveyer |
Seven-layer oven |
Installed capacity |
4 |
1.1 |
5.5 |
130 |
2.2 |
45 (heating) |
Power consumption |
3 |
0.75 |
4 |
70 |
1.5 |
30 (heating) |
Output |
300 kg/h |
500 kg/h |
500 kg/h |
500 kg/h |
500 kg/h |
500 kg/h |
Size (m) |
1×0.7×0.14 |
3.3×0.8×2.3 |
1.9×1.1×2.2 |
4.7×9×1.9 |
3.5×0.6×5.5 |
8×1.3×2.4 |
After-sale Service:
a. 12 months free warranty
b. offer onsite installation and debugging and personal training
c. regular visits
d. all machines we offered are lifetime maintenance
e. accessories are guaranteed to change in 12 months and sold at cost price after 12 months.

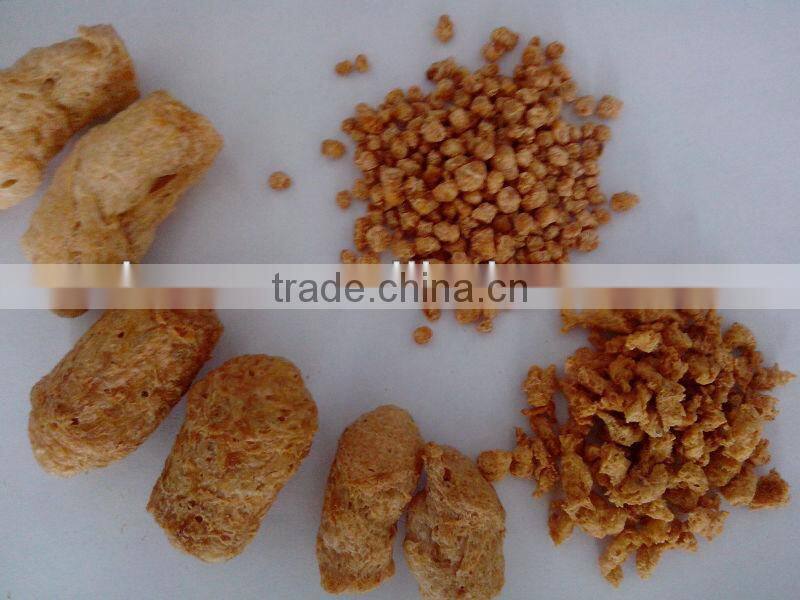

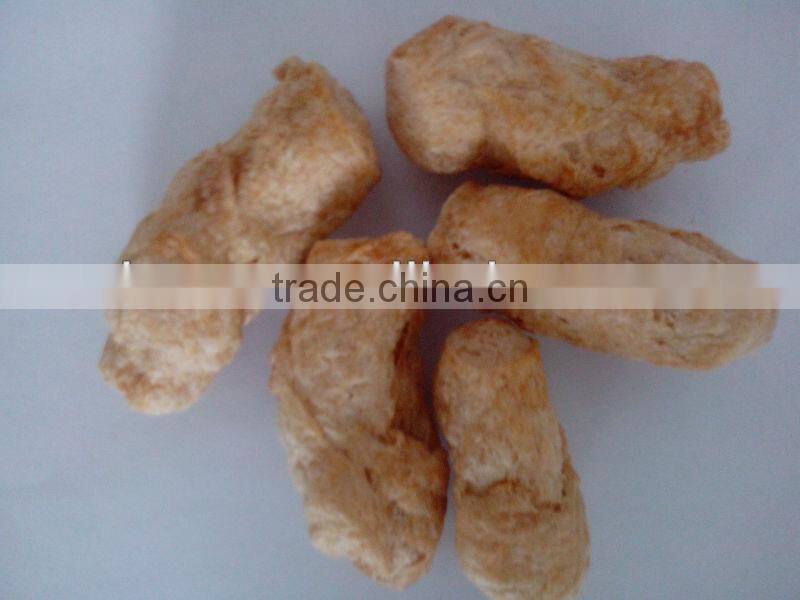

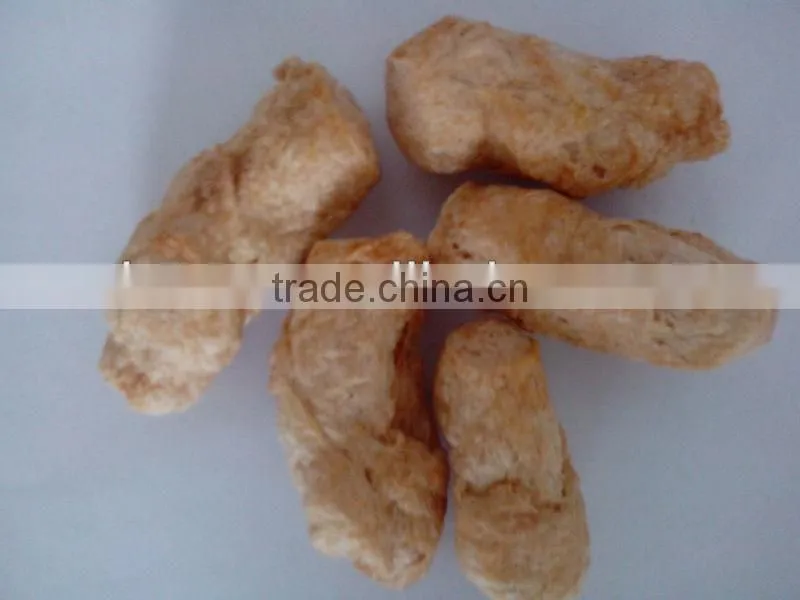

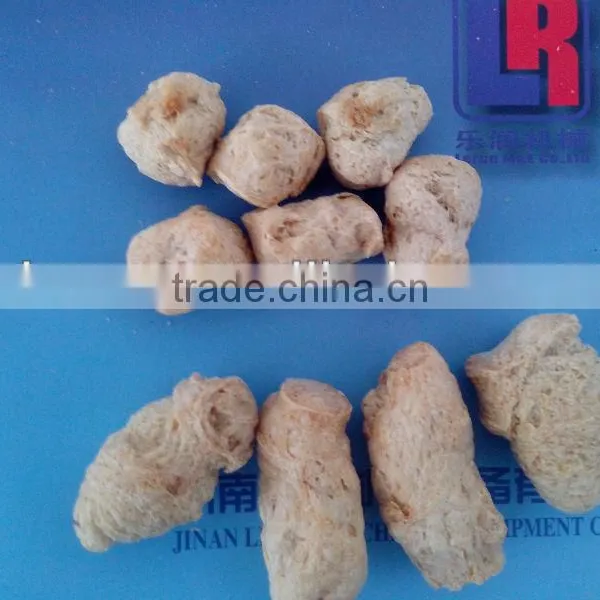

Sample Photos:
