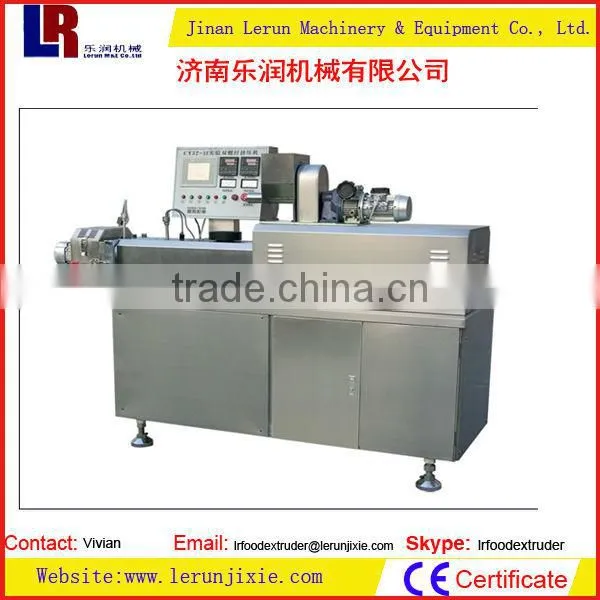

University Lab Extruder For Snack Food

University Lab Extruder For Snack Food photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LR
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name LR
Model Number LRSYJ32
Application Other, snack food fomular
Voltage 380V 415V 440V
Power(W) 20kw
Weight 500KG
Dimension(L*W*H) 1600 x 800 x 1500mm
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Lab Extruder
lab extruder is special for the examination of inflation technical of food in the special university.

                                                 University Lab Extruder For Snack Food



Double-screw Extruder Inflating Snacks Food Processing Line is a new type of extruding food processing line studied and developed by ourselves on the basis of learning from advanced technology in the world so that its technical performance and quality of products both reach to the most advanced in the world. This line will finish mixing, extruding, shaping, core-filling, cutting, spraying and producing in one-pass operation automatically. This line features lots of types, flexible collocation, extensive applied materials, various products and easy operation.




Main features



 1. Special disputer case and bearing, to improve the extruder performance



2. Multipoint temperature control and pressure measure point



3. Advanced touching screen, display a lot of real time parameters and record working status of equipment and print the numbers.



Specifications:


Snacks machine
Extruded snack machine
corn snacks machine
inflating snacks machine
Puffy snacks machine



 lab extruder Technical parameter

1

Motor power

5.5KW

14

Temperature precision

20-300 degree

2

Motor timing

Frequency conversion

15

Control mode

Concentrate control

3

Screw diameter

 32

16

Pressure range

0~30MPa

4

Screw centre distance

26mm

17

Pressure precision

1MPa

5

Screw material

38CrMoAl

18

Pressure point

1

6

Rotate speed range

0~550rpm

19

Lubricate mode

Inside Cyc

7

Screw form

Toy bricks form

20

Feed power

0.18KW

8

Length-diameter ratio

11.6/ 12.7/23

21

Feed control

Frequency conversion

9

Rev speed range

0~550rpm

22

Cutter control

Frequency conversion

10

Temperature control

Electric heat

23

Cutter power

0.25KW

11

Tem precision

-1-- +1

24

Size

1.8 x1.0 x1.4 (m)

12

Tem Test point

4

25

Capacity

20 kg/h
