Specifications
Grain Puffed Snacks Machines1.Twin screw extruder
2.Capacity:100-150kg/h
3.Extruded and inflated technology
4.CE
Grain Puffed Snacks Machines
Details of whole line:
snacks food machinery uses corn, rice, flour etc. grains powder as main materials, inside core filling material can be chocolate, cheese, milk powder and pea nut jam etc. These kinds of core filling snacks are popular as breakfast,
usual leisure food in spare time.
Specification:
1) Installed capacity: 45kw
2) Power consumption: 35kw
3) Capacity: 100-160kg/h
Raw material: Rice, corn, wheat flour etc. grain powder.
Flowchart:Mixing → extruding → core filling → cutting → conveyor →drying → flavoring → packing
Equipment list:
1) Mixer: 1
2) LRS65-III Double-screw Extruder: 1
3) Core filling machine: 1
4) Cutting machine: 1
5) Hoister: 1
6) Roasting Oven: 1
7) Automatic flavoring line: 1
The LRS extrusion processing line makes the material be modified by the high temperature and high pressure with the twin screws , through mould leak the pression to produce the inflation effection,then through mould,roast,spray the oil or flavour on the surface of food to get the final product.
Parameter:
|
parameter |
Mixer |
Screw conveyor |
Extruder |
Core filler |
Shaper |
Hoister |
Three-layer oven |
Hoister |
Oil sprayer |
Roller |
Model |
BFJ-I |
SLJ-I |
LRS65-III |
JXJ-III |
ZXJ—II |
TSJ |
HGD-3-II |
TSJ |
DPY—II |
SGT--IV |
Installed capacity |
3 |
1.1 |
34.75 |
4.12 |
1.5 |
0.75 |
30 |
0.75 |
2.37 |
1.5 |
Power (kw) |
2 |
1.1 |
20 |
2 |
0.7 |
0.5 |
20 |
0.4 |
2 |
1.5 |
Output (kg/h) |
150 |
300 |
130-150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
Dimension (m) |
0.9×0.6×1.2 |
2.5×0.5×2 |
2.5×0.8×2.3 |
0.9×0.6×1.6 |
1×0.65×1.1 |
1.3×0.5×0.6 |
5×1.3×2.1 |
1.3×0.5×0.6 |
1.0×0.6×0.8 |
2.1×0.8×1.3 |
Main extruder & Package:

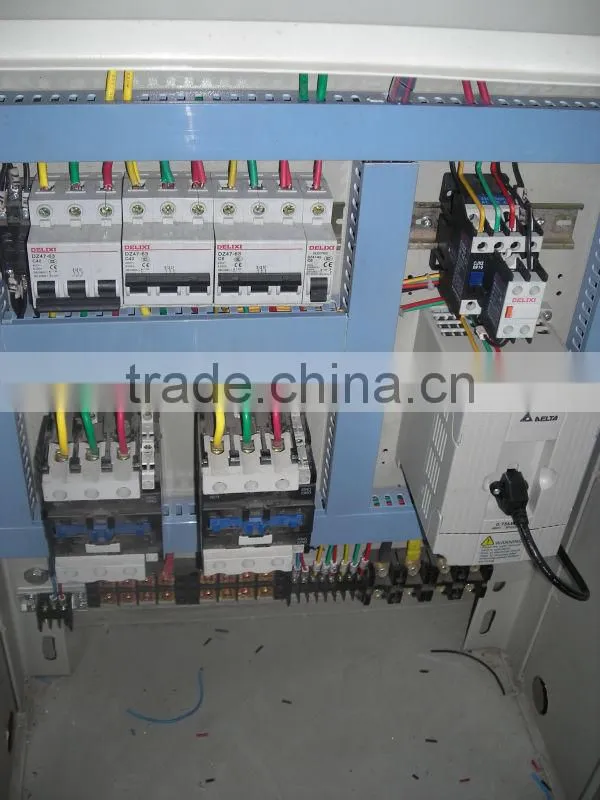

Conbox & Electric component :
