Specifications
Core Filling Process Line1.Twin screw extruder
2.Capacity:100-120kg/h, 150~180kg/h
3.Extruded and inflated technolony
Core Filling Inflating Snacks Process Line
1. Description: A typical co-extrusion snacks line includes batch mixer and screw feeder, twin screw extruder and forming equipment, filling stuff equipment, Belt dryers and coating drum.
2. Raw materials: the soft filling materials include chocolate, cream, jelly, fruit paste.
the ingredients of the outer part is generally wheat, a variety of other cereal grains can also be progressed such as rice, corn, barley, rye, sorghum, etc.
3. Products:Variety shapes are available for the core-filled food, including pillows, tubes, bars, long and short ovals, heart shape by adjusting the roller in the shaperAlso can produce snacks cereals ect by adjusting the mould from extruder
4. Capacity: 100~120kg/h 150~200kg/h

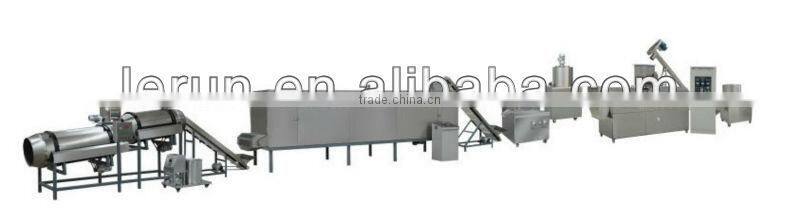

5. Flow chart: Mixing system---Extrusion system----Core filling and shaping system---Drying system----Flavoring system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines Materials: All the machines are made by stainless steel
8. Technical parameters:
Model |
Installed power |
Real power |
Output |
Dimension |
LRS65-IIIA |
81.5kw |
53kw |
100-150kg/h |
21000x1200x2200mm |
9. Sample pictures:

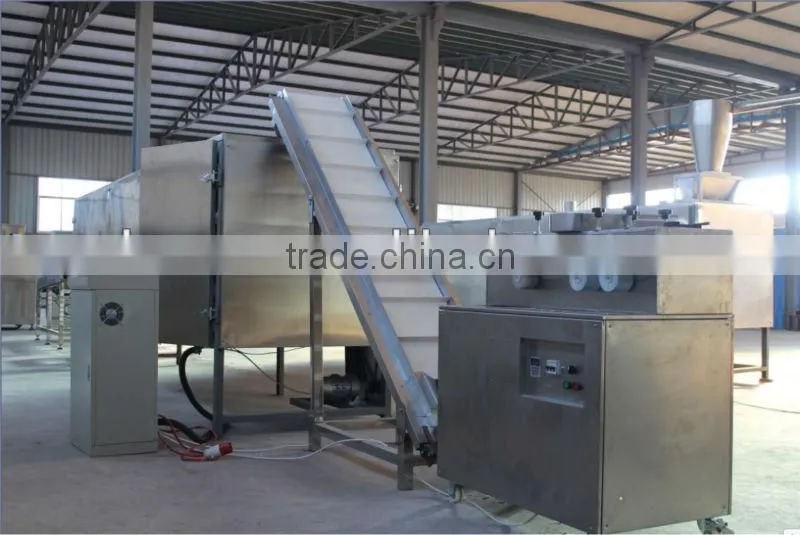

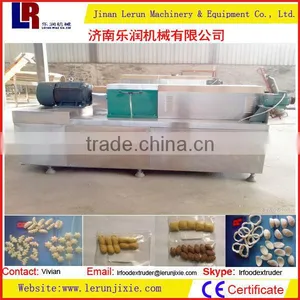

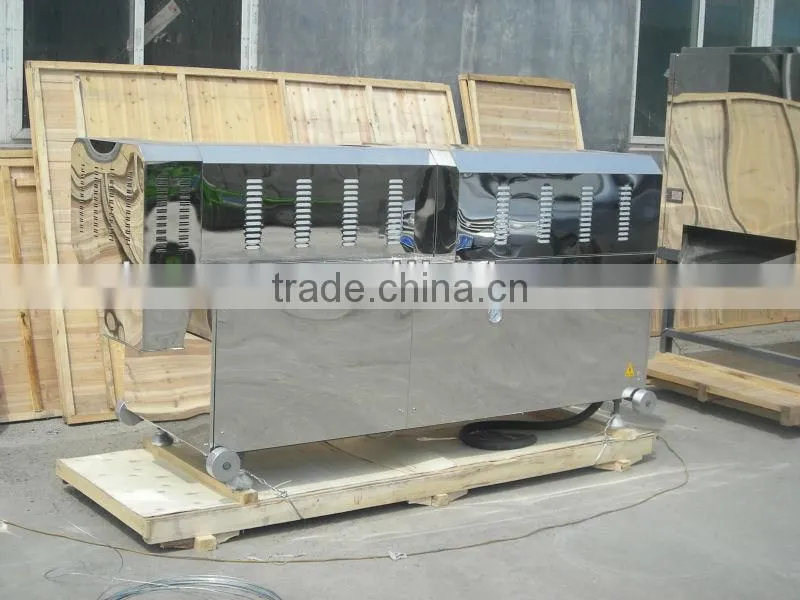

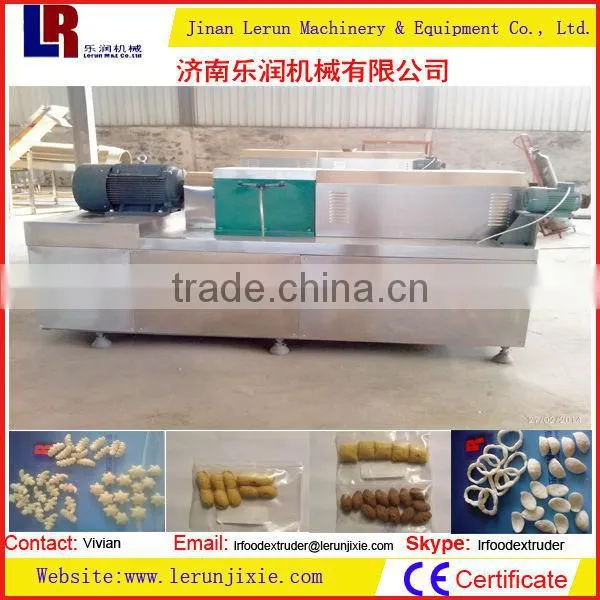

10.Extruder machine & Package photo show:
