Specifications
Snack Food Oven1can dry different foods.
2high automation and stable per-formation
3.longer using life
4. Electric oven

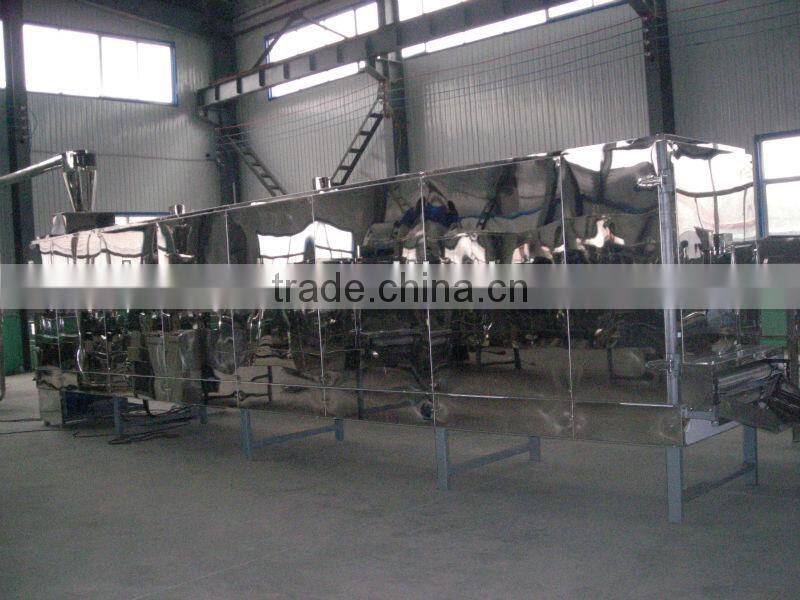

Snack Food Oven
1. Description:
These series of roasting oven are widely used, it is used for drying all kinds of stick, piece, grain etc. Shape inflating snack food, the user can choose different types of dryer according to layer, length or energy.
The whole machine is compact design, logical and easy operation.
Driving system adopts double pitch roller chain driving, circulating drying, and balanced running, never jam.
Drying temperature and time can be adjusted, effect of drying is capitally.
With high efficiency fuel saving system, reasonable heat distribution, material be heated equally, low energy but large output.
A frequency converter can adjust the drying time for the product speed.
Variable speed of the belt is available. Electricity heating is heated by infrared heating pipe
by electricity.
There is a convenient set for spraying lubricating oil to the bearings.
For using gas or diesel oil as energy resource, we use International Brand Burner, BALDUR S.P.A.
It is in good quality and safe.
2. Products: This machine can be used to dry soya nuggets, cereal, snack foo, pet food , fish food etc.
3. Capacity: 240kg/h, 500kg/h, 1ton/h
4. Voltage in China:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
5. Machines materials:All the machines are made by stainless steel
8. Technical Parameters
Model |
Electric(gas/diesel) Consumption |
Heating Temperature |
Output
|
Dimension
|
Applied Products |
Three-layer electric oven |
30kw/h |
180°C |
150kg/h |
5400x1300x2000mm |
Puffed snacks, breakfast cereals |
Five-layer electric oven |
60kw/h |
180°C |
250kg/h |
5800x1300x2400mm |
Puffed snacks, breakfast cereals |
Three-layer gas/diesel oven |
4.8-10 m³/h(gas) 5.1-10kg/x (diesel) |
180°C |
150kg/h |
6500x1600x2000mm
|
Puffed snacks, breakfast cereals |
Three-layer gas/diesel oven(longer) |
16-22 m³/h (gas) 7-14kg/x (diesel) |
180°C |
250kg/h |
8000x1800x2150mm |
Puffed snacks, breakfast cereals |
Five-layer gas/diesel oven |
16-22 m³/h (gas ) 7-14kg/x (diesel) |
180°C |
250kg/h |
6000x1500x2400mm |
Puffed snacks, breakfast cereals |
Seven-layer dryer |
48kw/h |
90°C |
100kg/h |
9000x2400x3000mm |
extruded pellets |
Rotary dryer |
45kw/h |
180°C |
250kg/h |
6500x1600x2000mm |
Puffed snacks, breakfast cereals |
