Tmr Mixer / Feeder Mixer Wagon

Name: Tmr Mixer / Feeder Mixer Wagon
Brand: STAR Series
SKU: 141242412
Availability: InStock

Starmax Tarim Makinalari Sanayi Ve Ticaret Anonim Sirketi

US$ 3,500 - 25,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Izmir, Turkey

Brand Name:

STAR Series

Payment & Shipping

Payment Methods:

Port of Shipment:

Izmir Turkey

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Izmir, Turkey

Brand Name STAR Series

Model Number Tmr Mixer / TMR Feed Mixer / Feed Mixer Wagons

Type Mixer

Voltage Tractor Powered

Power(W) 37 / 50

Dimension(L*W*H) 5 x 2 x 2.2 m

Weight 5000 kg

Certification TSE, CE

Warranty 2 years

After-sales Service Provided Engineers available to service machinery overseas

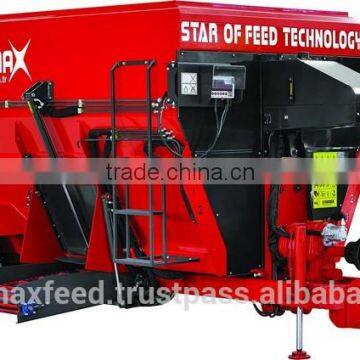

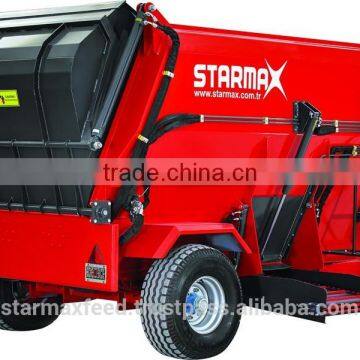

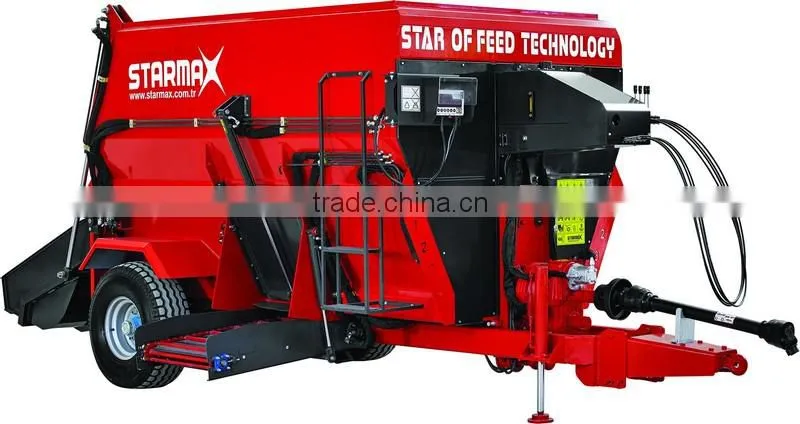

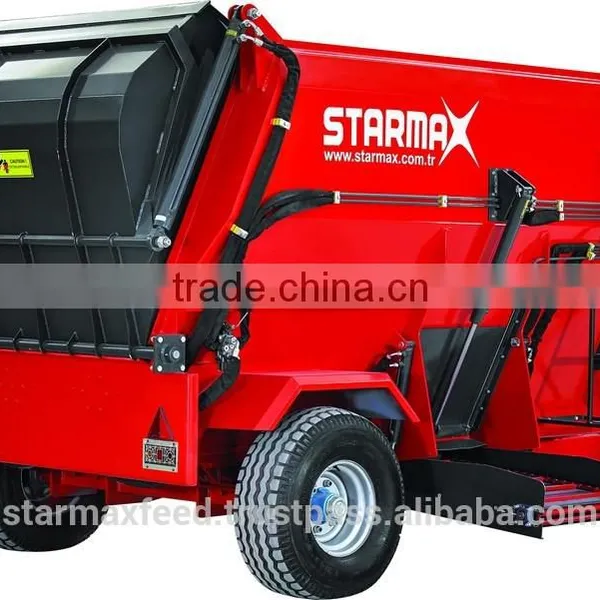

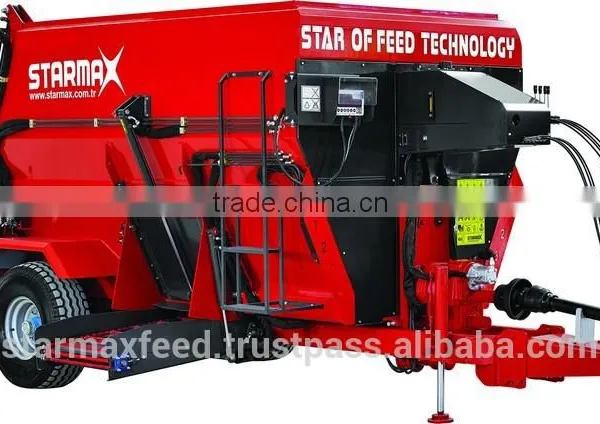

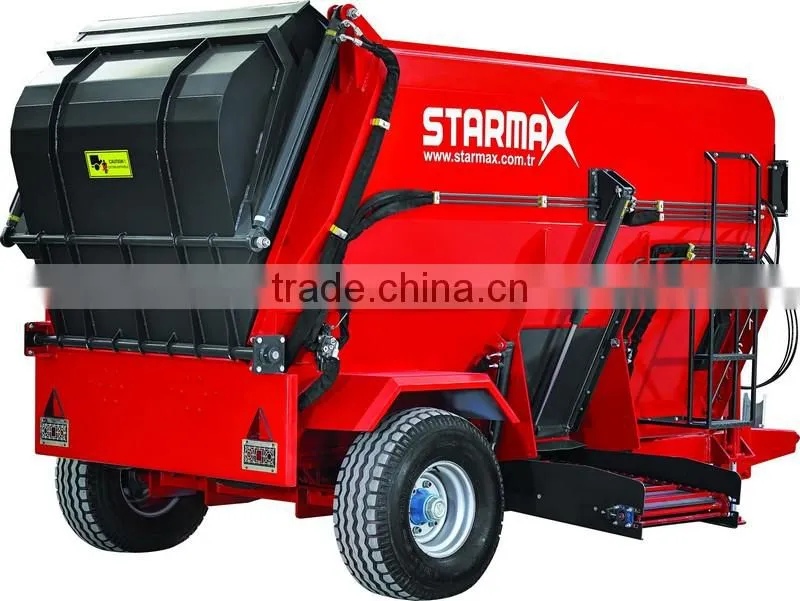

STARMAX HORIZONTAL TMR FEED MIXERS / TMR FEEDER MIXER WAGON

WHY TO PREFER STARMAX FEED MIXER WAGONS?

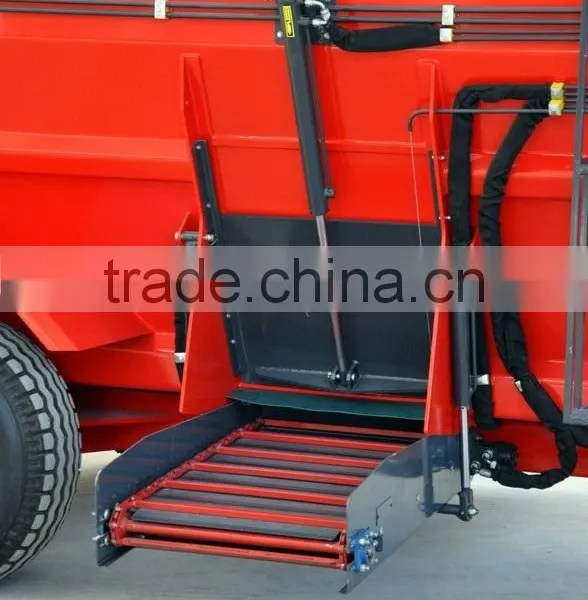

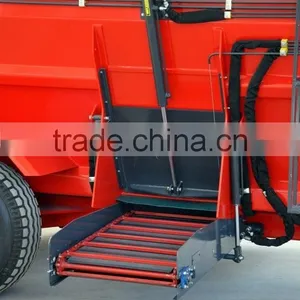

Easy to clean with double-side discharge, one manual and the other chain-conveyor
Transmission is not damaged in case of compacting thanks to the chain-drive system and safety pin
Blocking is prevented with large and special interior design and special omega system.

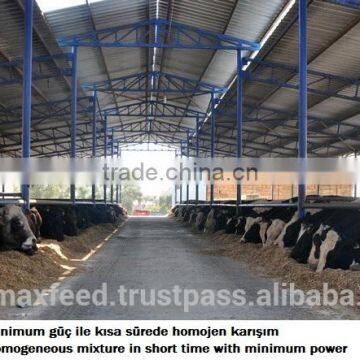

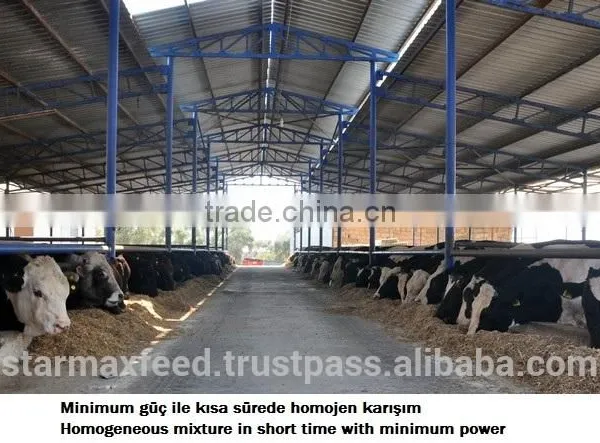

Homogenous mixture in a short while with minimum power
Strong helical structure

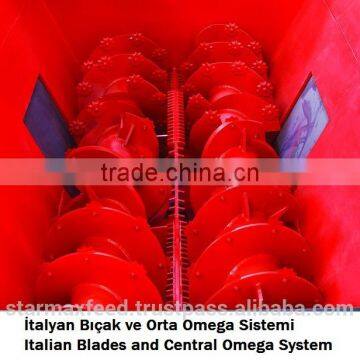

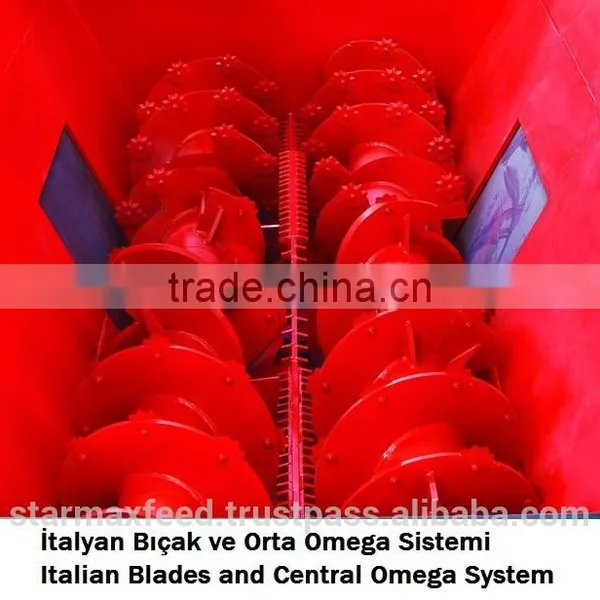

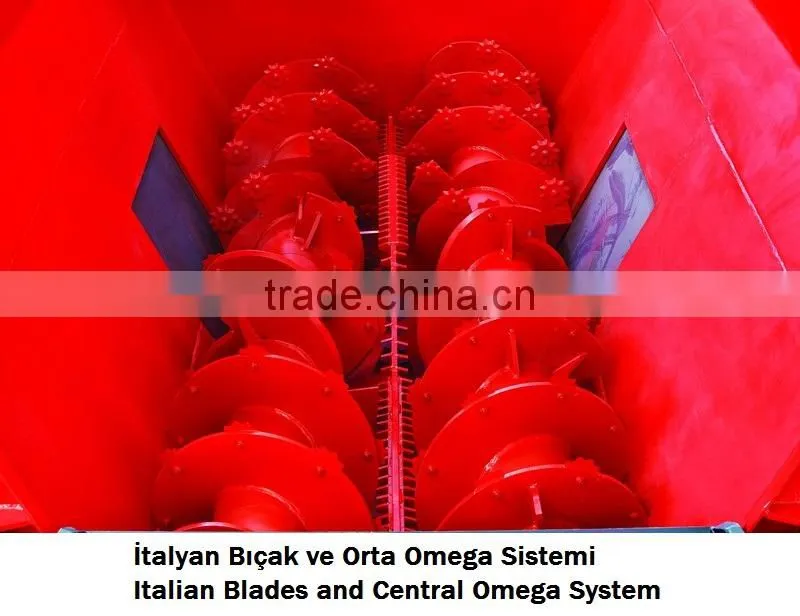

Perfect shearing and minimum shearing period with Italian blades and counter- blades in the middle omega

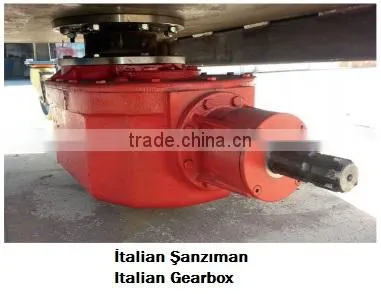

Italian Brevini Transmission and Italian Blades

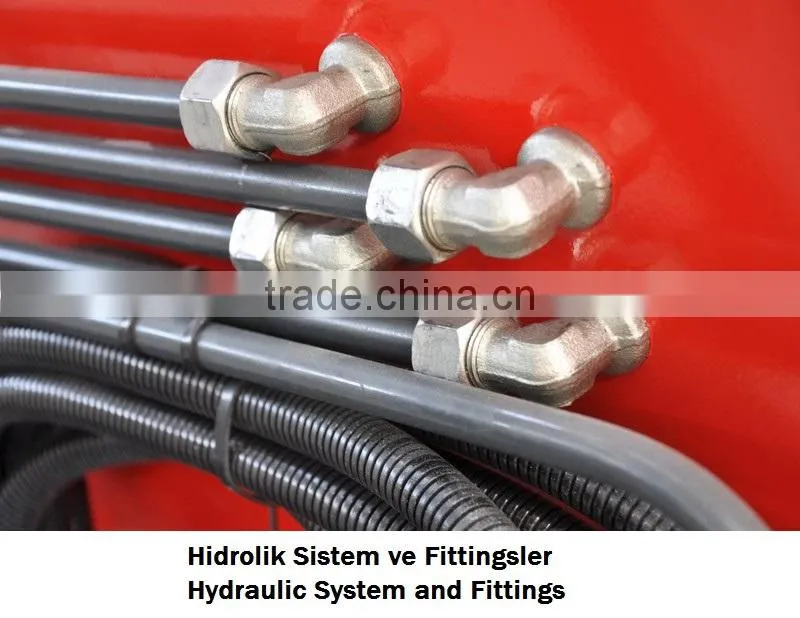

Bentener brand hydraulic pipe line (bifilar R2 type hydraulic hose)

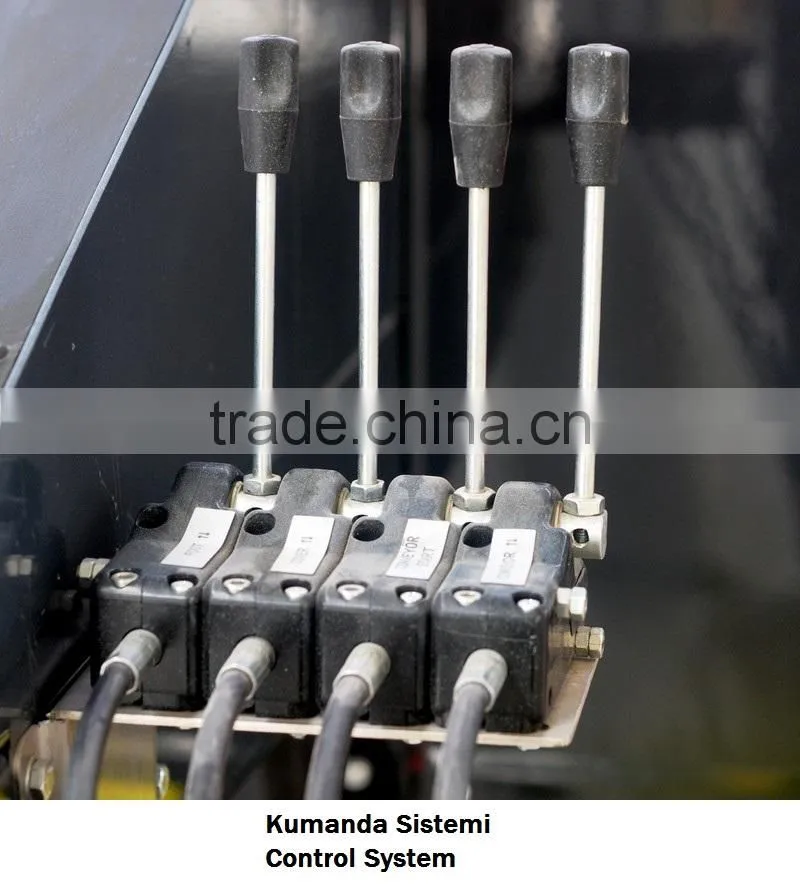

European brand independent hydraulic system and fittings

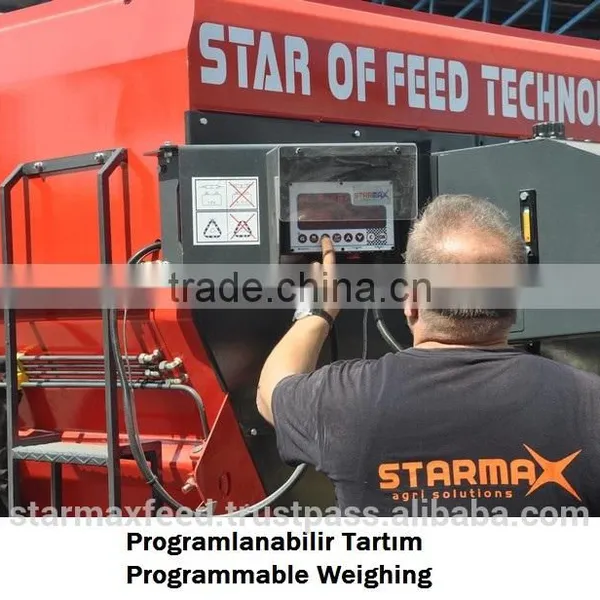

Digital programmable weighing system
Sound chassis rear cover

MIXER FEEDER WAGONS Technical Features

MODEL		STAR 8	STAR 10	STAR 14
CAPACITY	m3	8	10	14
LENGTH	mm	4980	5185	6255
WIDTH	mm	2130	2130	2130
HEIGHT	mm	2260	2445	2445
POWER	kw/hp	37/50	37/50	44/60
WEIGHT	kg	3800	4150	5250
PTO	d/min	540
SPIRAL SYSTEM	Double Spirals on the Base
MOVEMENT TRANSFER SYSTEM	Italian reducer
NUMBER OF BLADES	Piece	98	104	124
HELICAL SHEET THICKNESS	mm	12
BODY GROUND SHEET THICKNESS	mm	10
TIRE SIZE		12.5 / 80 - 15 UN1	12.5 / 80 - 15 UN1	385 / 65 V22,5
HYDRAULIC PRESSURE SOURCE		Independent Hydraulic System
RIGHT SIDE DISCHARGE WITH ADJUSTABLE HEIGHT		Hydraulic
DOUBLE-SIDED DISCHARGE			MECHANICAL / STANDARD

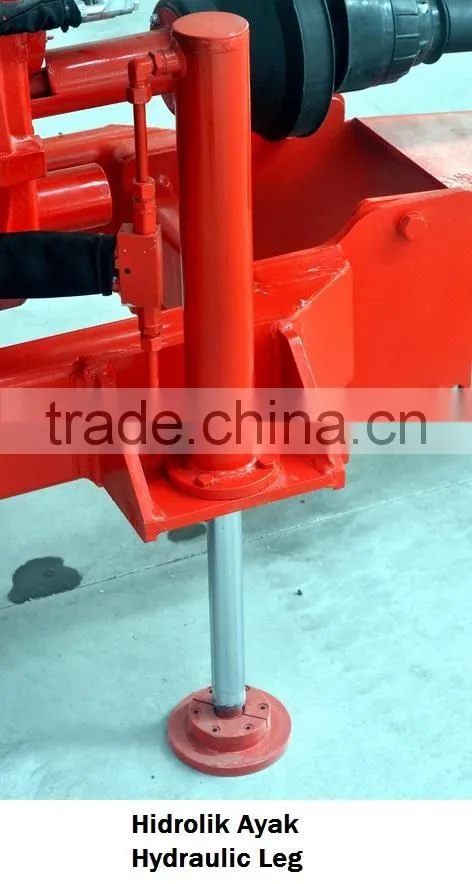

HYDRAULIC SUPPORT LEG		Standard
LOADER REAR SHOVEL		Standard
DIGITAL WEIGHING SYSTEM		Standard
