2 Cycle Motor Para Bicicleta Kit/motores Para Bike

Negotiable MOQ: 40 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

CDH

Model Number:

A80(CDH 48CC/CDH 60CC/CDH 80CC)

Jilin CDHPOWER Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name CDH

Model Number A80(CDH 48CC/CDH 60CC/CDH 80CC)

Manufacture of Bicycle Engine Kit---Hot Selling

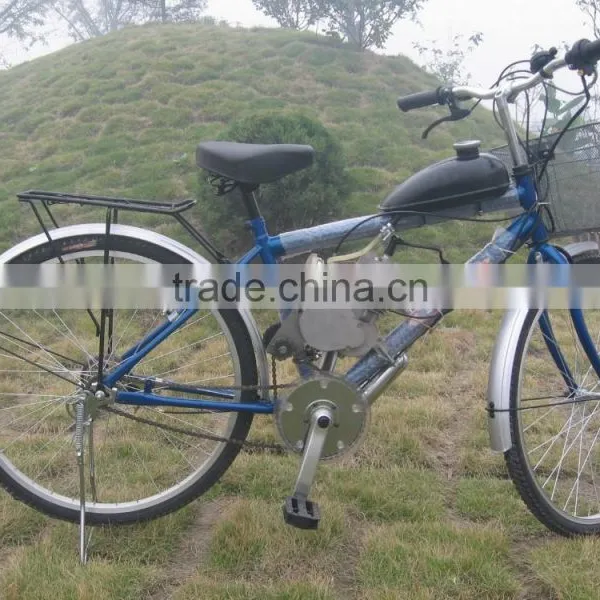

The kit include everything to change bike into moped

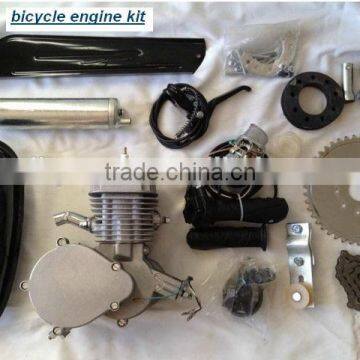

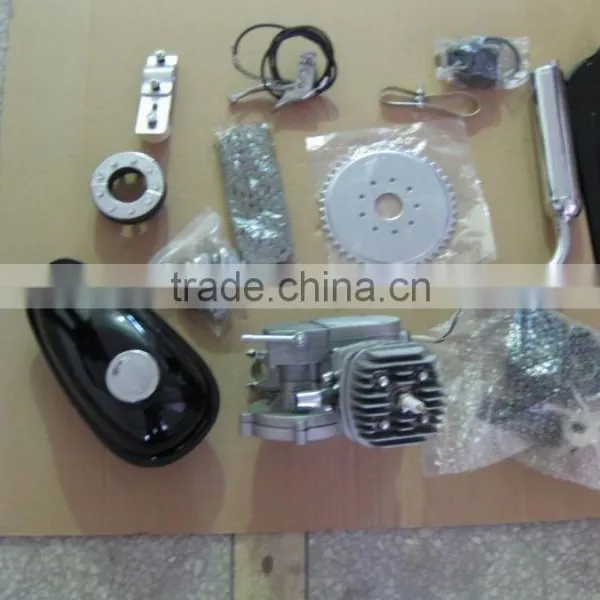

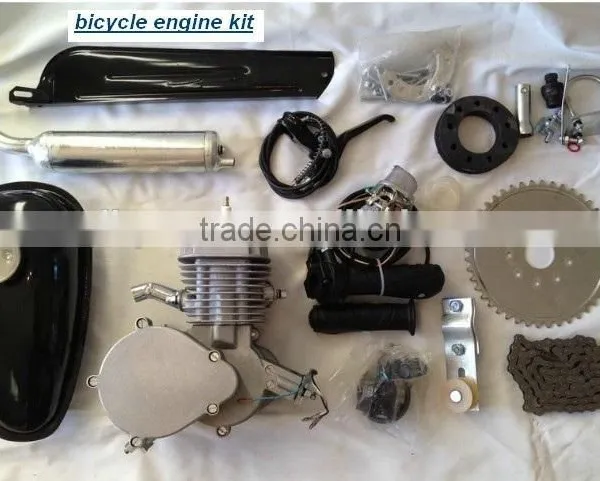

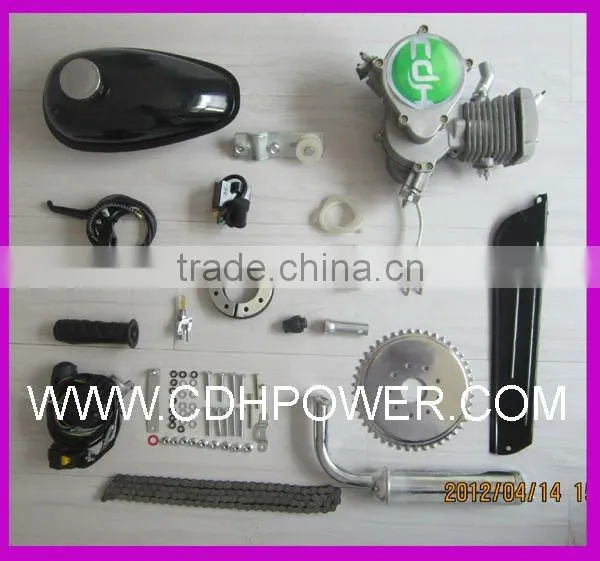

Bicycle Engine Kit include:

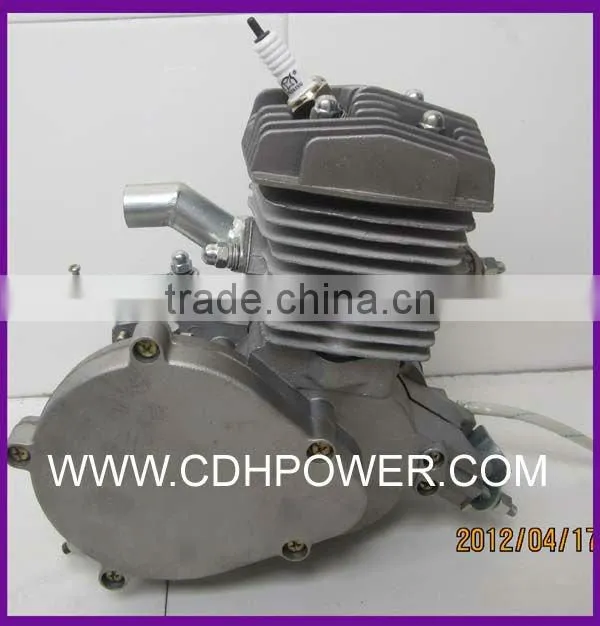

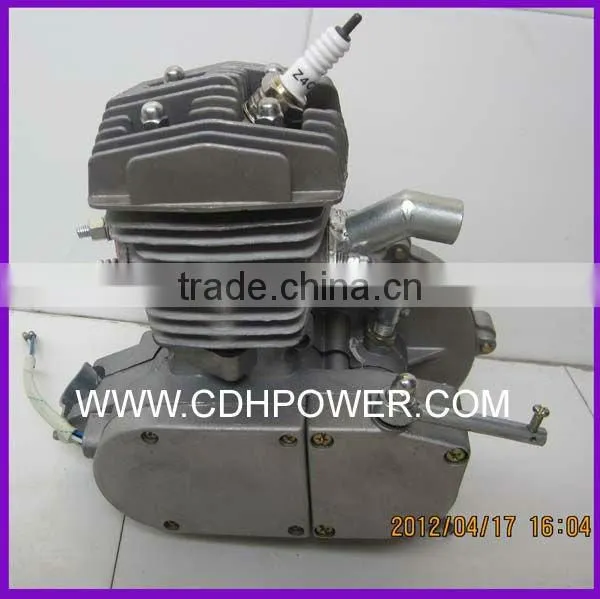

1. 2 stroke engine

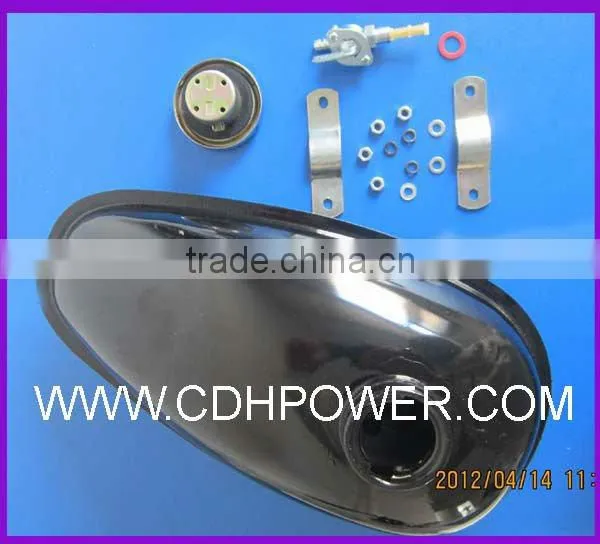

2. Black Gas Tank (2L)

3. Muffler

4. Carburetor

5. Bike Chain

6. Chain Guard

7. 44 Tooth Sprocket with 9 Holes

8. Spark Plug

9. CDI ignition

10. Throttle handle

11. Throttle Cable

12. Clutch handle

13. Fuel hose

14. Tank value

15. Clamping grubber assembly

16. Screw tool

17. Chain idler assembly

18. All the Needed Mounting Brackets, Gaskets, and Hardware

CDH A80 2 cycle motor para bicicleta kit/motores para bike

	CDH 48cc	CDH 60cc	CDH 80cc
Engine type	single cylinder, air-cooling, two strokes gasoline engine
Bore & stroke	40mmx38mm	45mmx38mm	47mmx38mm
Ignition Mode	CDI Ignition	CDI Ignition	CDI Ignition
Max. Power	1.68kw/6000r/min	1.86kw/6000r/min	2.2kw/6000r/min
Compression ratio	6:1	6:1	6:1
Transmission ratio	18:1	18:1	18:1
Starting	Kick starting	Kick starting	Kick starting
Lubricating oil	Two-stroke machine oil (or 10W/40, 10W/30 machine oil)
Mixing ratio of fuel and engine oil	16:1 for new sets, 20:1 after running 500km
Sparking plug	Z4C 16MMM
Tank capacity	2L	2L	2L
Fuel consumption	3L/100km	3.5L/100km	4L/100km
Clutch type	Rub bloc drying	Rub bloc drying	Rub bloc drying
Cooling	Air-cooling	Air-cooling	Air-cooling
Shifting way	sprocket	sprocket	sprocket
Max.speed	30km/h	35km/h	38km/h
Max. Load capacity	120kg	150kg	180kg
Fuel Type	90#	90#	90#
Net weight	10.5kg	10.8kg	11kg
Gross weight	11.5kg	11.8kg	12kg
Ctn size	42×42×17CM	42×42×17CM	42×42×17CM
20'GP	890pcs	890pcs	890pcs
Mini order	45pcs	45pcs	45pcs
