2016 Best Price Animal Feed Pallet Machine

 QI E cattle feed machine price animal feed pellets for chicken, cattle,horse,duck etc with small and large scale production.

Final pellets size range:1-12mm(For reference)

1.For pig feed pellet diameter: ø3.5-6.5mm

2.For cattle feed pellet diameter: ø4.5-8mm

3.For broiler chicken feed pellet diameter: 3.2mm

4.For fish feed pellet diameter: ø2/2.5/3mm

5.For shrimps feed pellet diameter: ø1-3.5mm

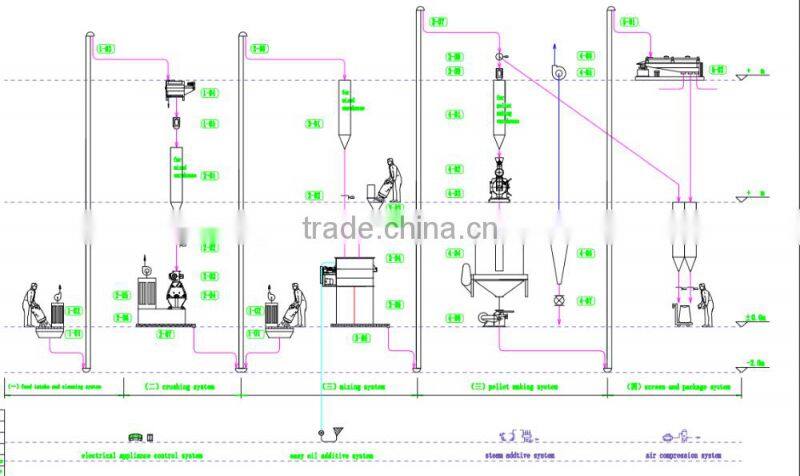

animal feed pallet machine    process flowchart:

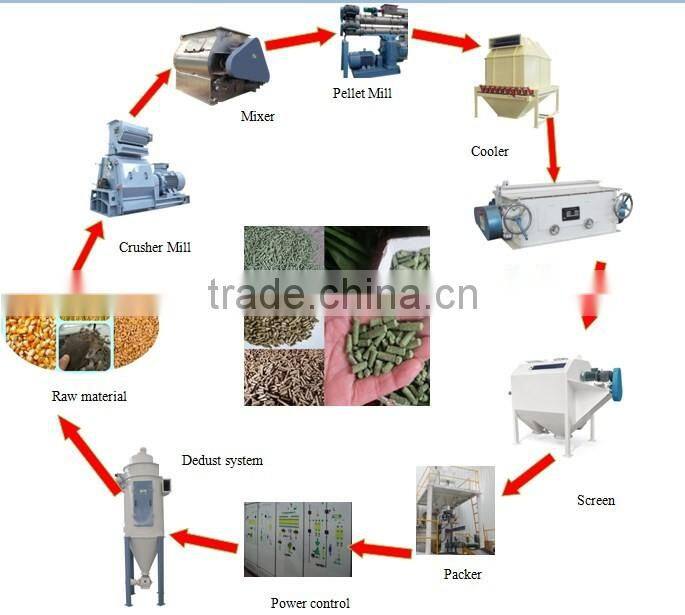

Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

A.  The cleaning section of animal feed pallet machine  :

 Feed machinery ---cleaning section:
Before going into the main equipments,the raw materials should be cleaned to remove impurities and iron parts in order to ensure the product quality and normal working of the main equipments.

The raw material go through the bucket elevator, then it will be lifted into a certain height, then it goes into the pre-cleaner, in which the impurities can be removed; then the clean material goes into the permanent magnetic sleeve, in which the iron things are removed, then clean material goes into the crushing section.

B.  The crushing section of   animal feed pallet machine :

The task of this section is to crush the clean materials we got in the last section into powder,and then deliver the powder to the next section.

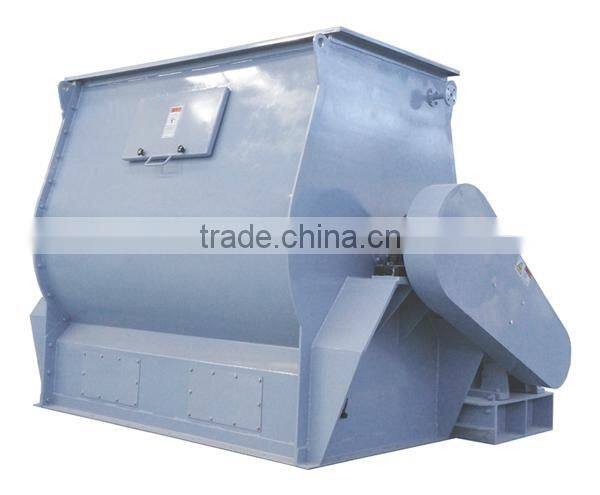

C.  The mixing section of animal feed pallet machine     :

 The task of this section is:

1. evenly mix different materials into complete powder feed.
2. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.

D.  The pelletizing section of animal feed pallet machine    :

The task of this section is to pelletize the powder feed to required sizes feed pellets.

 E.  The cooling section of animal feed pallet machine    :

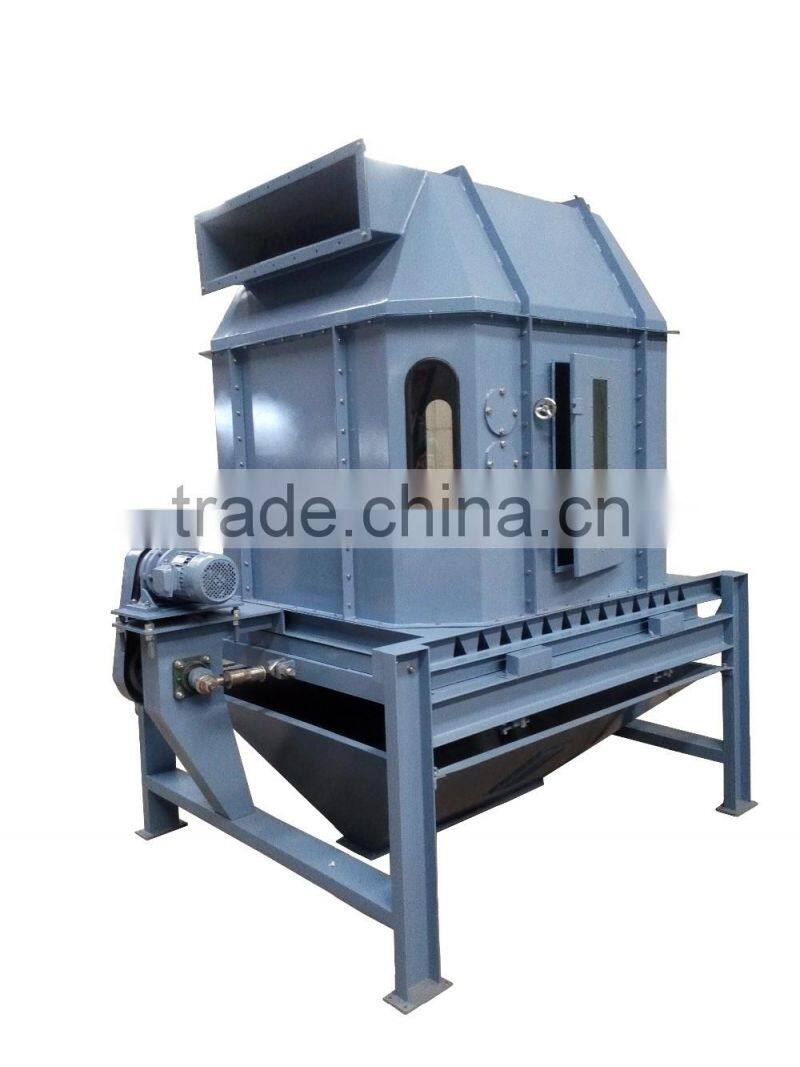

The pellet with high temprature output form the pelleting machine, about 70-90 degrees Celsius, the cooling machine is needed to reduce the temprature for the pellets storing, our counter flow cooler is the usual type of the cooling machine for the pellets, it can give the better result in a short time, with low energy cost.

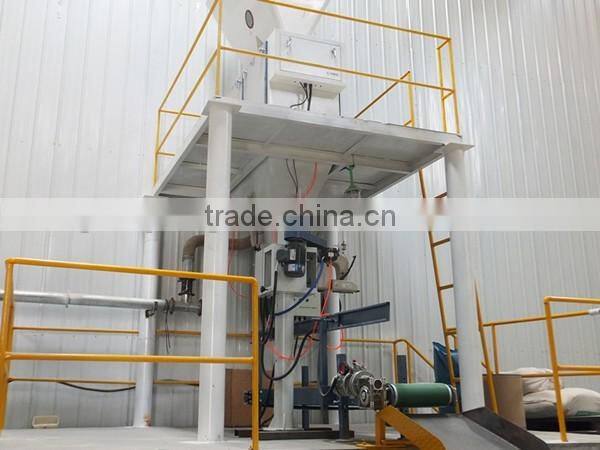

F.  The packing section of animal feed pallet machine  :

This machine is need for the wood pellets production plant, that make the pellet in best storing and transporting, reducing the break of the pellet wood.

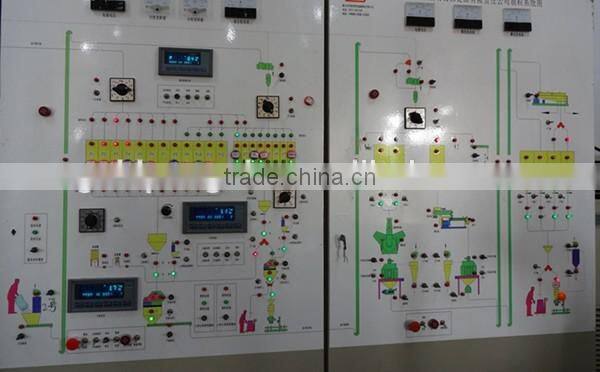

H.  The power control of  animal feed pallet machine:

E: mixer machine for animal feed pallet machine :

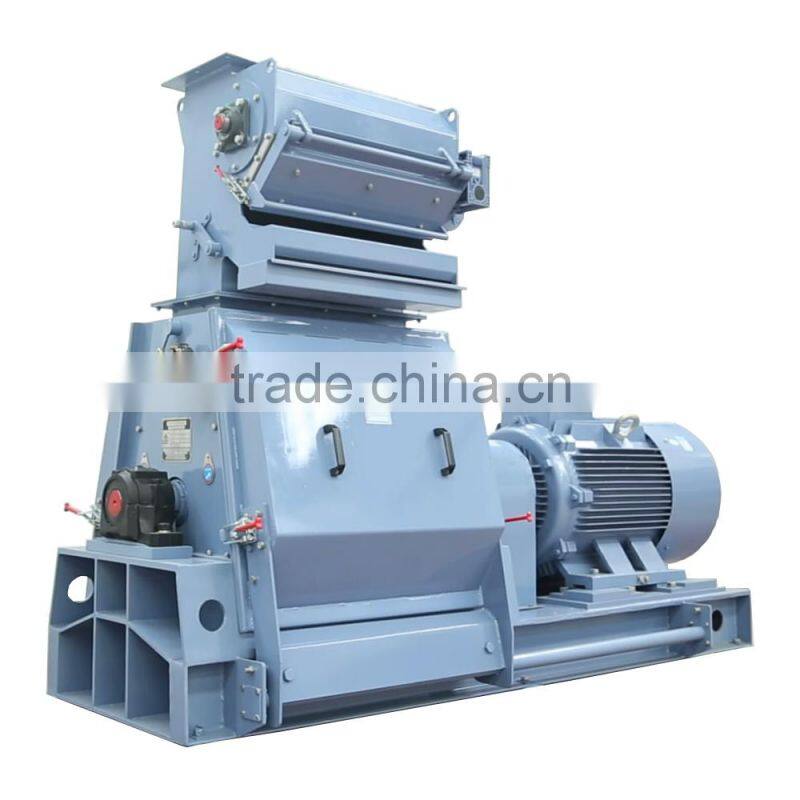

1.Adopt tear circle type grinding chamber, effectively eliminate circumfluence phenomenon in the process of grinding, increase production;

2.The Ushape second time grinding structure is installed at the bottom of grinding chamber increase the beating times to get more uniform grinding grain size;

3.Both coarse and fine grinding can be realized by adjusting the clearance between hammer and screen mesh, thus one machine can be used as two;

4.The key spare parts adopts originally imported to ensure longer service life and lower maintenance cost;

5. Fully opened operating door, convenient maintenance and easy to replace hammer;

6. Compared with 128 series hammer mill, it has smaller capacity.

7.Adopt tear circle type grinding chamber, effectively eliminate circumfluence phenomenon in the process of grinding, increase production;

8.The Ushape second time grinding structure is installed at the bottom of grinding chamber increase the beating times to get more uniform grinding grain size;

9.Both coarse and fine grinding can be realized by adjusting the clearance between hammer and screen mesh, thus one machine can be used as two;

10. The key spare parts adopts originally imported to ensure longer service life and lower maintenance cost;

11 .Fully opened operating door, convenient maintenance and easy to replace hammer;

12. Compared with 128 series hammer mill, it has smaller capacity.

 1.We supply the technology and flowchart,and arrange our engineers to go your site for installation and adjusting guide.

2. 1 year poultry feed mill equipment gurantee, and we supply equipment parts for you with factory price.

    We specialized in all kinds of vegetable oil machine manufacturing more than 30years,and we are university(Which is famous in Asia about grain and oil major)-cooperation enterprise,and our machine has exported to Russia, India, South Africa, Ukraine ,Nepal, Indonesia, Serbia, Romania and so on.

Our main Main business:

♦10-500T/H oil material first cleaning,drying and storage section turn-key project.
♦ 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean ♦ hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
♦ Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
♦ 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
♦ 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
♦ 10-200T/D Fatty acid esterification production cooking oil production line.

♦ 1-200T/H Turn-key Any kinds of animal feed processing plant.
