Palm Oil Extraction Machine in Kenya

         palm oil extraction machine in kenya

Oil pressed from pre-press and solvent extrating are both crude oil. For using in cooking, crude oil should be refined for edible oil for human being. Refiney section is mainly the parts for Degumming and Neutralizing,Bleaching,De-waxing, and De-odorizing. Then refined oil can be used directly for daily usage.

 palm oil extraction machine in kenya:

When oil press operating, the prepared materials enter the pressing chamber from the hopper and then move forwards by the rotating of pressing screw and is pressed under the high-pressure condition in the chamber, friction between material and chamber will be created, which also created friction and relative movement among material particles, on the other hand, root diameter of the pressing screw carries larger from one end to the other. hence, when rotating, it not only pushed particles moving forwards but also turns them outwards as well, meanwhile, particles adjacent the screw will rotation along with screw’ rotating, causing every particle inside the chamber to possess different speed, therefore relative movement among particle creates heat which is necessary during manufacturing. because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil productivity.

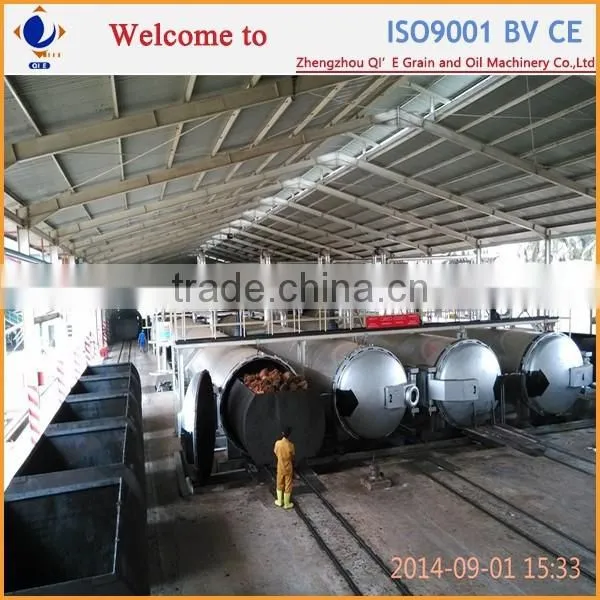

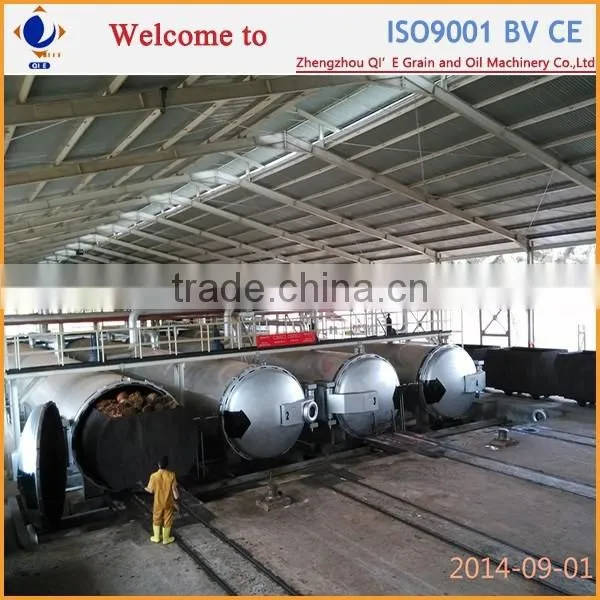

oil palm sterilization

Sterilization: direct steam temperature is 145℃, time is 90-120min.

The purpose of sterilization：destroy the activity of lipase in the pulp tissue.kernel and husk easy separation.

stripping palm fruit

Make the fruit separation off empty fruit string by the hoist - peeling machine. Empty fruit string could be used as a raw material burning or as fertilizer. The fruit transport cooking pot.

Crasher

extracting

Crude oil including oil、water、 solid impurities; The fresh palm oil extraction rate about: 20% crude palm oil, 2% palm kernel oil. Crude palm oil is jacinth and half liquid oil.

palm nut recycle

It could used for making palm nut oil.

separator

The oil in the bottom of vacuum tank would transport to oil tank by pump. The requirement of oil is moisture in 0.1%～0.2%, and the impurities should be less than 0.02%.

crude oil

Crude palm oil have highly acid value, deep color, less colloid, so it suitable for physical refining. Crude palm oil content a large number of B carotene (0.05% 0.2%), so the color is orange red.

Pre-sale services:

1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects

Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.

After-sale services

Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;

Zhengzhou Qi'e grain and oil machinery co., LTD is a company specializing in the production of grain and oil machinery and equipment, scientific research, manufacturing, sales for the integration of large-scale private enterprises, the company with the mechanical design and research institute of Henan province, Henan university of technology (the former college of food) university-enterprise cooperation, carried out for a long time in oil machinery, preparing protein, lecithin extraction and other aspects of the research and development and application of new technology.

If you are interested in our palm oil extraction machine in kenya, please check the "Send" Now!!
