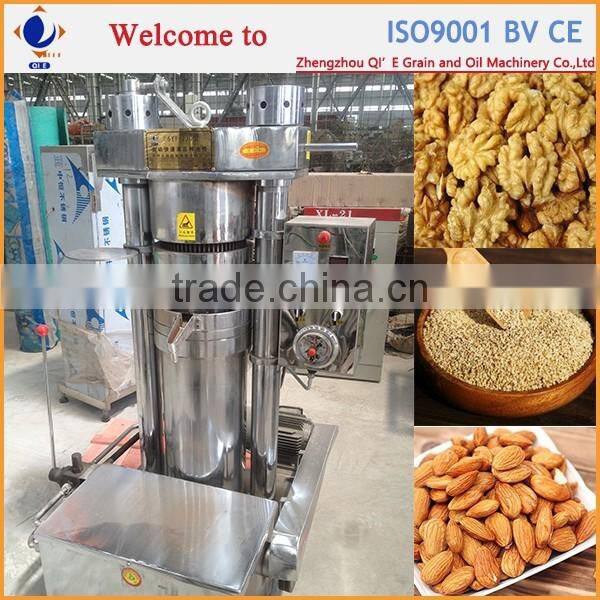

Factory price hydraulic soybean oil squeeze equipment
Hydraulic oil press machine is our patent equipment. The machine is specialized wrung sesame, peanut, walnuts, almonds etc. The machine is simple operation, high oil press rate, each pack 6-8 kg, 8-10 mintes wrung net.
Detail information of hydraulic soybean oil squeeze equipment
Main engine

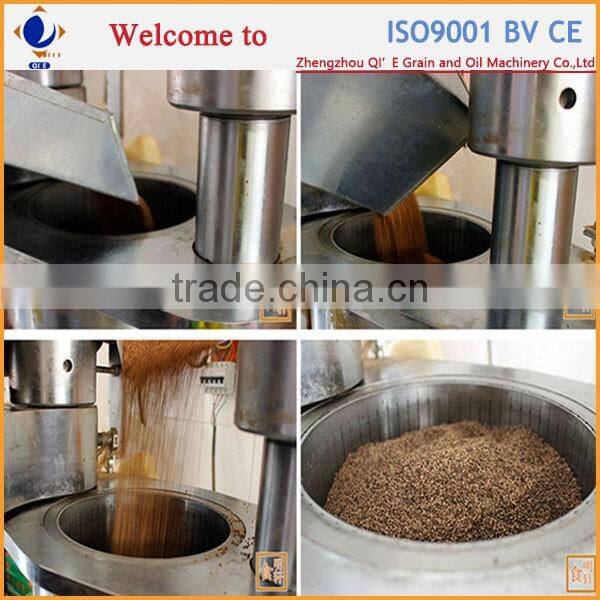

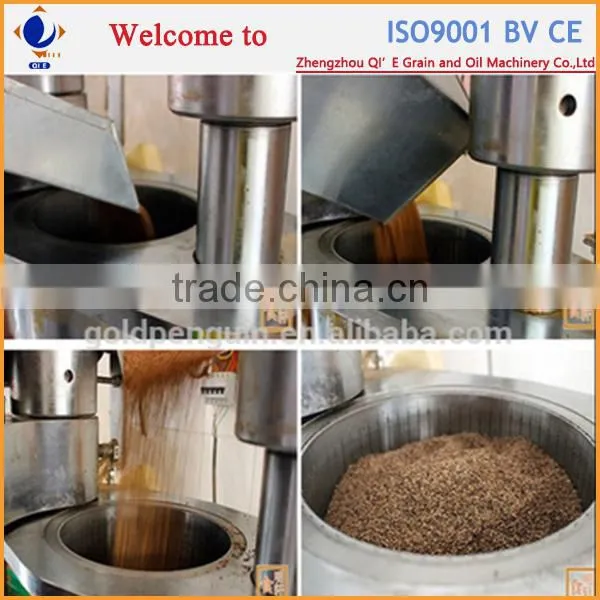

Main engine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts. Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage.
Hydraulic system
Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn’t cooling unit.
Electronic system
Electronic system is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for peasant.
Technology parameter of hydraulic soybean oil squeeze equipment
Model |
Type |
Product Condition |
Capacity |
Dimension(mm) |
6 YY-230 |
Vertical hydraulic |
Staff1, plant 10m2 |
35-55kg/h |
900*850*1550 |
6 YY-260 |
Vertical hydraulic |
Staff1, plant 10m2 |
45-70kg/h |
1050*950*1650 |
Performance features of hydraulic soybean oil squeeze equipment
1. Specially designed in compact structure for all over the world. small oil mill use; offers pure and high quality edible oil.
2. Widely applied to press sesame, walnut kernels, kiwi seeds, almonds, etc.
3. Reasonable-designed pressing chamber ensures high oil yield. The pressure inside increases progressively and promotes oil seeds to be broken and then expelled.
4. Full automatic control system, and no matter the preheat temperature or the pressure of hydraulic system, it is all automatic control.

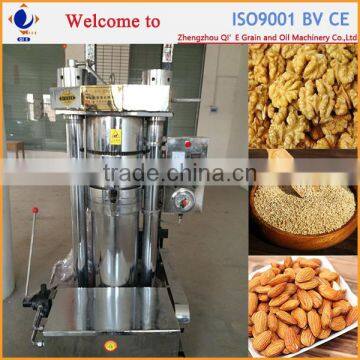

Oil seeds of hydraulic soybean oil squeeze equipment

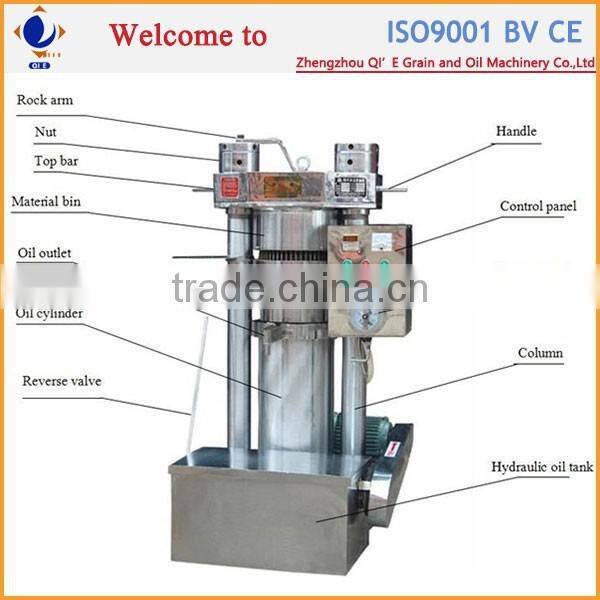

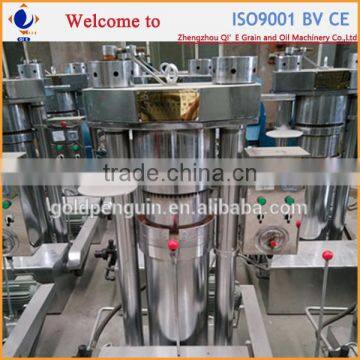

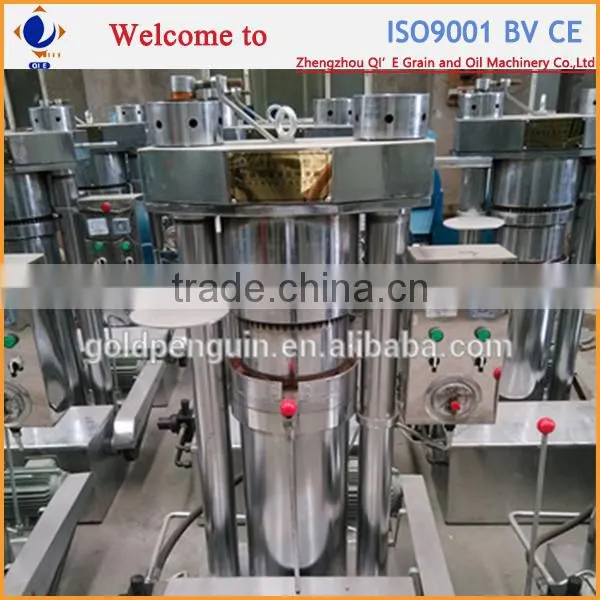

Main structure of hydraulic soybean oil squeeze equipment

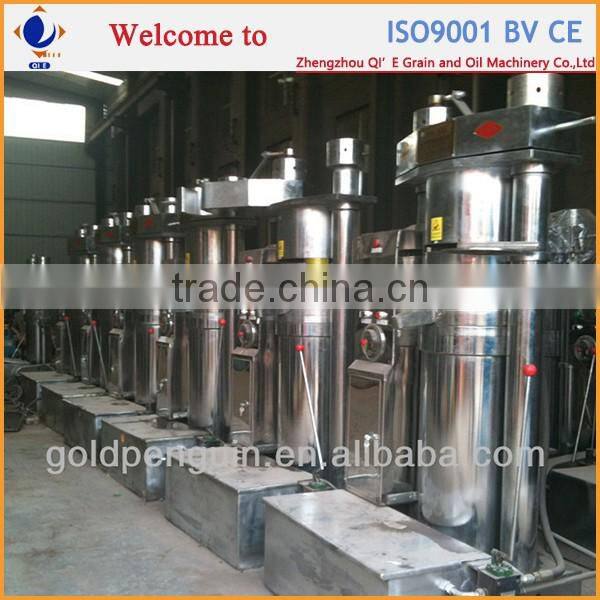

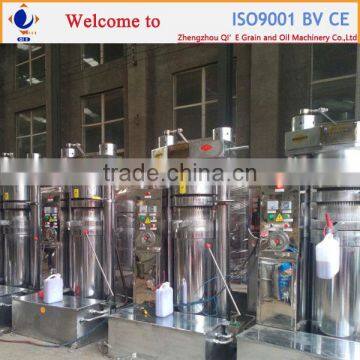

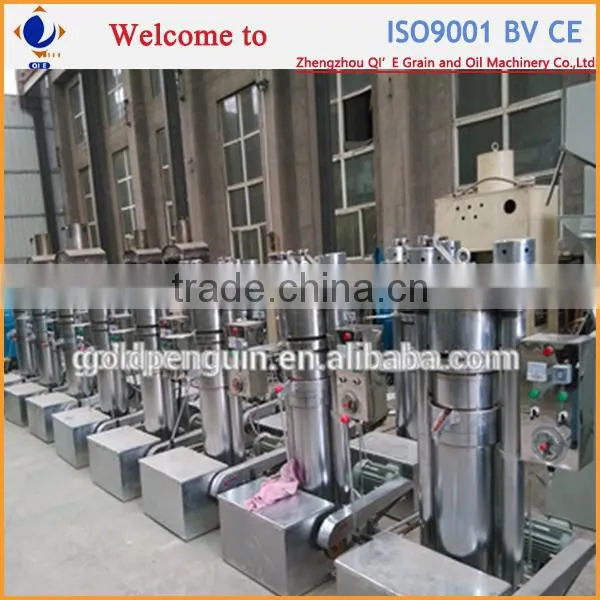

Shipment
Patent certificate

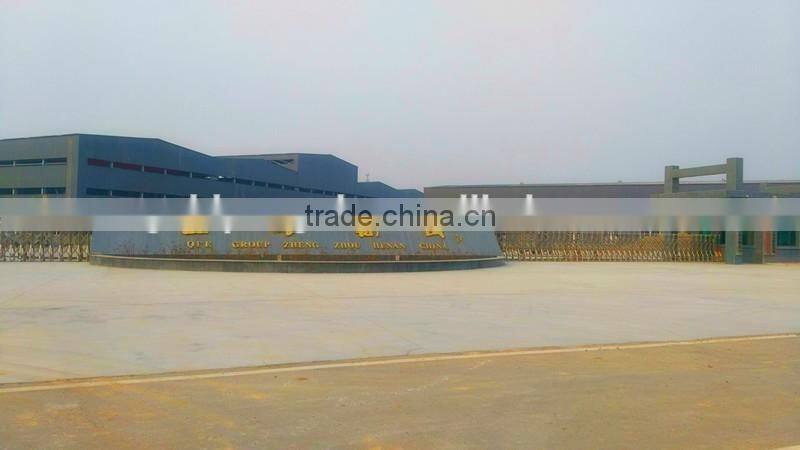

Our company
Our customer
Cooperation with university
Please feel freely to contact me
