Edible oil production line groundnut cleaning machine

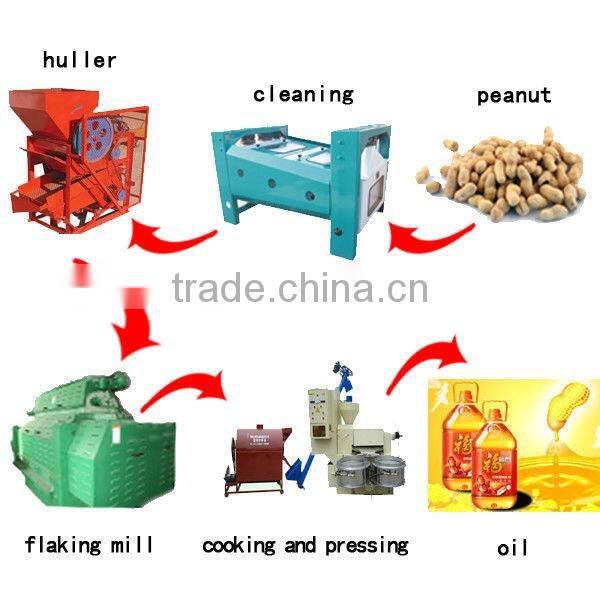

Groundnuts contain about 25% shell and 3% skin. Before taking oils and fats out of groundnuts by pressing or extracting, the mill needs to prepare it by cleaning, crushing, softening, flaking and cooking. Such preparation is called peanut pre-treatment. We can design special pre-treatment machines for you according to your condition.
Cleaning: using different size cleaning sieves and magnetic destoner to clean the different
impurities. After going through this part, most of the impurities are moved from peanuts.
Crushing: materials are divided into small pieces.
Softening: by adjusting moisture and temperature, we make the small pieces soft.
Flaking: then materials are made into thin flakes which are easy to get more oil.
Cooking: raw flakes are cooked to make the oils and fats in cells easier to flow out.
Groundnuts pretreatment for small capacity
Model |
Capacity(kg/h) |
Power(Kw) |
Weight(Kg) |
Dimension(mm) |
6YL-80 |
80~150 |
8.05 |
760 |
1650*1150*1750 |
6YL-100 |
150~250 |
11.6 |
950 |
1950*1300*1900 |
6YL-120 |
200~300 |
15.8 |
1100 |
2050*1350*2000 |
6YL-130 |
250~400 |
21 |
1300 |
2200*1600*2150 |
6YL-160 |
400~600 |
24.7 |
1600 |
2500*1600*2500 |
Machine advantage
1. High oil yielding, low oil residual in the cake. The oil left in cake is less than 6%. The cake
thickness can be adjusted once the machine stops running;
2. Compact size: only 10-20 square meters space is enough.
3. High purity: machine surface is made of chrome plated stainless steel, in line with food
hygiene standards.
4. Easy operation. You should operate as per the instruction.
5. Spare parts: worm, squeezing head, worm shaft, cage bar, heater ring, cake outlet, vacuum filter.
Whole set of equipment for palm oil production line.
Motor and power control system.
Installation material.
Installation and test-run.
Drawing of process description, equipment layout, foundation and construction.
Drawing of power control.
Isolation and painting of equipment.
Water recycling and cooling system outside the plant (i.e. supplementary device).
Staff training and long-term technical service.
Main business field
10-500T/H oil material primary cleaning,drying and storage section turn-key project.
100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot dehulling, bean skin crushing, the soybean extrusion, high oil contained pre-pressed cake extrusion and high oil contained flakes puffed directly). Rice bran turn-key project.
100-3000 T/D leaching workshop turnkey project (towline extractor, rotocel extractor, loop type extractor,
DTDC separated machine, the full negative pressure evaporation,
Paraffin wax recovery, leaching workshop degumming, phospholipid concentration).
30-1000T/D continuous physical (chemical) refining line.
20-3000T/D sunflower oil, rice bran oil, corn germ oil dewaxing turnkey project.
10-200T/D fatty acid esterification edible oil production line.
