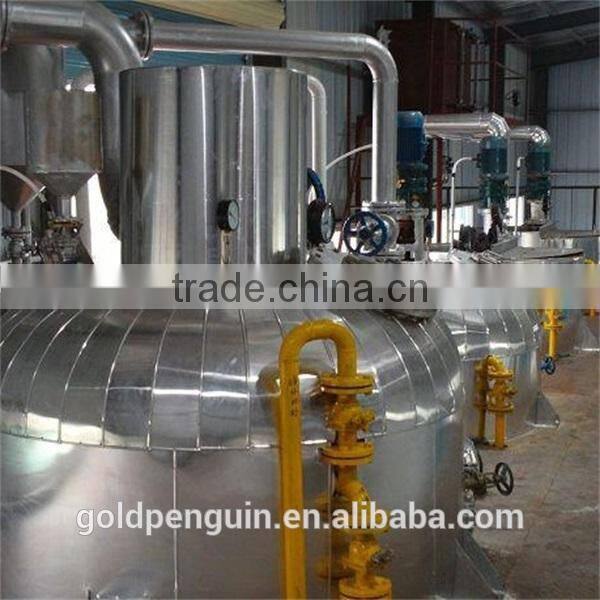

rice bran cake solvent extraction equipment
Company Profiles:
Zhengzhou QIE Grain&Oil Machinery Co.,Ltd is a large-sized joint-equity enterprise, which specialize in producing edible oil mechanical equipment, a group enterprise integrating scientific research, manufacturing, sales as one. Our machinery exported to Russia, Bangladesh, Romania, Ukraine, Cameroon, Ghana, Thailand, Pakistan, Indonesia, etc.
Main fatty acid content of rice bran:
Stearic acid |
1.0-3.0% |
Palmitic acid |
12-18% |
Linoleic acid |
0.5-1.8% |
Phytosterol |
3.0-4.5% |
Oleic acid |
38-52% |
Oryzanol |
0.1-3.0% |

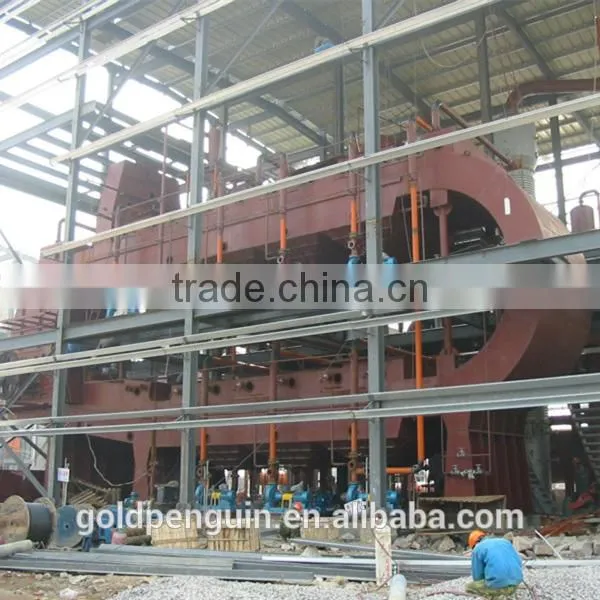

Full continuous rice bran oil extraction machine technological process introduction:
Rice bran oil extraction machine Main parts:
Pre-process:
1.Rotary sifter: to separate rice bran from broken rice.
2.Extruder: Adjust structure and temperature of rice bran to meet the requirement of going to extraction process. Under the function of high pressure, high temperature and high friction,
passivate the active lipase, peroxidase and so on. So the storage life will be enlarged, and
nutritional ingredient saved.
3.Drying:. Adjust moisture of rice bran to meet the requirement of going to extraction process.
Solvent Extraction process:
1. Solvent pumps: continuously spray solvent to the rotary-type extractor

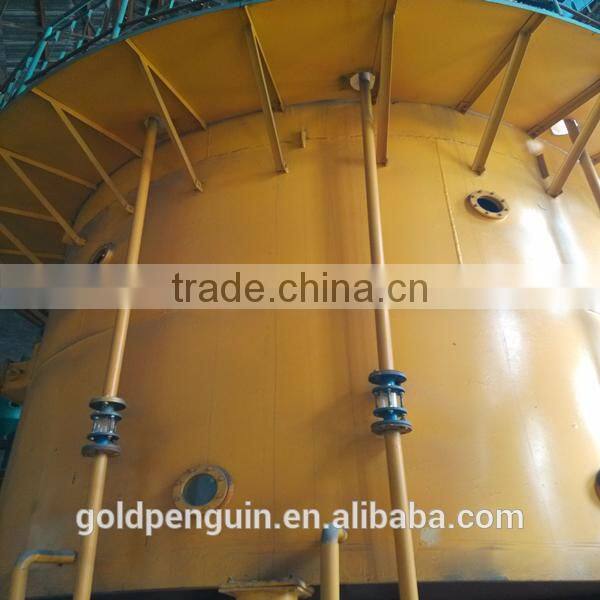

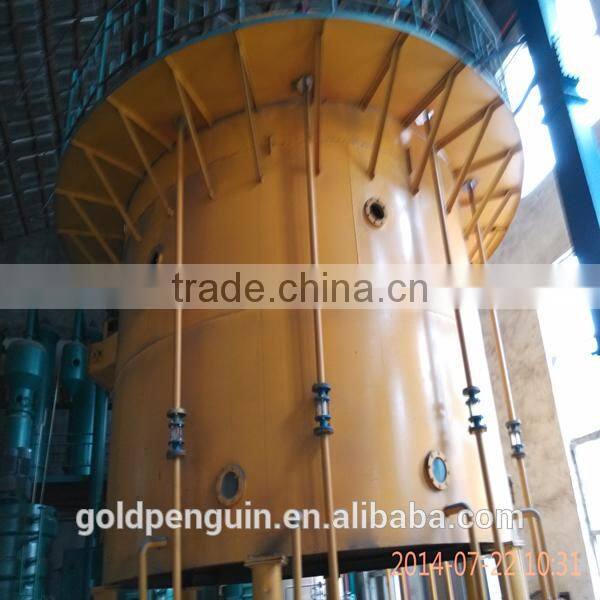

2. Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).
3. DTDC: usd to separate the solvent from the wet meal.
4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.
Full continuous rice bran oil extraction machine advantage:
Our products have the high quality and high performance.we use the stainless steel instead
of the carbon steel, we buy directly from the manufacturer for guaranteeing the quality.our
welding worker should get the certificates.and our electric machines all imported from Germany.
And more other advantages we will talk in our specific condition.
Full continuous rice bran oil extraction machine consumption in operation:
Residual oil in meal |
≤1% (soybean) |
Solvent consumption |
≤3Kg/T(6#solvent oil) |
Crude oil moisture and volatile matter |
≤ 0.30% |
Power consumption |
≤ 15KWh/T |
Steam consumption |
≤280Kg/T (0.8MPa) |
Finished meal moisture |
≤ 10-13% (adjustable) |
Residual solvent in finished meal |
≤ 300PPM (qualified detonated experiment) |

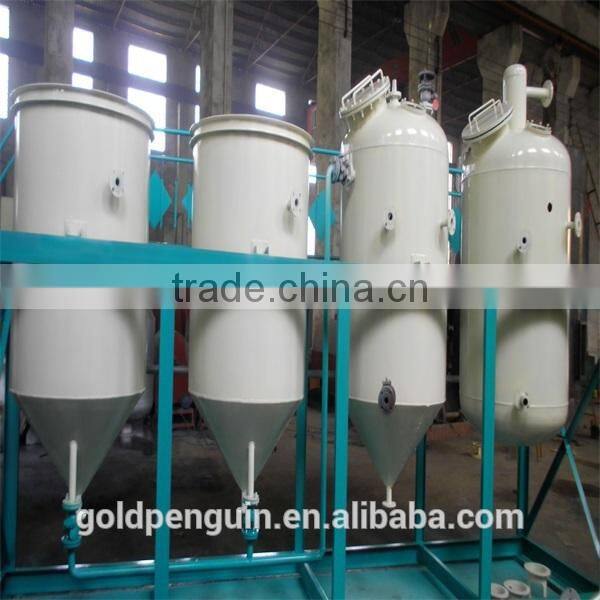

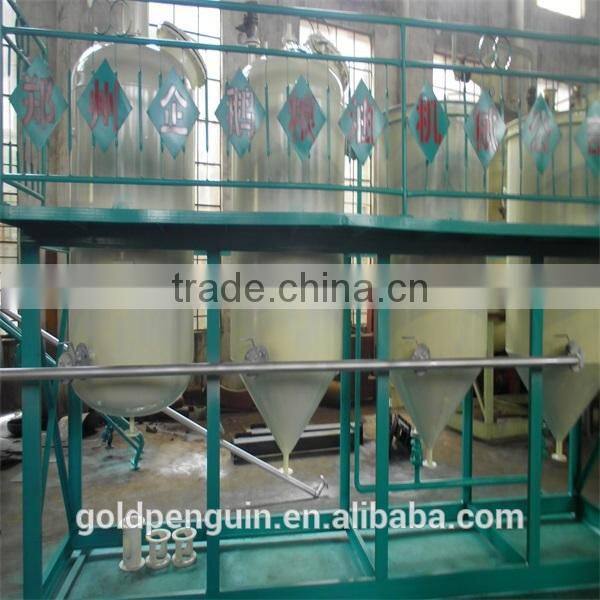

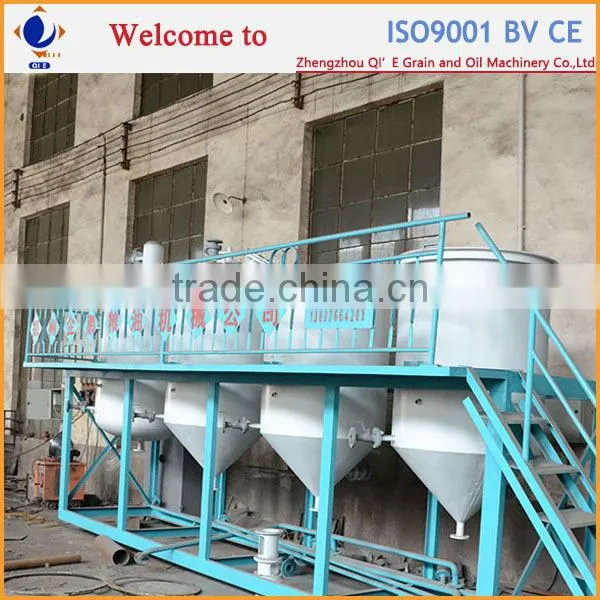

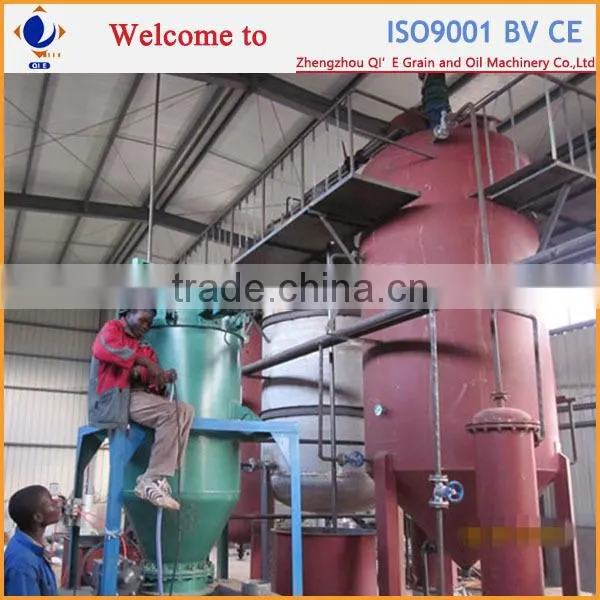

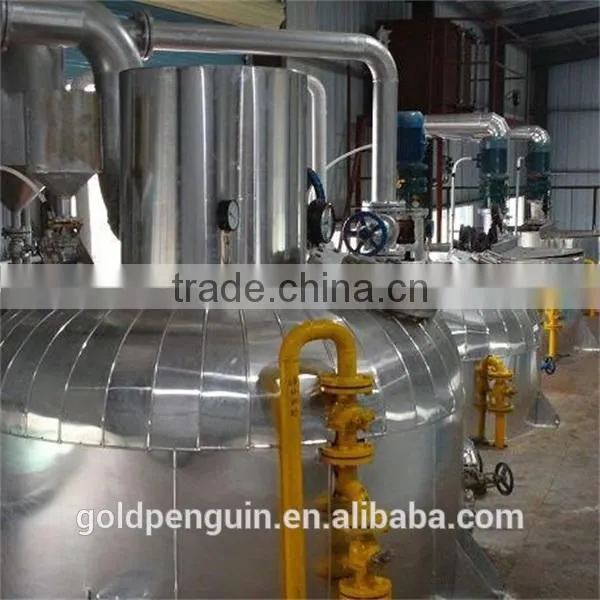

Refining Pot:
Refining pot: also named Dephosphorization and deacidification tank,under 60-70℃,it occurs acid-base neutralization reaction with sodium hydroxide ,After stirring by reduction box,it can decrease the acid value in oil and separate the impurity ,phospholipid which will enter into soap stock..The oil can be refined further.
Bleaching pot:Also named bleaching, dewatering pot,it removes water from oil by vacuum.The bleaching earth is breathed into bleaching pot ,after stirring,filtrated by filter and change the color of the oil.
Vertical blade filter machine:
Equipped with vertical leaf filter to remove used bentonite from the oil, operating conveniently and continuously , low laboring tense, keeps environment well, keeps oil residence in deposable bleaching earth in low level.
Deodorization pot:
It uses USU 304 stainless steel plate, under the vacuum condition of vacuum and high temperature (220-240℃), The deodorization system can remove fatty acid and other rare delicacy high efficiently .make Meanwhile, the pot has the advantage of lowering steam consuming and avoid of the hydrolyzation of oil.
Anyone who bought our machine all can accept the usage and maintenance training in our factory.
A. Engineers available to service machinery overseas.
B. We afford technical solutions for buyers at any time.
C. We supply spare parts all year around at ex-factory price.
Our after-sales service team can go to your workshop for debugging and training.
Warranty period: 2 years from the date you bought our machine.
The following situations are not included in our warranty.
(1) The damage which you did not according to our service manual.
(2) Normal spoilage of the quick-wear part.
(3) Someone who can’t use and maintain the oil press machine.
Whether the oil press machine is in our maintenance range or not, our after-sale service team all can help you to repair.
Those are not included in our maintenance range, you need to pay the traveling expense, material cost and repair cost for our after-sale service team.
Any more questions, please contact me without hesitation.
