50TPD Oil Pretreatment Machine for Cotten Seed

50TPD oil pretreatment for cotten seed

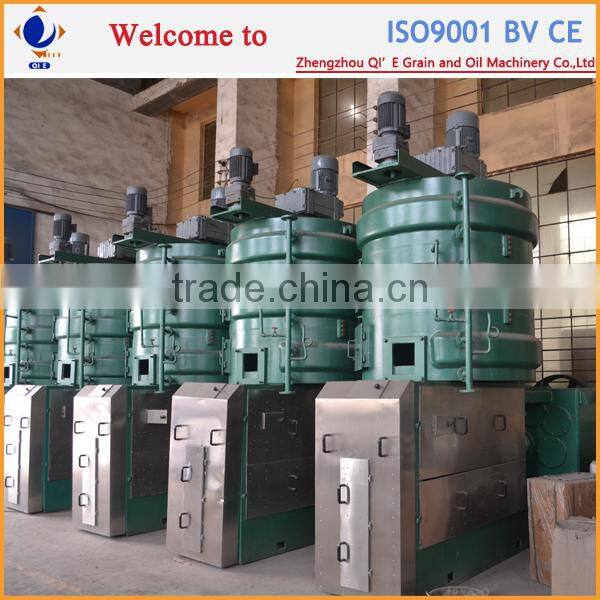

1. Pre-press process introduction:

Craft flow: Crude rice bran → cleaning → softening → expanding → drying → to extraction workshop

Pretreatment and prepressing section is a very important section before extraction.It will directly affect extraction effect.

Craft features:

1.Create good production enviroment

2.Minimize the total fat loss,increase oil yield and output and improve the quality of oil and cake&meal.

3.Comprehensively utilize impurities and offal.

4.Perfectly match extraction production line,design different production processes according to different materials.

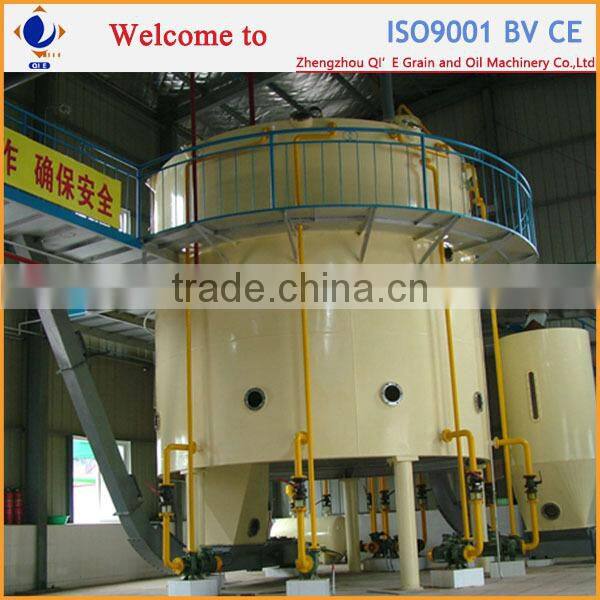

2. Solvent extraction process introduction:

1. Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;

2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;

3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.

4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.

5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.

3. Crude oil refining process introduction:

Basing on the traditional oil refining technology, Zhengzhou QI'E Grain and Oil Machinery Co.,Ltd has developed the latest combined packing layer plate deodorization soft tower and the physical and chemical mixed refining technology for crude oil of any quality. Moreover, a series of advanced technology and equipment are used, such as super wet deguming, bleaching earth automatic metering, negative pressure decoloring, high vacuum steam jet deodorization, deacidification, winterization dewaxing etc.. With advanced technology, superior equipment, full-automatic control and excellent economic and technical parameters, our equipment can meet customers' different refinery  equipments at home and abroad.

4. Company introduction:

 5. Machinery certification:

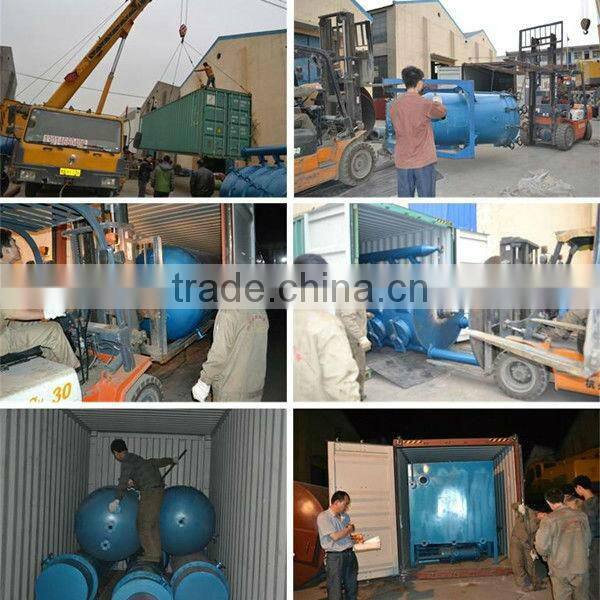

6. Delivery and packing:

7. Foreign projects show:

8. Whenever you have any question, pls feel free to contact with Sophie:
