Home > Products > Full Continuous Refining Line > 1st level standard capacity cooking oil machine
1st level standard capacity cooking oil machine
- 30 Set / Sets per Month
- Qingdao or the nearest port
- T/T L/C D/P D/A Credit Card PayPal
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, cooking oil machine | Type: | Other, cooking oil machine |
Automatic Grade: | Automatic | Production Capacity: | 1-100T/D | Place of Origin: | Henan, China |
Brand Name: | Qie | Model Number: | HT89 | Voltage: | 380V/440v |
Power(W): | 20-50KW | Dimension(L*W*H): | depond on capacity | Weight: | depond on capacity |
Certification: | ISO9001/BV/CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
What is crude cooking oil machine?
The crude oil obtained either from expellers or solvent extraction plant contains impurities, which must be removed to make the oil edible, more palatable and stable against rancidity upon storage. The process of removing these impurities is called refining.
Classification of cooking oil machine:
In operation type:
A. Batch Type B. Semi-continuous Type C. Full Continuous Type
In technology :
A. Chemical Type B. Physical Type C. Both Chemical And Physical Type

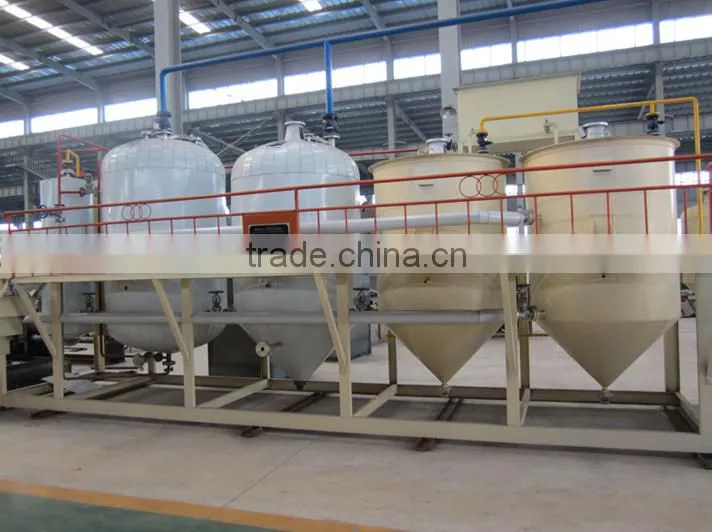

Batch Type
Adapt to 1-10t/d small capacity
plant
Semi-continuous Type
Adapt to 10-30t/d medium capacity plant
Continuous Type
Adapt to 30t/d and above capacity plant

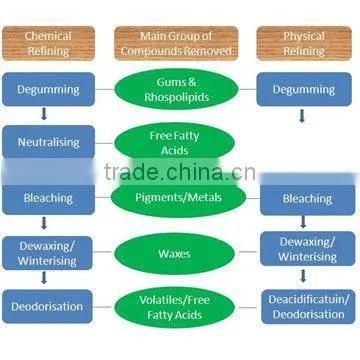

What is cooking oil machine Process?
Step 1.Degumming with water to remove the easily hydratable phospholipids and metals.
Step 2.Addition of a small amount of phosphoric or citric acid to convert the remaining non-hydralable phospholipids (Ca, Mg salts) into hydratable phospholipids.
Step 3.Neutralising of the free fatty acids with a slight excess of sodium hydroxide solution, followed by the washing out of soaps and hydrated phospholipids.
Step 4.Bleaching with natural or acid-activated clay minerals to adsorb colouring components and to decompose hydroperoxides.
Step 5.Deodorising to remove volatile components, mainly aldehydes and ketones, with low threshold values for detection by taste or smell. Deodorisation is essentially a steam distillation process carried out at low pressures (2-6 mbar) and elevated temperatures (180-220°C).

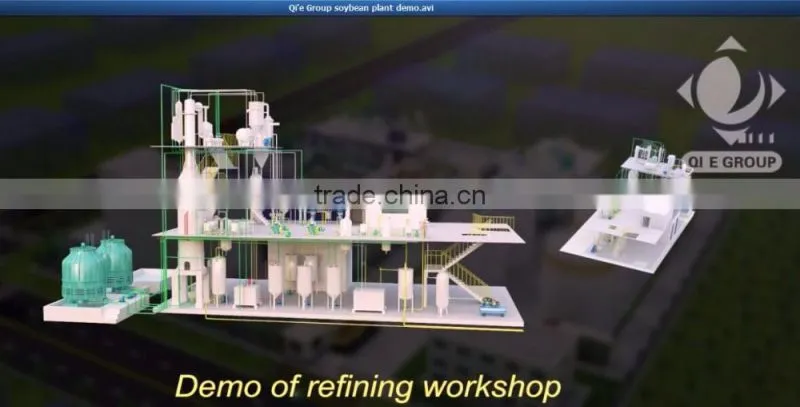

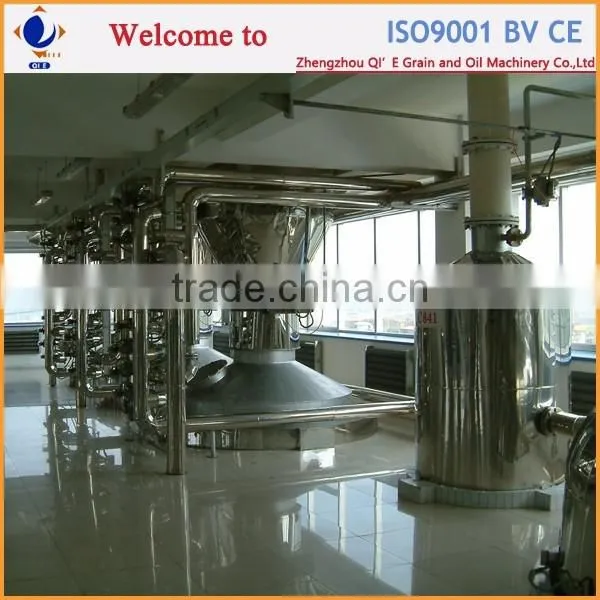

Introduce cooking oil machine
Basing on the traditional oil refining technology, Zhengzhou Qi'E Grain & Oil Machinery Co., Ltd has developed the latest combined packing layer plate deodorization soft tower and the physical and chemical mixed refining technology for crude oil of any quality. Moreover, a series of advanced technology and equipment are used, such as super wet deguming, bleaching earth automatic metering, negative pressure decoloring, high vacuum steam jet deodorization, deacidification, winterization dewaxing etc. With advanced technology, superior equipment, full-automatic control and excellent economic and technical parameters, our equipment can meet customers' different refining requirements at home and abroad.
Qi'E company can provide you with the design, installation and manufacturing of 50~1000T/D oil refining production line.

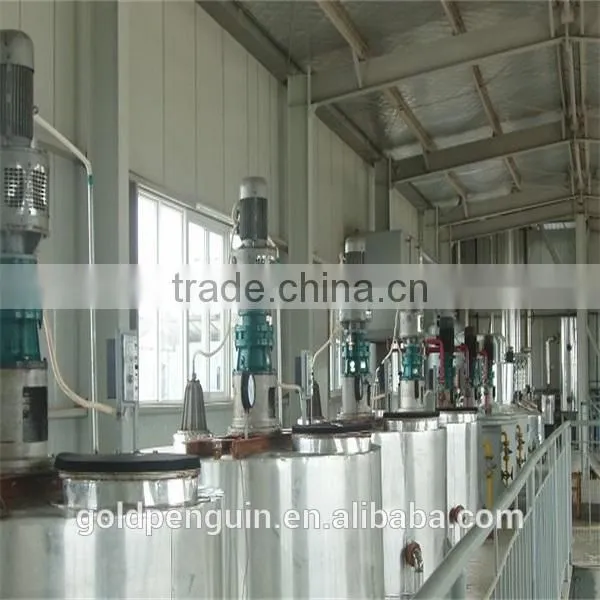

cooking oil machine Refining Tank
Under 60-70℃,it occurs acid-base neutralization reaction with sodium hydroxide ,After stirring by reduction box, it can decrease the acid value in oil and separate the impurity .The oil can be refined further.

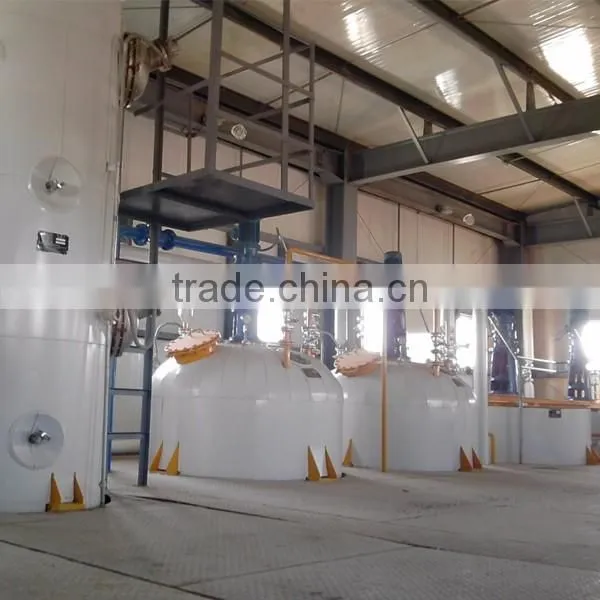

cooking oil machine Decoloration Tower
Also named bleaching, dewatering pot, it removes water from oil by vacuum. The bleaching earth is breathed into bleaching pot ,after stirring, filtrated by filter and change the color of the oil.
cooking oil machine Deodorization Tower
The qualified decolored oil enters into the spiral plate heat exchanger to recover most of the heat, and next goes to high pressure steam heat exchanger to be heated to the process temperature (240-260℃) and then enters the deodorization tower. The upper layer of combined deodorization tower is the packing structure which is mainly used to remove the odor producing components such as free fatty acid (FFA);
cooking oil machine Deodorization Tower
The bottom layer is the plate tower which is mainly for achieving the hot decoloring effect and reducing the peroxide value of the oil to zero. Oil from the deodorization tower enters into the heat exchanger to recover most of the heat and makes further heat exchange with crude oil, and then is cooled to 80-85℃ through the cooler. Add the required antioxidant and flavor agent, and then cool the oil below 50℃ and store it.
cooking oil machine Leaf Filter
Equipped with vertical leaf filter to remove used bentonite from the oil, operating conveniently and continuously , low laboring tense, keeps environment well, keeps oil residence in deposable bleaching earth in low level.
To keep the whole plant running continuously, we match with 2set of trade off leaf filter. When one filter was filled full, and the other instead of.

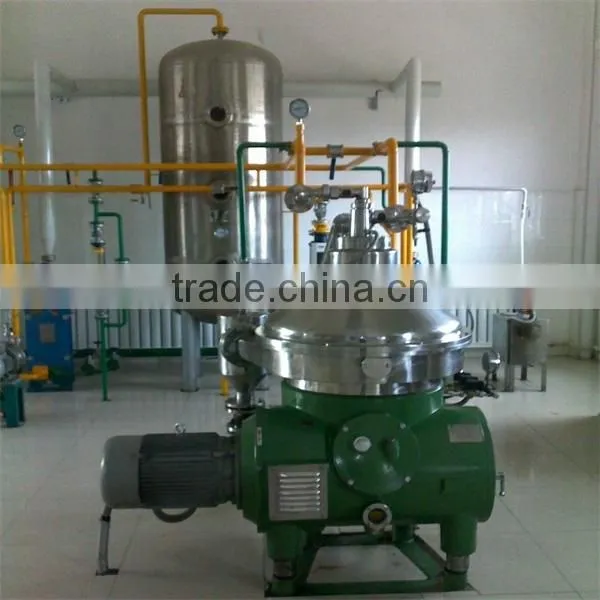

cooking oil machine Centrifuge
Electric control system:
1.Automatic deslagging,which include part deslagging and full delagging;
2.Schneider touch screen dispalyer and Simens PLC.DP connector to transport data;
3.The operation time of the centrifugue is showed and accumulative by the automatic control director.
QI'E Group Main Business
10-500T/H oil material first cleaning, drying and storage section turn-key project;
100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project;
100~300TPD Solvent extraction workshop turnkey project (Drag chain extractor, Rotocel extractor, loop type extractor, DTDC separated machine, negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate);
30-1000T/D oil continuous grade one or two physical (chemical) refining production line;
20-3000T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project;
10-200T/D Fatty acid esterification production cooking oil production line.
Palm Oil Mill Section
1TPH Palm fresh fruit bunch (FFB) Press project equipment manufacture, installation, and Turn-key Project;
2T/H-10T/H Palm fresh fruit bunch (FFB) Press project equipment manufacture, installation, and Turn-key Project;
15T/H-30T/H Palm fresh fruit bunch (FFB) Press project equipment manufacture, installation, and Turn-key Project;
40T/H-100T/H Palm fresh fruit bunch (FFB) Press project equipment manufacture, installation, and Turn-key Project;
5T/D-1000T/D Palm oil refinery project production;
5T/D-1000T/D Palm oil fractionation project production;
Palm oil mill equipment remodeling and maintenance;
Equipment spare part supply;
Project design and technology support.
cooking oil machine equipment adapt to many materials, such as sunflower, peanut, soybean, corn germ, castore seed, sesame, rapeseed ,rice bran, coconut and so on.
If you have any needs, please contact with you, and without any hesitation.
Contact Us
- Zhengzhou Qie Grain And Oil Machinery Co., Ltd.
- Contact nameChristine Miao
- Phone86-0371-55021219
- AddressThe Crossing of Huagong Road and Changchun Road Zhengzhou,Henan
