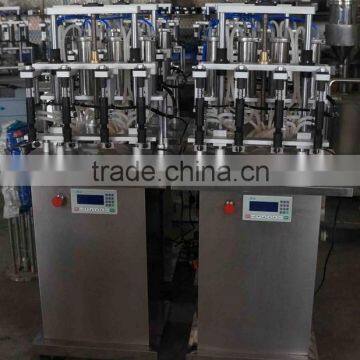

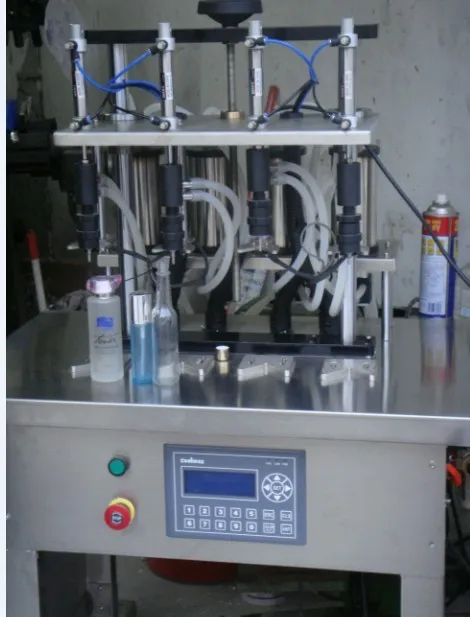

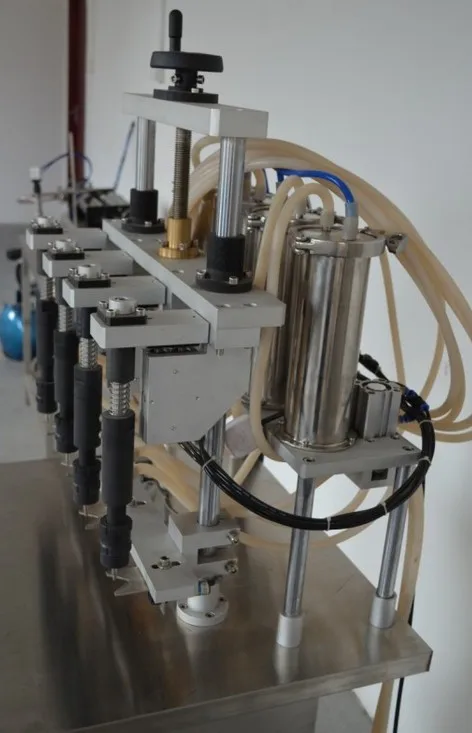

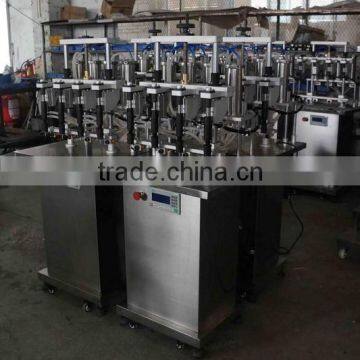

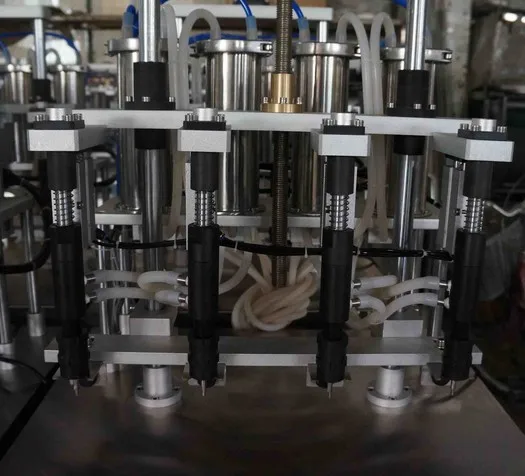

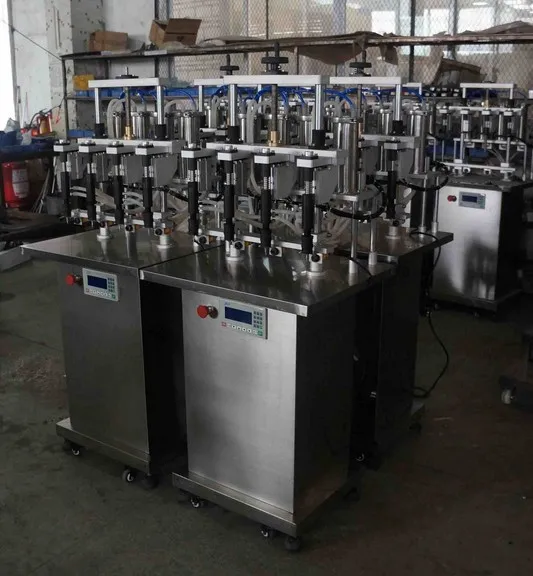

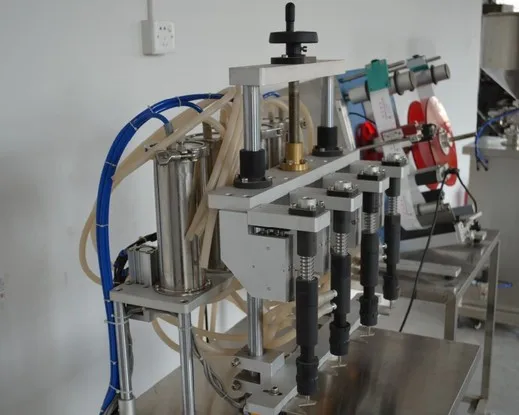

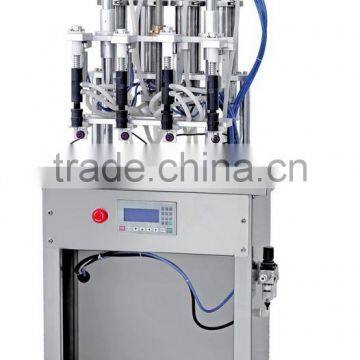

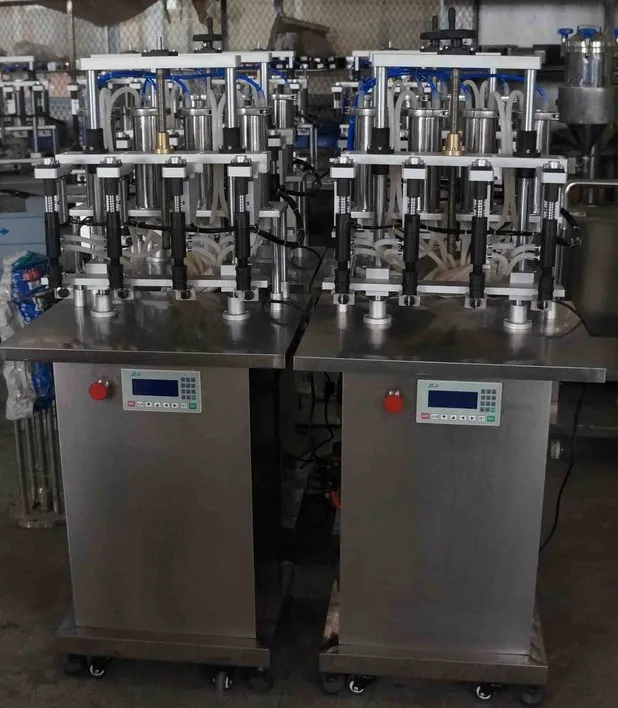

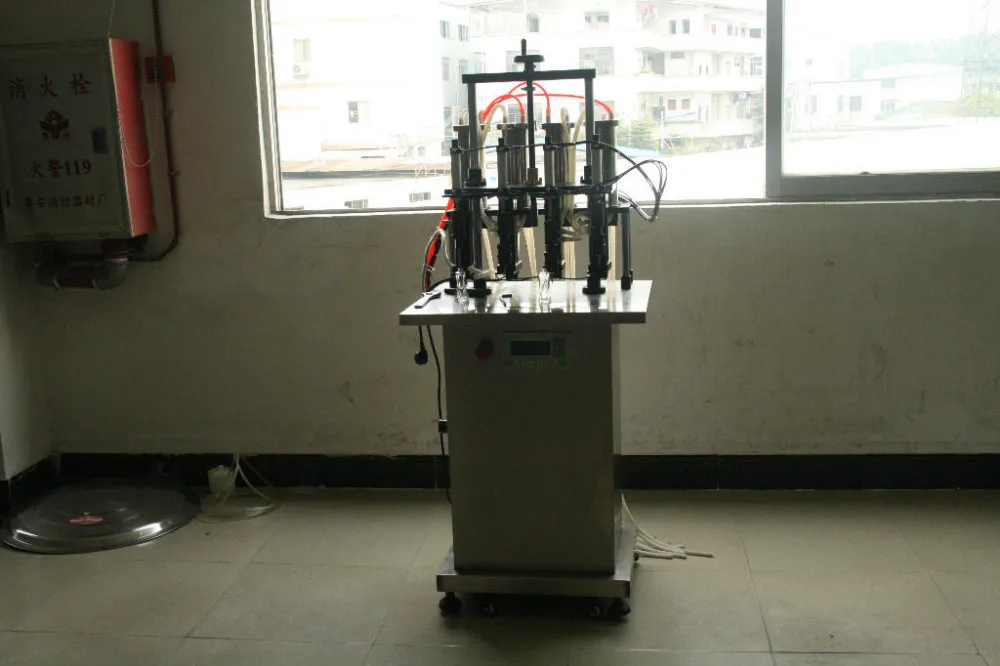

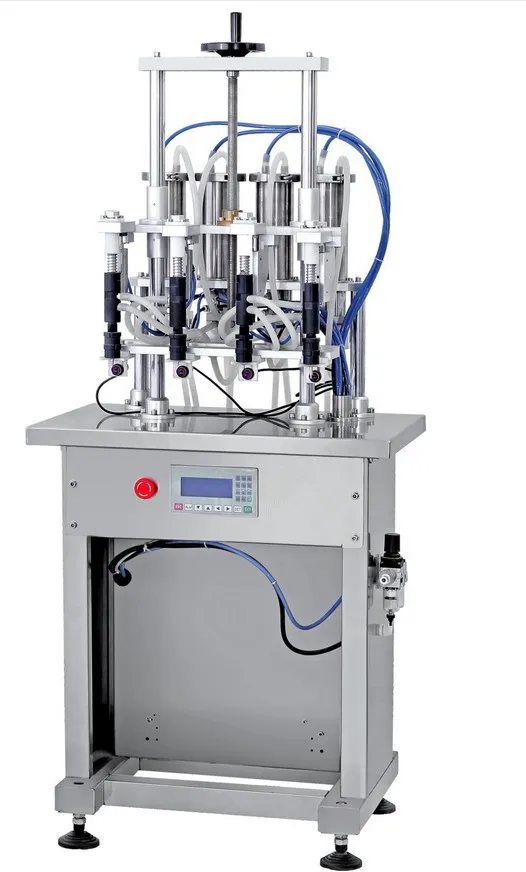

PLC 4 head automatic spray perfume filling machine
Working principle

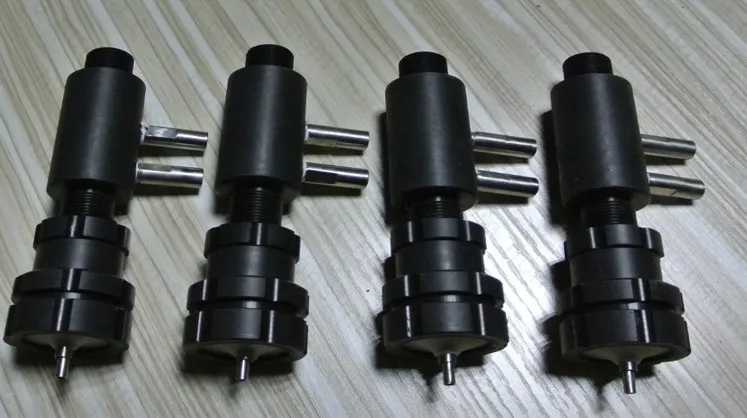

A. The work principle of this machine(discharge material by itself type)is: switch on the handle valve to connect the air source. Put the filling container right under the filling head, make use of the spring force of the baffle to make filling container upright and seal with filling head. At this time cam open mechanical valve, make the valve of vacuum bottle closed and the suction valve open, make the vacuum generator generate vacuum(negative pressure)
B. vacuum system formed(vacuum bottle-filling head-filling container-silica gel tube of filling head).vacuum suction drive the materials filling into the container. the height of filling the materials in the container rise to the height of the external wrapped tube of the filling head. As the vacuum suction get through the external wrapped tube and suck up materials in the container into vacuum bottle and keep materials in the container a certain height all the time until the filling container removed. the vacuum generator stopped occurring vacuum as mechanical valve closed. suction tube closed. valve of the vacuum bottle opened, materials reflow into the barrel due to gravity, and one time cycle filling finished.
Function
A.This machine adopt fully pneumatic control so it is very suitable for the filling of high foam materials and different capacity of containers.
B. The design concept of this machine which developed by our company is: through increase pressure on the filling head, vacuum generator achieve a partial sealing environment in the reflow liquid bottle and filling container. Thus generate a partial vacuum(negative pressure).through vacuum suction to achieve filling process.
C. This machine is an ideal type machine which can reach the ideal filling speed and effect after practical commissioning the machine as according to size of the filling container.
Feature
1.Negative pressure suction fluid filling,product filling capacity based on liquid level height.

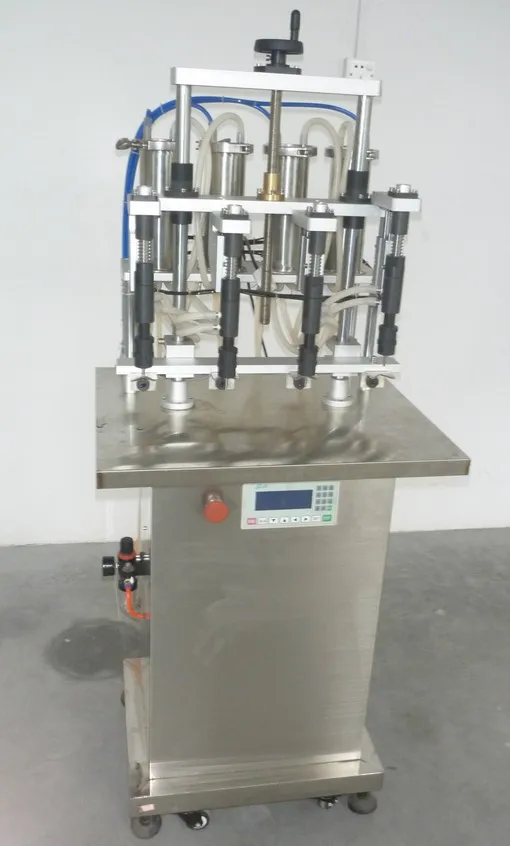

2.Equipped with wheel,convenient to move.
3.Suitable for glass bottle,or plastic bottles that is not easy to be out of shape after vacuumizing.
4.Convenient adjustment,operation and maintenance.
Scope
Perfume filling machine is used for filling floral water, perfume and other water-bassed materials.

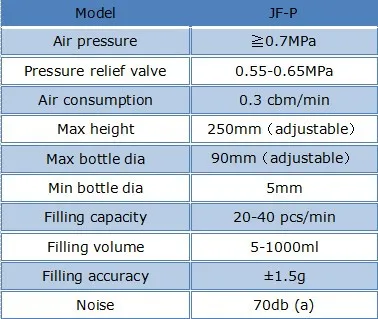

Technical parameters
Note : In case of inconformity of the data in the form due to technical improvement or customization , the real object shall prevail.
Delivery
Shipping Details
Usually by sea
About Us
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
About Us
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Service
1,We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you .
2,Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3,If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4,We offer the video to you teach you how to use ,fix ,maintain this machine.
5,When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
