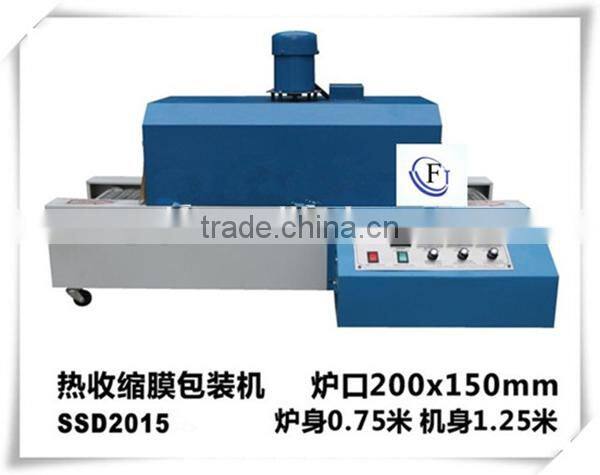

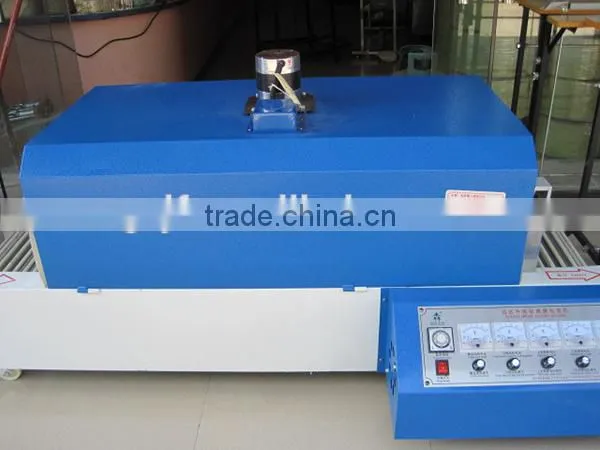

PVC POF Film Heating Shrink Packaging Machine Used for Bottle
Working principle
The shrink packaging machine works is relatively simple, the furnace chamber through quartz heating tubes produce heat, the fan inside the furnace chamber is filled with the lower temperature uniformity of hot air from the furnace intelligent temperature control instrument control indoor temperature and keep a constant temperature , According to product shrinkage effect can be independently adjusted above and below the two heat pipe heat intensity, so that product contraction effect to perfection. Products through the chain-type conveyor belt into the furnace ch amber, under high temperature shrink film shrink and close to the surface of the article.
Feature
Surface roasts the paint processing the machine enclosure, elegant appearance, corrosion resistance.
Using quartz tube heating, heating up fast.
Strong shutter centrifugal wind wheel makes the hot air from bottom to top to radiate heat cycle, more uniform.
Optimized circuit design, temperature control, temperature reaches set temperature after stop heating, managing electric energy.
Shrinkage furnace above and below the two set of heat pipes can be adjusted independently calorific intensity, perfect balance contraction effect.
High power dc motor, stepless speed regulation, and can work continuously for a long time, and the operation is stable and reliable.
Furnace chamber adopts hatchback mechanical structure design, make the maintenance easy and convenient.
Stainless mesh conveyor belt, suitable for small heat shrinkable packaging products.
On POF film, PVC film, heat shrinkable labels are perfect shrinkable packaging.
Scope of application
Tableware, small paper, small toys, books and periodicals, mosquito repellent incense, audio and video products, CD, vermicelli, hardware tools, medicine box, cosmetics, food, medicine, daily chemical, hardware industry product POF film, PVC film shrink packaging.
Suitable for product size (length * width) in 150 * 100 mm below the product packaging.
Main technical parameters
Name | Shrink packing machine |
Model | SSD2015 |
Specification | 200x150 |
Packaging products applicable specifications | 190*140*N(W*H*L) |
Applicable packing materials | PVC,POF,PET,PP,PA,OPS |
Temperature range | 0-200℃(ajustable) |
Conveyor speed | 0-12m/min(ajustable) |
Voltage | 220V |
Current | 20A |
Power | 4.4KW |
Tunnel size | 750x200x150mm(L*W*H) |
Mahcine size | 1250x525x660mm(L*W*H) |
Mode of transport | Chain/L, Net /W, (non-standard optional teflon/T, net wear chain type/WL) |
Conveying work height | 14cm |
Conveying load | 3KG |
Machine weight | 40KG |
Packing size | 0.45CBM |
Hot air machine | 1pc |
Packing & Delivery
1.Packing:the seller packs all of the machine and parts in the firm case that suitable for sea shipping.
2.Delivery date:20-30 working days after receive the deposit.
