2015 TDY-380 Coder Machine
Specifications
Ink Coding Machine
1.multifunctional coder
2.accurate ink coder
3.easy to operate

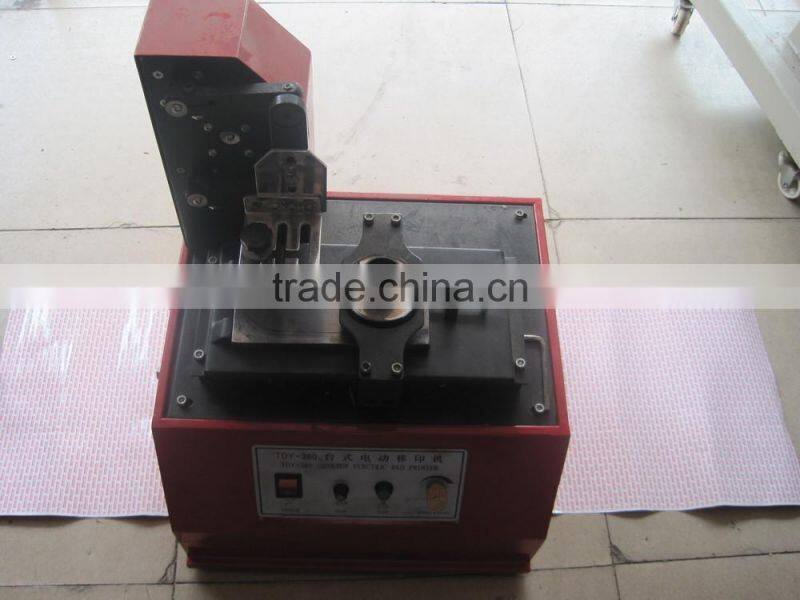

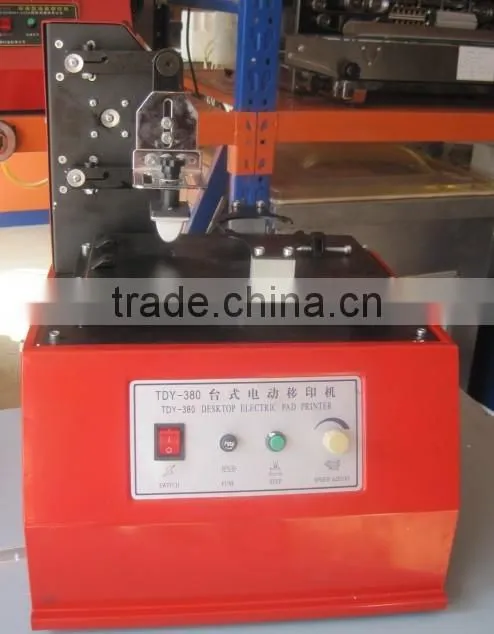

TDY-380 series desktop electric printing machine is the improvement and development of a new generation of
models, the series of machine operation with the arc of 90 degrees with the linear reciprocating movement mode: type TDY-380 using the cartridge device, the operation is more convenient, health, clean, installed in
the cartridge, ink is not easy leakage, easy drying, saving ink, thinner, printing supplies, and increase the printing plate area, increase the preset information; TDY-380 type adopts high-strength scraper device,
printing speed, her handsome, clear, and the scraper, printing plate adjustment is very convenient. The series
models can be of different materials of various shapes of the concave-convex surface printing, and adopts electronic control stepless speed regulation function, can according to the
operator's proficiency, adjustment of printing speed of the printing operation.
Available in a variety of metal, plastic, glass, ceramics and other materials of different products in any position and on the surface of printed text, production date, shelf life, bar code. Suitable for food, beverages, cosmetics
and other small commodities products on a variety of sign print.
Voltage | 220v 50Hz |
Power | 50w |
Working speed | 20-60/min |
Machine size | 534*405*560mm |
G.W. | 21kg |
N.W. | 19kg |
Method of operation
1.Put the machine on the flat ground, the power supply is switched on, and a good grounding.
2.According to the electric switch, so that the print head is moved to the upper part of the worktable, unscrew

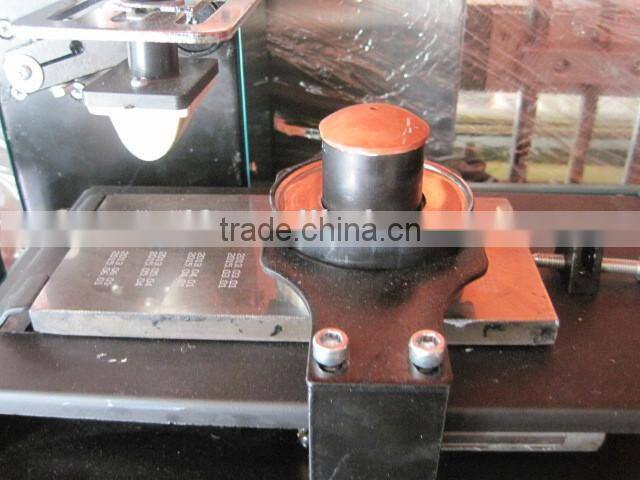

thescrews on the cartridge pressure ring, first remove the cartridge's ring, and then remove the cartridge unscrewthe matrix plate fixation screws and locking hand wheel, the prepared matrix steel friction plate wip clean, into the machine, and lock.
3.The cartridge is clean, check the blade and inner wall, without any attachment to sand: in matrix steel cartridge, cartridge under mouth has two small grooves on the cutter fixing frame reinforcement, mount section ring, adjust cartridge into the cartridge screw, compaction, until you can scrape ink for check.
4. The 4 configuration will be good ink (ink adding diluent, dilution and can automatically flow state) is injected
into the cartridge, ink volume 1/3 is appropriate, cover up the ink box cover.
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
If you are not satisfied, Don't be disappointed,u can tell us ur request and we will recommend one to u. And also can customized, our engineer can exclusively design for u.Thank u for ur inquiry !
