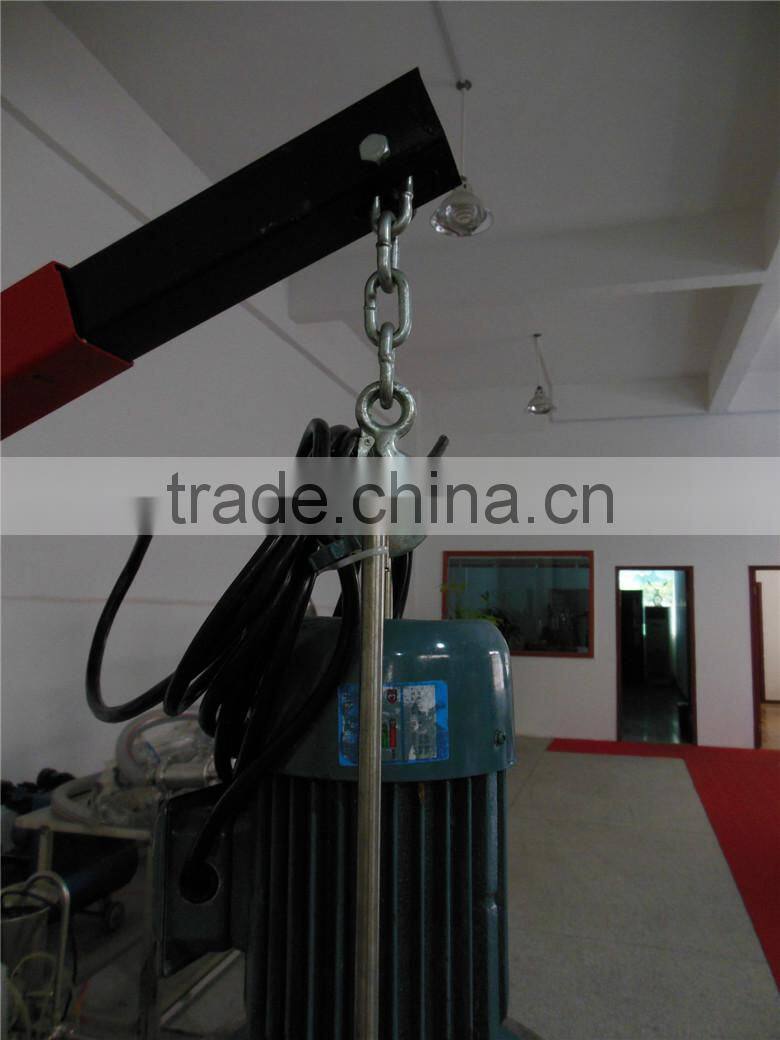

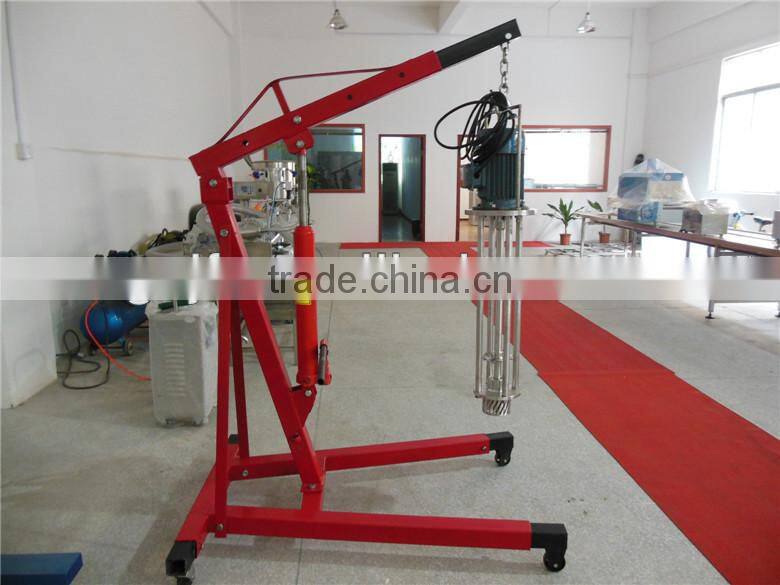

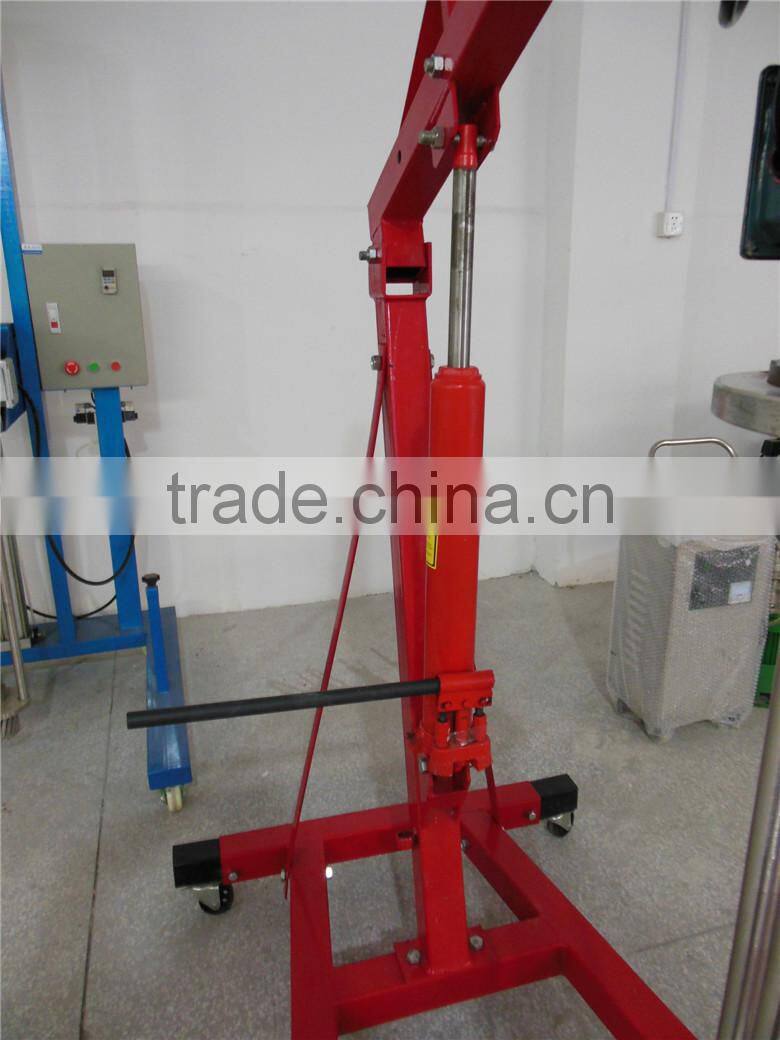

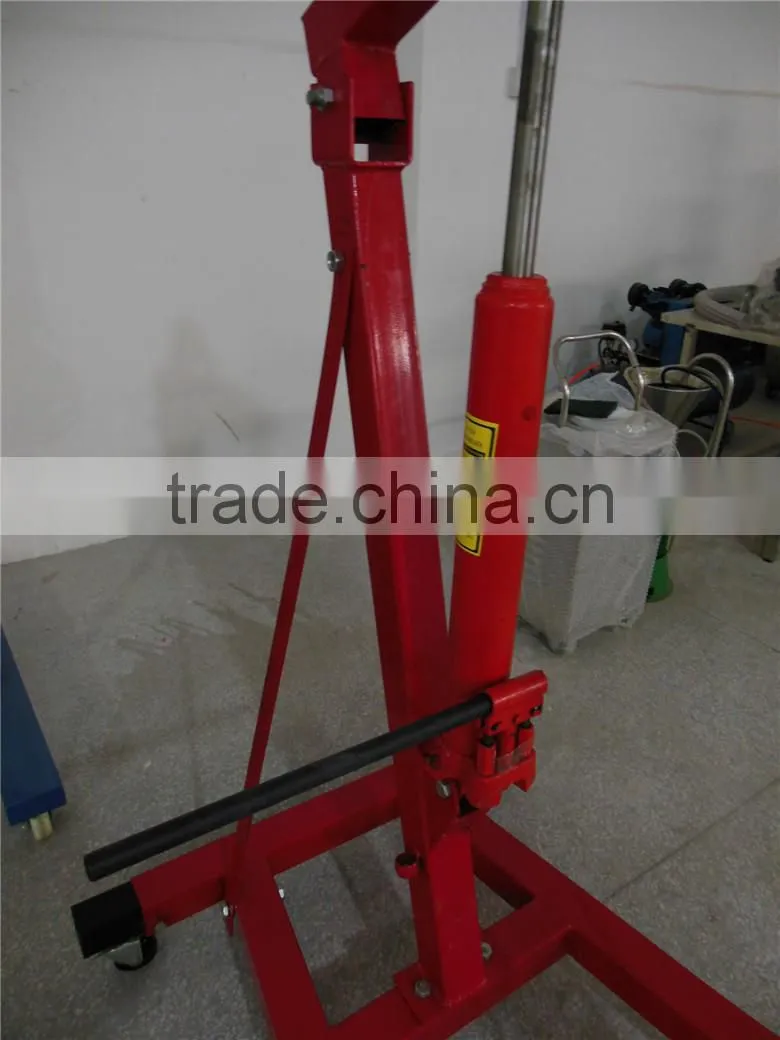

4.0kw Portable high shear liquid/ cream homogenizer with red hanger
- 300 Set / Sets per Month
- Gungzhou
- Credit Card PayPal
Product Details
Condition: | New | Type: | Grinder | Product Type: | Cosmetic |
Place of Origin: | Guangdong, China | Brand Name: | Jinfeng | Model Number: | JF-L |
Voltage: | 220V 380V | Power(W): | 1.5-22 | Dimension(L*W*H): | Customized |
Weight: | Customized | Warranty: | 1 year |
Product Description
Specifications
high shear emulsifier1.Function: mix, emulsify, homogenize
2.used for cream ,cosmatic
3.granule diameter reach 1-2um
[Product name] Mobile Crane Homogenizer
[Product introduce]

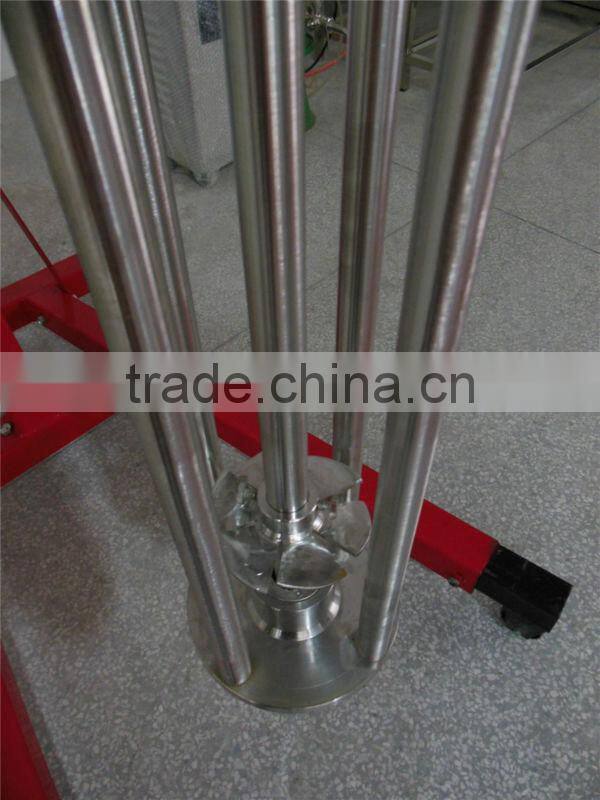

This product is suitable for homogeneous, low viscosity of emulsion dispersion and emulsion manufacture, suitable
for the majority of the formula, special the rotor and the stator to generate strong shearing, grinding, impact and
convection, the emulsion particles reach the steady state (1-2m)
Installation considerations
² Mechanical length of this machine (L) size of standard length, if need to lengthen or shorten can be matched
with.
² The best position of mechanical length choice for emulsified frame slot, at level 60% is the best effective depth.
² Please refer to the selected emulsifier when: capacity, viscosity, treatment time, the reaction temperature, the
purpose, the company business department.
² Emulsification machine water bearing with self-lubricating bearing, boot device no liquid below the water bearing, to avoid causing bearing damage.
² The correct parameters to provide the material object as the standard, the data is subject to change, without
notice.
Technical parameters
Model | JF-C1.5 | JF-C4 | JF-C7.5 | JF-C11 | JF-C22 |
Power | 1.5 | 4 | 7.5 | 11 | 22 |
Speed | 2880 rpm | 2880 rpm | 2880 rpm | 2880 rpm | 2880 rpm |
Width (mm) | 100 | 115 | 130 | 140 | 220 |
Length (mm) | 592 | 895 | 1168 | 1168 | 1498 |
Max volume | 20-200L | 50-300L | 100-1000L | 150-1000L | 500-2000L |
Weight | 41kg | 73kg | 168kg | 275kg | 523kg |
