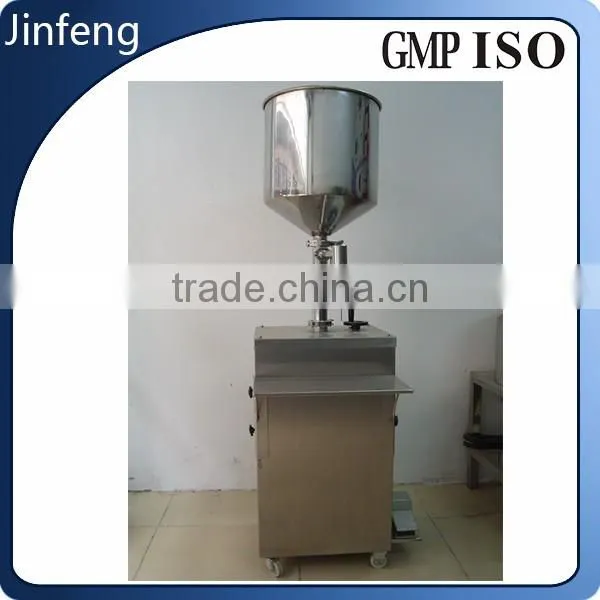

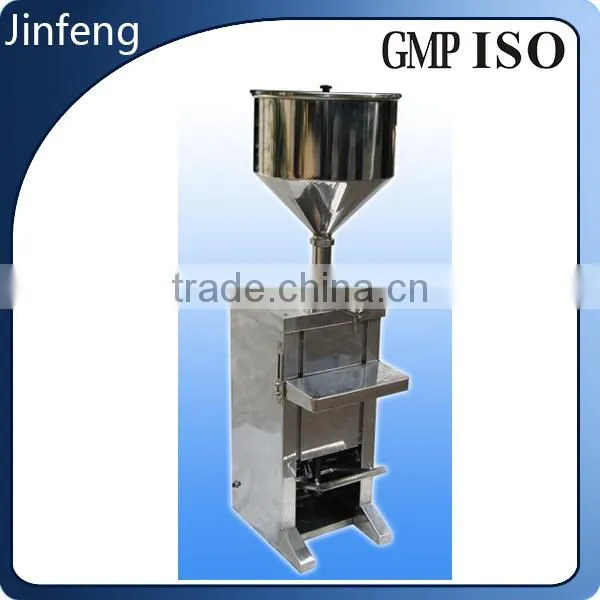

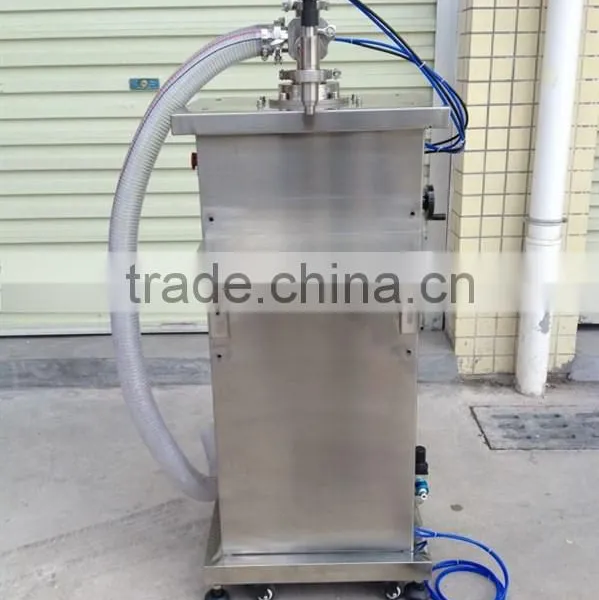

Pneumatic Paste Liquid Piston Push Rod Filling Machine
Working principle

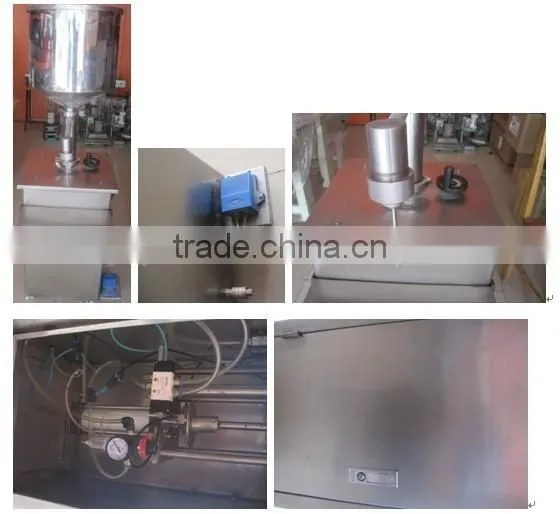

This machine adopts the piston push rod structure, when the cylinder to generate strong force to drive the piston head. When the master cylinder back pull plug into the mouth to open the valve, outlet valve closed, due to memory in cylinder pressure, the material will be sucked into the cylinder, the suction stroke. The suction stroke is completed, the main cylinder will be to push the piston head, the inlet valve is closed, the outlet valve open. Boring is introduced the cylinder piston port. Through the outlet to the container for filling, the filling stroke.

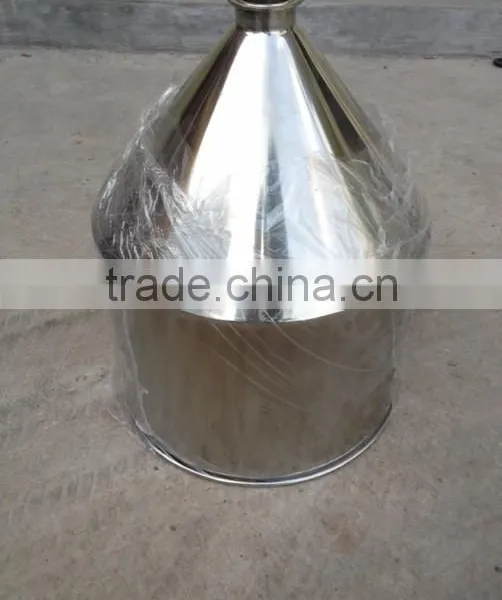

The filling process includes: Feed hopper ,Air discharge ,Cylinder suction ,Filling material.
Technical parameters
Model |
JF-60 |
JF-100 |
JF-500 |
JF-1000 |
JF-2500 |
JF-5000 |
Air pressure |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
Filling range |
5-60ml |
10-100ml |
50-500ml |
100-1000ml |
100-2500ml |
500-5000ml |
Filling speed |
≤30b/min |
≤30b/min |
≤20b/min |
≤20b/min |
≤15b/min |
≤15b/min |
Filling head |
1 head |
1 head |
1 head |
1 head |
1 head |
1 head |
Filling error |
±0.3% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Machine material |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
Machine weight |
13kg |
16kg |
18kg |
22kg |
28kg |
35kg |
Machine size |
620*180*220 |
620*180*220 |
620*180*220 |
720*180*240 |
720*180*240 |
1000*200*280 |
Packing size |
700*250*300 |
700*250*300 |
700*250*300 |
800*250*320 |
800*250*320 |
1200*300*350 |
Packing |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
Packing & Delivery
1.Packing:the seller packs all of the machine and parts in the firm case that suitable for sea shipping.
2.Delivery date:20-30 working days after receive the deposit.
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
FAQ
Q1:Are you manufacture or trading company?
A1:We are factory, we have our own design team and own workshop.
Q2:What kind of payment terms do we accept?
A2:40%T/T as advance payment,60% before shipment.we also accept Western Union and Money Gram.
Q3:How much is the transportation freight?
A3:The freight depends on the quantity, weight and size ,also the destination port.
Q4:How about the working life of machine?
A4:Our machine can be used for over 5 years.
Q5:How can I trust your company and ensure to get the goods if order from you?
A5:We are Alibaba legitimate certification company(VIP).
Q6:How to ensure that I received the machine undamaged?
A6:Our package is standard for shipping.
Q7:What's your delivery time?
A7:20-30 working days according to your quantity.
Q8:Can I have my own customized product?
A8:Yes, your customized requirements for logo, design and mark etc.are very welcome.
Q9:Do you provide installation & debugging service?
A9:Yeah,we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding.
Factory
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Our Services
1. We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you.
2. Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3. If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4. We offer the video to you teach you how to use ,fix ,maintain this machine.
5. When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
