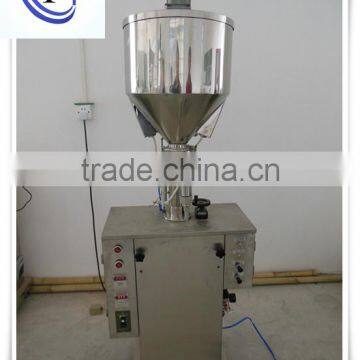

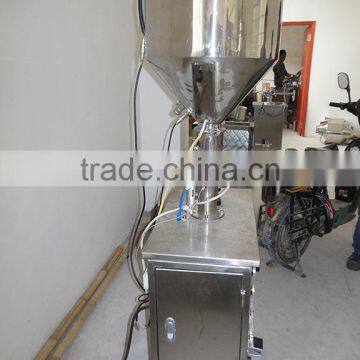

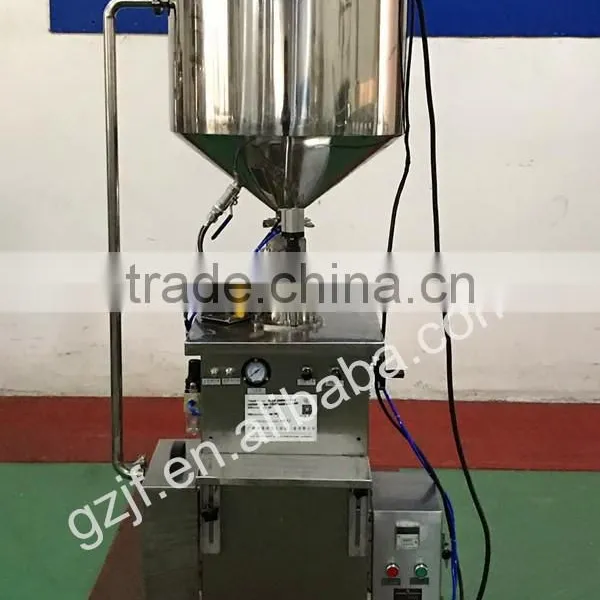

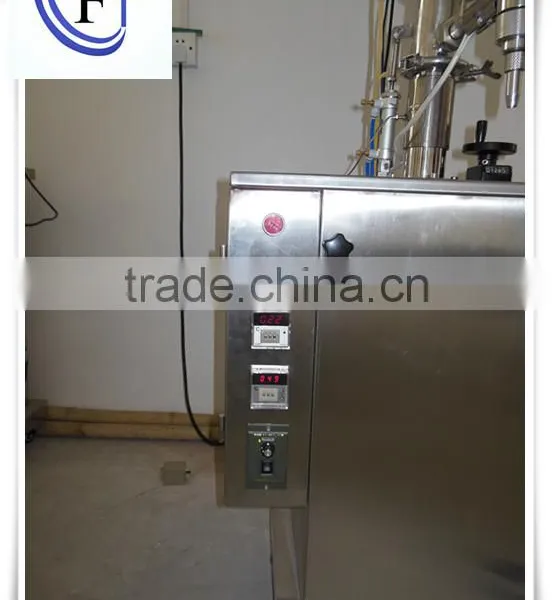

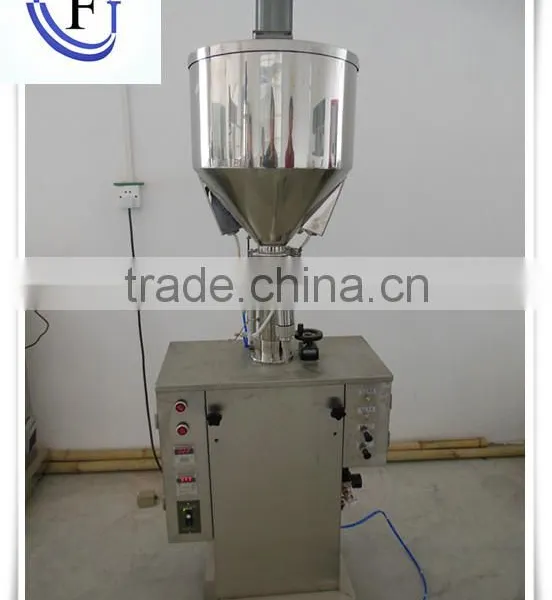

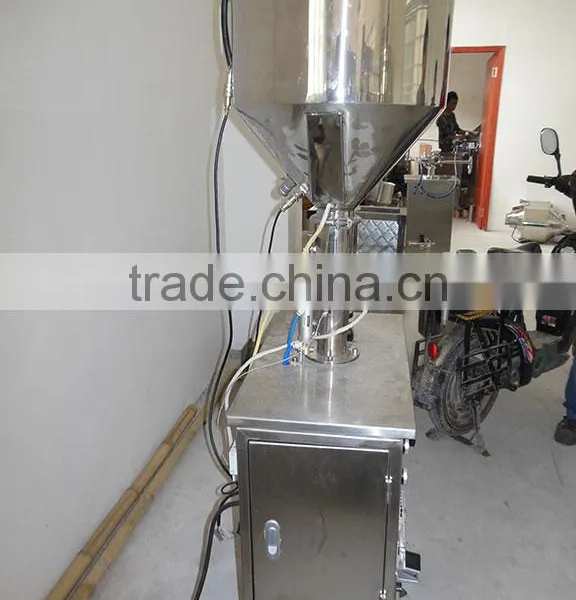

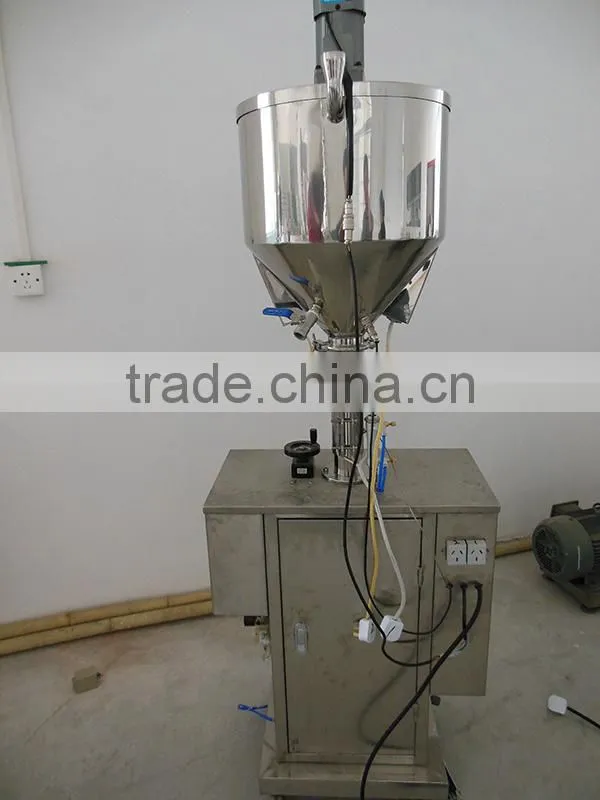

Vertical type constant temperature liquid wax filling machine with mixer and hopper
| PRODUCT DESCRIPTIONS |
| Type | Filling Machine |
| Condition | New |
| Application | Beverage, Commodity, Medical, Chemical |
| Packaging Type | Cartons |
| Packaging Material | Paper,Wood |
| Automatic Grade | Automatic |
| Driven Type | Penumatic |
| Voltage | 0V |
| Power | 0kw |
| Brand Name | Jinfeng |
| Size | Customized |
| Weight | Customized |
| Packing | The Seller packs all of the machine and parts in the firm case that suitable for sea shipping. |
| MOQ | 1 set |
| Export port | Guangzhou |
| Supply Ability | 500 sets per month |
| Delivery Date | 10-20 working days after receive the deposit |
| Payment Term | T/T,50% deposit, 50% balance before we delivery the machine |
| Trade term | EXW,FOB(Guangzhou) |
| Place of Origin | Guangdong China (Mainland) |
| Certification | GMP standard |
| After-sales Service Provided | No overseas service provided |

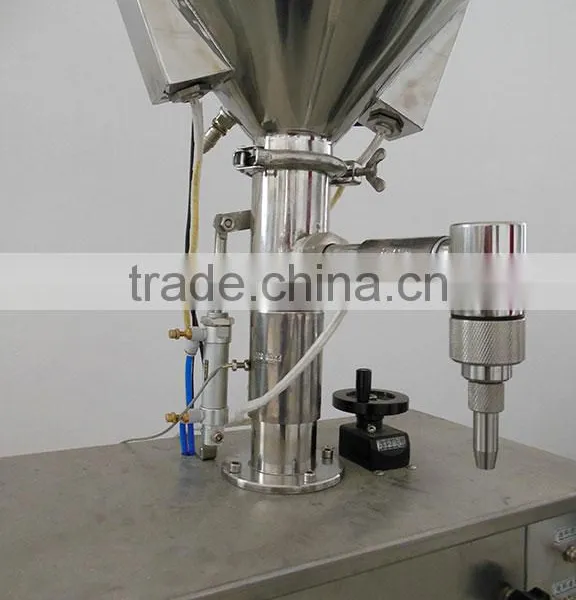

This machine adopts the piston push rod structure, when the cylinder to generate strong force to drive the piston head. When the master cylinder back pull plug into the mouth to open the valve, outlet valve closed, due to memory in cylinder pressure, the material will be sucked into the cylinder, the suction stroke. The suction stroke is completed, the main cylinder will be to push the piston head, the inlet valve is closed, the outlet valve open. Boring is introduced the cylinder piston port. Through the outlet to the container for filling, the filling stroke.

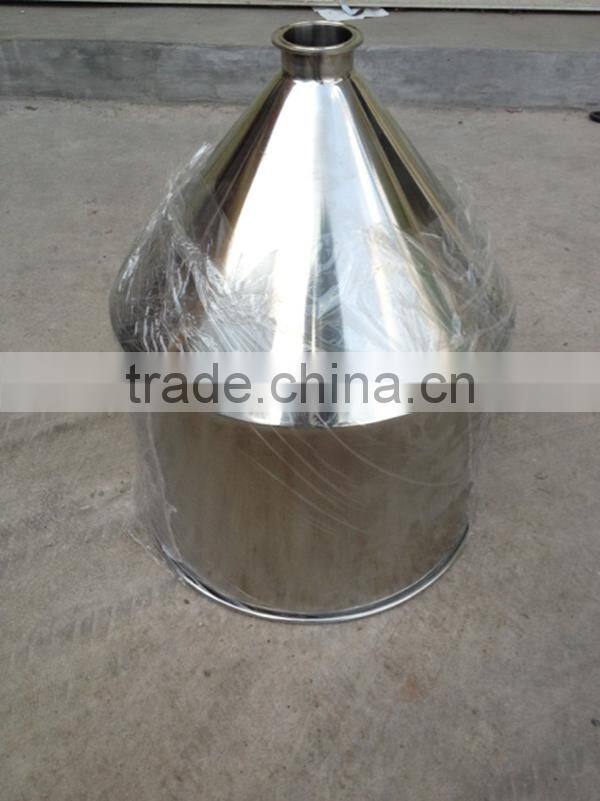

The filling process includes: 1. Feed hopper 2.Air discharge 3.Cylinder suction 3.Filling material
>>>>> Technical parameters
Model |
JF-60 |
JF-100 |
JF-500 |
JF-1000 |
JF-2500 |
JF-5000 |
Air pressure |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
0.4-0.6MPa |
Filling range |
5-60ml |
10-100ml |
50-500ml |
100-1000ml |
100-2500ml |
500-5000ml |
Filling speed |
≤30b/min |
≤30b/min |
≤20b/min |
≤20b/min |
≤15b/min |
≤15b/min |
Filling head |
1 head |
1 head |
1 head |
1 head |
1 head |
1 head |
Filling error |
±0.3% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Machine material |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
Machine weight |
13kg |
16kg |
18kg |
22kg |
28kg |
35kg |
Machine size |
620*180*220 |
620*180*220 |
620*180*220 |
720*180*240 |
720*180*240 |
1000*200*280 |
Packing size |
700*250*300 |
700*250*300 |
700*250*300 |
800*250*320 |
800*250*320 |
1200*300*350 |
Packing |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
Wooden case |
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real objects shall prevail.
>>>>> Descriptions
Semi-automatic pneumatic paste liquid filling machine is a paste, liquid filling equipment of our latest development. The equipment is according to the domestic and foreign advanced filling machine technology to upgrade and innovation of products, pro - new horizontal design, lightweight and convenient. The equipment adopts pneumatic components (cylinder) and the piston push rod structure, since the work cylinder to form a vacuum cavity, negative pressure absorbing materials. So there can be filling viscous, poor flow ability material.
>>>>> Features
1.Control component and actuator (cylinder) are used in flat shot (Germany FESTO/ Taiwan AIRTAC, domestic SNS) element. Material contact part adopts 304 stainless steel materials, 316L. To meet the requirement of GMP
2.The use of compressed air as the power source, for the use of power, the machine is running without collision and hard friction, therefore suitable in a riot requirements occasions, has higher security
3.The constant volume metering and the piston push rod structure, filling the high precision of the equipment, small error (± 0.5%)
4.With adjustment handle of filling volume, the filling speed can be adjusted at, high filling accuracy
5.With automatic feeding, filling, uniform discharge, emergency stop, the filling quantity and speed can be adjusted utility function

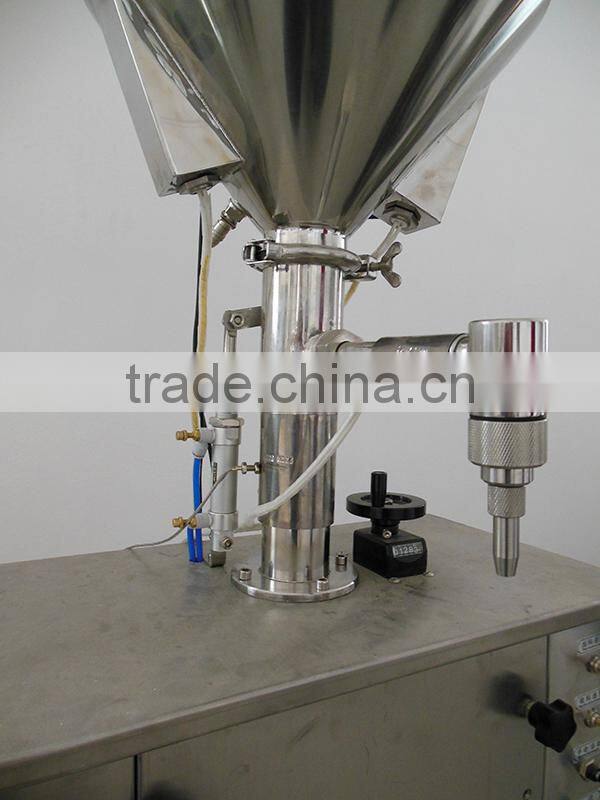

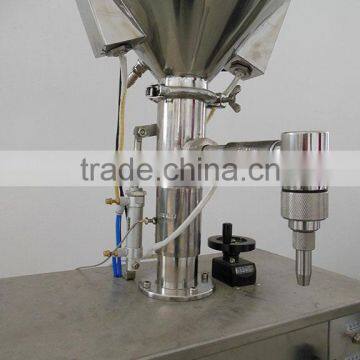

6.Filling head adopts a cylinder valve or a mechanical valve, leakproof plugging head is provided with a filling head, to prevent the filling head wiredrawing, dropping material
7.All parts are connected by a hoop, convenient assembly disassembly, cleaning, maintenance, assembly
8.The machine set (manual) and (automatic). (manual) by foot control filling, (automatic) is a continuous filling machine
