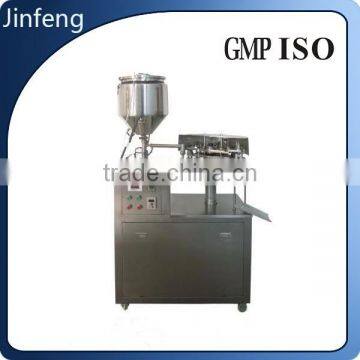

Equipment From China For The Small Business Tube Filling And Sealing Machine
| PRODUCT DESCRIPTIONS |
| Type | Sealing machine |
| Application | Food, Beverage, Chemical, Machinery & Hardware |
| Packaging Type | Tube |
| Packaging Material | Metal |
| Driven Type | Electric & Penumatic |
| Automatic Grade | Semi-automatic |
| Voltage | 220V |
| Power | 1100W |
| Place of Origin | Guangdong China (Mainland) |
| Brand Name | Jinfeng |
| Model Number | GZJ-A |
| Dimension(L*W*H): | 1000*600*1700(mm) |
| Weight | 400kg |
| Packing | The Seller packs all of the machine and parts in the firm case that suitable for sea shipping. |
| MOQ | 1 set |
| Export port | Guangzhou |
| Supply Ability | 500 sets per month |
| Delivery Date | 20-30 working days after receive the deposit |
| Payment Term | T/T,50% deposit, 50% balance before we delivery the machine |
| Trade term | EXW,FOB(Guangzhou) |
>>>>> Technical parameters
Model |
GZJ-A |
Voltage |
AC 220V±10%50Hz |
Temperature |
5~50℃ |
Filling range |
5-30 25-125 |
Measurement error |
<2% |
Power |
1.1kw |
Compressed air |
0.6--0.7Mpa |
Air supply |
≥0.2M3/min |
Working capacity |
10-50 b/min(Adjust) |
Machine size |
1000*600*1700(mm) |
Machine weight |
400kg |
>>>>> Use
GZJ-A type metal tube filling and sealing machine, mainly used for metal hose for quantitative filling, packaging materials and sealing. Widely used in pharmaceutical, chemical, food, chemical and other industries Product packaging. Such as: ointment, AB glue, adhesive, chloroprene rubber, epoxy, skin cream, hair coloring agent, toothpaste, shoe polish, liquid or paste material filling and sealing. Artificial metal hose into the indexing coil seat (16 stations), using a mechanical driving automatic indexing. Automatic detection, confirmed the tube and inserted correctly, filling system began to automatic measuring and filling, then seventy percent off or sixty percent off two-way sealing, printing batch number, product exit.
>>>>> Feature
The filling speed and the measurement precision can be conveniently adjusted, the adjustment of high precision, good stability. Metal hose filling replacement base can be applicable to various specifications of the tail, sealing appearance neat, tight sealing. The machine where the material contact parts are made of high quality stainless steel material.
| PRODUCT SHOW |
| MORE PRODUCTS FOR YOU TO CHOOSE |
About Us
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
Jinfeng focuses on creating value for customers. We not only provide installation service, but also help customers design and select equipment according to existing sites. After-sales Department specifically organizes clients to carry out debugging. We also offer one-year warranty and lifetime maintenance. The after-sales hotline is opening the whole day and we are willing to provide consulting service for you. We value the good relationship with customers. We serve customers in domestic and international markets, and have won a good reputation. "With credit to survive and develop" is our philosophy.

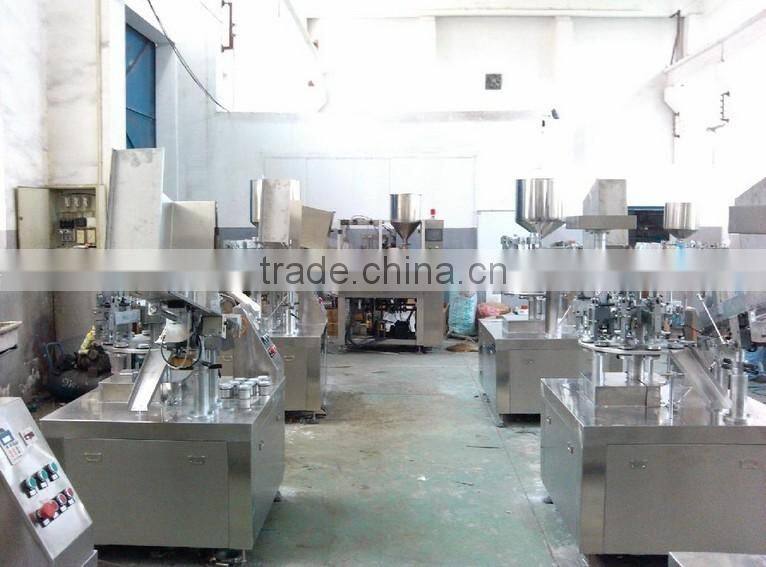

| WORKSHOP OVERVIEW |
| PACKAGING & SHIPPING |
Package Detail:
- Wooden case / carton
Shipping Details:
- Usually by sea
Delivery Time:
- 20-25 working days after received the deposit
| OUR MARKETS |
| CONTACTS |
