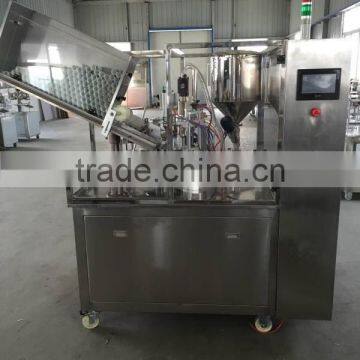

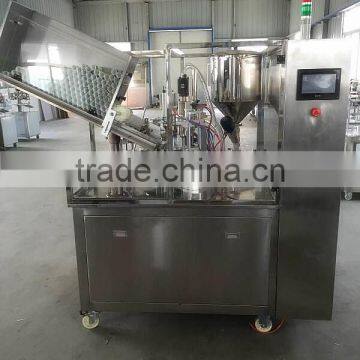

Aluminum Cosmetic & Toothpaste Tube Filling & Sealing Machine
Overview and Use
JF-MC Plastic (composite) hose and sealing machine is mainly used for a driving principle. Use segmentation mechanism driven turntable mounted fixture for intermittent operation, automatic filling and complete internal and external heating, sealing, play yards, trimming, finished withdraw a series of functions. Filling accurate measurement, the heating time is stable, adjustable, sealing beautiful appearance, neat, strong, health, trimming smooth.
The machine is set for 10-bit, in addition to the artificial tube, the other can be done automatically. Stable and reliable, no noise and other pollution.
Where the whole contact material and certain related parts are made of high quality stainless steel production, the need to clean parts are made of quick-change device, easy washable. Where some material need heating insulation, which can be equipped with external barrel heating thermostat. Any use of plastic pipe and composite pipe materials as a packaging material, you can rest assured that the choice of aircraft. Cosmetics industry, medicine, adhesive industry, shoe polish and other industries as well as other relevant sectors chosen a good product.
Suitable for: oils, hair care, skin care category, cosmetics, cleaning, detergent, toothpaste, glue, syrup, liquid alcohol
Applicable industries: cosmetic, pharmaceutical, chemical
The main application of technical invention
1.Plastic (composite) hose in the heating system, using electric copper block heat and synchronous, hot air nozzle inner wall of the tube evenly heated through. Than in the past using only the outside of the tube heating method to learn advanced a lot. Sealing fastness also increased significantly. The two methods were compared, the outer heating, wall heat from outside to inside, and outside the big error, especially tube wall temperature is certainly lower than the outer wall, and sealing and pressure in the process of code, often caused by adhesion or sealing fastness instability is a major flaw, greatly improving the sealing pressure and code quality.
2.The machine adopts external heating nip reciprocating scissors principle, to pass on the road for a good bit internal heating pipes in the wall and then external heating to heat the plastic wall conditions further improved, creating for subsequent sealing, pressure code a very perfect sealing conditions.

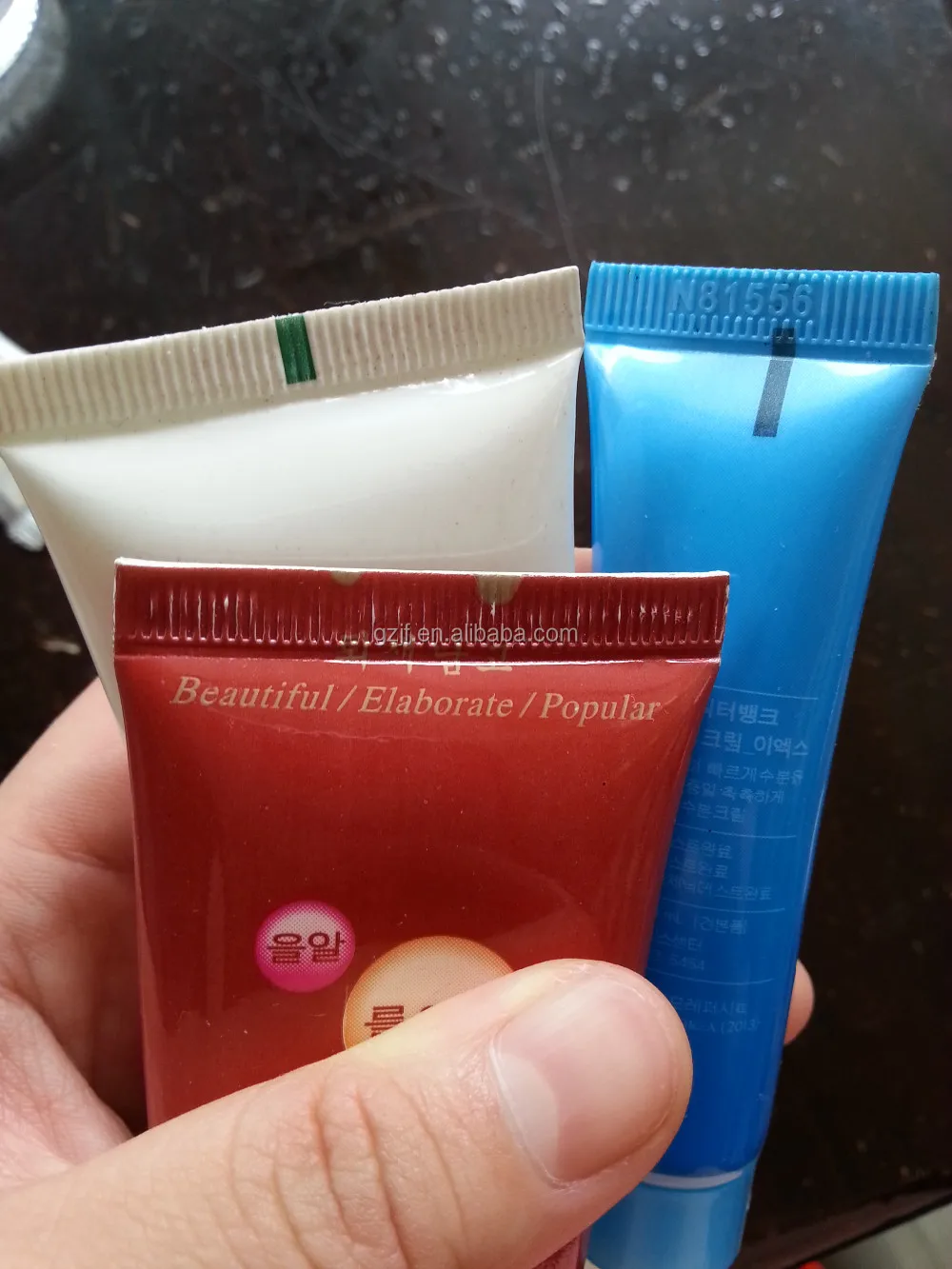

3.Sealing and coding. Also used by the reciprocating cylinder drive scissor mechanism, the heated plastic pipe (composite tube) nip sealed, according to the production batch number and date stamp exchange. Since the plastic tube inside and outside temperature equilibrium, the sealed tube end is very clear strong and can withstand considerable pressure will not break disengaged, while ensuring product quality and credibility of the user, which is all desired by the user.
4.Trimmed means. After the plastic pipe (composite tube) Sealing press code, the trailing end portion is not always neat, it must be cut. The device has a fixed blade and driven by a cylinder with a certain inclination of the movable blade cut the tail, the tail end of the product neat, attractive and improve the appearance of consumer products observability.
5.Machine transmission principle
This machine consists of an electric motor as the main driving force, through a turbine speed reducer and frequency control, through the splitter gear for intermittent operation, so that is mounted on the turntable 10 clamps for isometric exercise. After the artificial tube, filling material can be carried out, the entire filling system uses the cylinder drive, and a metering adjustment screw, can be adjusted within a certain range of measurement accuracy of up to ± 1%. To avoid material things outside drops, the machine adopts filling nozzle is inserted in the form, but also by the lift cylinder to complete the advance and retreat work.
Those who have been filling the pipe, while importing for the next bit, simultaneously inside and outside heated nip, play yards, trimming, top out, everything is done at the same time, so the machine for each rotation a bit, while completing a product, the maximum production capacity of up to thirty one minutes.
All filling, internal and external heating, lamination, cutting, ejection, by division, solenoid valve control actions required to complete the entire running conditions stable, reliable, repeatable performance, the action in place up to 100% without a mistake, safe, reliable, easy to operate. After all users are satisfied after use, generally good response.
Technical parameters
Note : In case of inconformity of the data in the form due to technical improvement or customization , the real object shall prevail.
Delivery
Shipping Details
Usually by sea
About Us
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Service
1,We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you .
2,Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3,If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4,We offer the video to you teach you how to use ,fix ,maintain this machine.
5,When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
