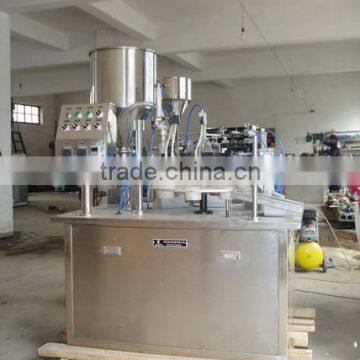

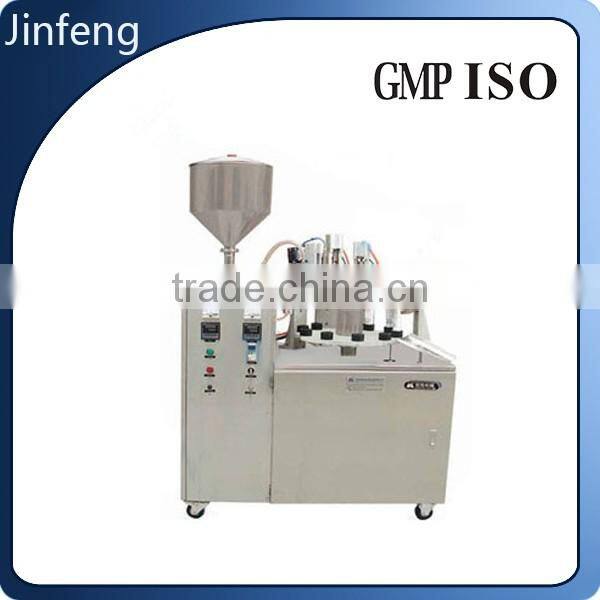

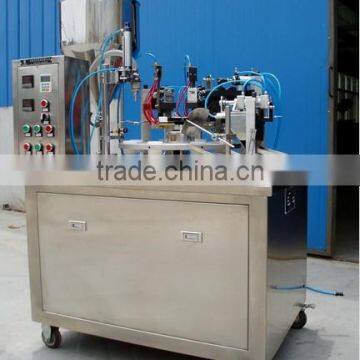

Soft Plastic Tube Infusion Form Fill Seal Machine Filling Machine
Working principle
Artificial the pipe is inserted into the sockets, through mechanical transmission, automatic rotation of eight stations, when the photoelectric detection to the tube, quantitative filling; no tube no filling, through heating, sealing, batch number, the product launch package shear.
Feature
Composite tube filling and sealing machine uses the stainless steel manufacture, all work with high precision cylinder stroke, easy to adjust filling volume, the filling speed can be adjusted. Sealing appearance neat, tight sealing, high precision, good stability. Optional according to different materials: hopper heating system, anti-drawing filling head.
Use
This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material and sealing, this machine is widely used in pharmaceutical, chemical, food, chemical and other industries packaging. Such as cream, skin cream, toothpaste, shoe polish, glue, AB glue, epoxy glue, hair coloring agent, etc., liquid or cream filling and sealing.
Technical paramete
Model | GZJ-B |
Voltage | AC 220V 50HZ |
Power consumption | 150W×8(Tube heating) |
Air supply | 0.6-0.8(MPa) |
Gas consumption | <30(dm³/min) |
Filling range | 5-75 20-150 30-250(ml) |
Working capacity | 20-40(b/min) |
Measurement precision | <2% |
Machine size | 1230×700×1400mm |
Machine weight | 230kg |
Packing & Delivery
1.Packing:the seller packs all of the machine and parts in the firm case that suitable for sea shipping.
2.Delivery date:20-30 working days after receive the deposit.
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
FAQ
Q1:Are you manufacture or trading company?
A1:We are factory, we have our own design team and own workshop.
Q2:What kind of payment terms do we accept?
A2:40%T/T as advance payment,60% before shipment.we also accept Western Union and Money Gram.
Q3:How much is the transportation freight?
A3:The freight depends on the quantity, weight and size ,also the destination port.
Q4:How about the working life of machine?
A4:Our machine can be used for over 5 years.
Q5:How can I trust your company and ensure to get the goods if order from you?
A5:We are Alibaba legitimate certification company(VIP).
Q6:How to ensure that I received the machine undamaged?
A6:Our package is standard for shipping.
Q7:What's your delivery time?
A7:20-30 working days according to your quantity.
Q8:Can I have my own customized product?
A8:Yes, your customized requirements for logo, design and mark etc.are very welcome.
Q9:Do you provide installation & debugging service?
A9:Yeah,we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding.
Factory
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requirements.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Our Services
1. We have professional engineers and high-quality sales team who are good at English to ensure zero communication barriers to you.
2. Any damage or shortage of our goods when you receive your items, please take some photos for a witness.We will deal with it in 24 hours.
3. If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair.
4. We offer the video to you teach you how to use ,fix ,maintain this machine.
5. When the machine broken suddenly ,We offer the instruction teach you how to deal with the emergency.
