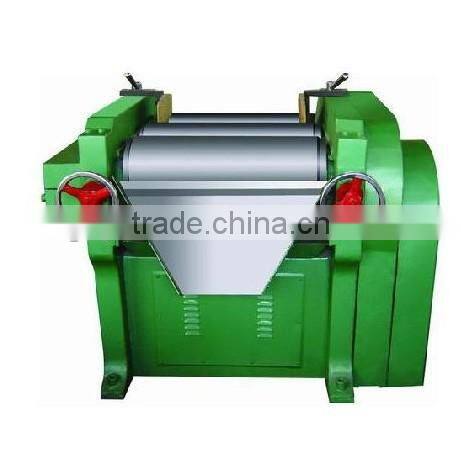

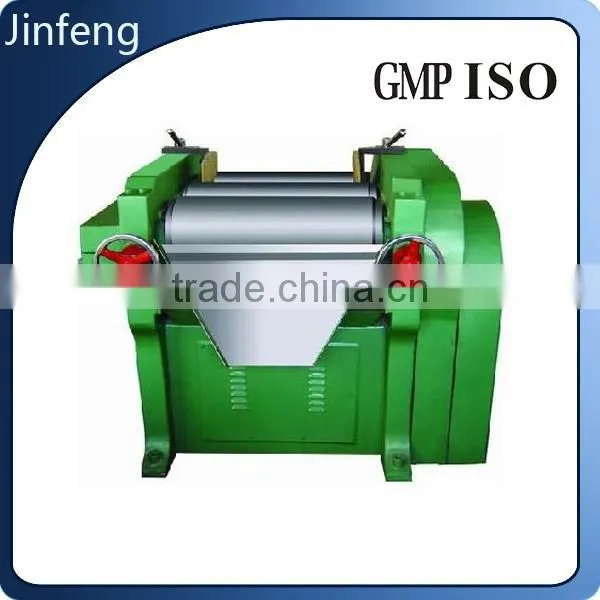

2015 Three Roll Mill
Three roller grinding machine is mainly used for a variety of paint, ink, paint, plastic slurry. Especially suitable
for grinding of high viscosity and particle size of fine products. The machine surface through three roller level
mutual extrusion and friction of different speed and achieve the grinding effect. Cold hard alloy roller material, rustp-roof alloy with different specifications, suitable for different material requirements. The equipment is
simple, convenient, easy cleaning, maintenance. Do not use the location limit.
Suitable for emulsion, homogeneous, dispersion, mixing, crushing, grinding various emulsion material widely
used in food, pharmaceutical, chemical industry, daily chemical industry, ceramics, asphalt, coal etc..
Structure
JFJM series of products of compact design, beautiful shape, good sealing, stable performance, convenient
operation, simple decoration, characteristics, higher efficiency and is ideal equipment for processing of fine
material.
JFJM series of products in addition to special motor and parts, where in contact with the material components
adopt high strength stainless steel, especially the key dynamic, static disk strengthened by heat treatment, so it
has good corrosion resistance and wear resistance of the processed material, no pollution, health and pure.
Feature
The roll surface: double metal hard alloy, high hardness, wear resistance.
Drive system: chain soft starting, stable operation, no noise. Paracytic type hand wheel screw adjustment roller
distance, simple and accurate, easy to operate. Especially in the food industry with high quality natural granite
before grinding production of vegetable protein beverage with no waste, no precipitation, the same taste, high
material utilization ratio, is grinding equipment manufacturers vegetable protein beverage of choice.
Model | SG65 | SG150 | SG180 | SG250 | |
Roller diameter (mm) | 65 | 250 | 180 | 250 | |
Roll face length (mm) | 135 | 320 | 500 | 600 | |
Roller speed (Turn/min) | Slow roll | 33 | 24 | 24 | 16 |
Roller | 99 | 72 | 72 | 48 | |
Fast roll | 297 | 216 | 216 | 144 | |
Power (KW) | 0.55 | 2.2 | 4 | 5.5 | |
Machine size L*W*H(mm) | 450*40*450 | 850*900 *900 | 1020*1280 *1270 | 1300*1300*1100 | |
Weight N.W.(Kg) | 90 | 400 | 600 | 1800 | |
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
If you are not satisfied, Don't be disappointed,u can tell us ur request and we will recommend one to u. And also can customized, our engineer can exclusively design for u.Thank u for ur inquiry !
