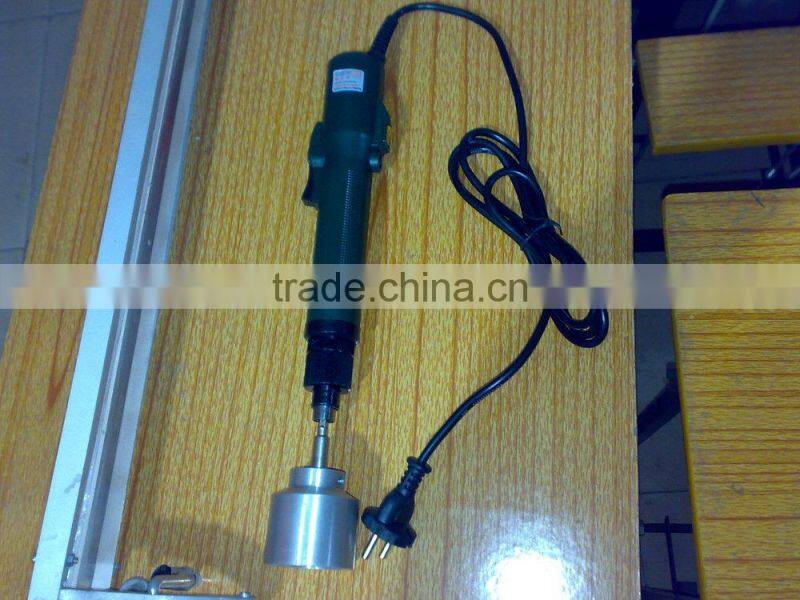

Big Torque Hand Held Eletric Type Small Screw Capping Machine,e-liquid capping machine
| PRODUCT DESCRIPTIONS |
The capping machine for the hand~held electric Capping machine, mainly used for mineral water bottle, medicine bottle caps, plastic caps, all kinds of thread cover unscrew or
screw. Electric Capping Machine by capping the gun body, capping head, multi file transformer is
composed of three parts, easy to carry. When working, capping head cover in the bottle top, capping head and cap gun body is connected, the switch is pressed, capping head rotation, slightly
downward force, 0.3~0.5 seconds will tighten caps, once the cap screwing, card
head automatically stops rotating, that you can move on to the next bottle. Adjustable screw cap onthe gun body torque adjusting nut to realize the elastic cap, the adjustable clutch which can effectively avoid the bottle cap is broken, and reduce the inner wear. Because the torque constant elastic cap is consistent, thus ensuring the quality of the products. Screw cap gun adaptability, φ 10mm-50mm
bottle can be applied, aerosol, essential balm deformed cover also apply, the effect is very
good.
1.Voltage:220V 50Hz
2.Output voltage:36V,28V,20V
3.Output current:0.6A
4.Working speed:30-60 bottle/min
5.Capping dia:φ1050mm
6.Capping height:Unlimited
7.Machine size:180*110*95mm8,Machine wight:3kg9,Clutch adjustable
Operation steps
1.The screw cap machine for connecting the power cord and power box; 2.Connect the power supply, power box indicating lamp is bright;
3.The left hand button caps are bottle;
4.The left hand holding the screw cap of the bottle; 5.Right hand clenched screw cap machine, screw head vertical alignment bottle cap; 6.Right index finger press screw cap on the start switch, press down at the same time, until the screw cap machine clutch automatic clutch, issued a "dadada..." When the noise of
the can, Capping completed. according to the elasticity of the rotating cap, capping
head also does not need to be pressed too tightly;
7.Adjusting cap tightness can be adjusted by the distance between the screw head and screw
machine adjustment nut, tighten the distance, the greater the cap spin too tight, the nut, the smaller
the distance cap screw loose.
| MORE PRODUCTS FOR YOU TO CHOOSE |
About Us
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
Jinfeng focuses on creating value for customers. We not only provide installation service, but also help customers design and select equipment according to existing sites. After-sales Department specifically organizes clients to carry out debugging. We also offer one-year warranty and lifetime maintenance. The after-sales hotline is opening the whole day and we are willing to provide consulting service for you. We value the good relationship with customers. We serve customers in domestic and international markets, and have won a good reputation. "With credit to survive and develop" is our philosophy.
| WORKSHOP OVERVIEW |
| PACKAGING & SHIPPING |
Package Detail:
- Wooden case / carton
Shipping Details:
- Usually by sea
Delivery Time:
- 20-25 working days after received the deposit
