Specifications
1) bottle capper machine2) capping dia.18-55mm
3) 30-40bottles/min
4) adjustable capping speed
5) for various shapes li

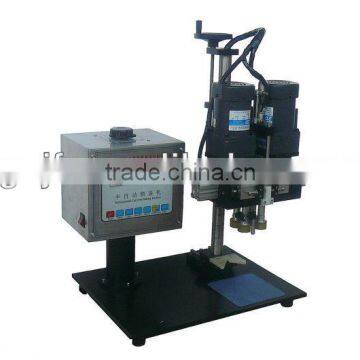

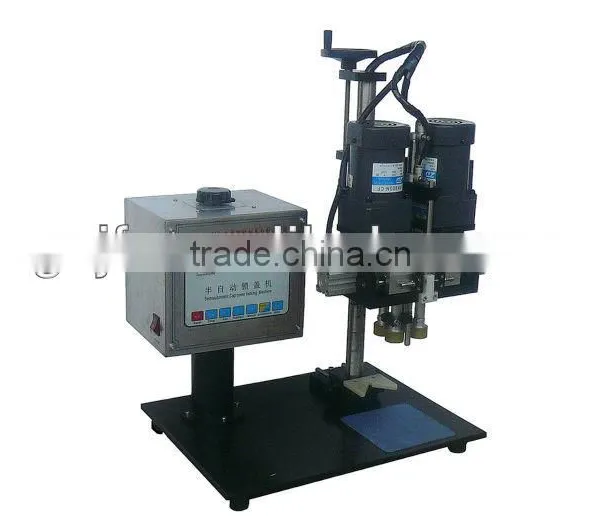

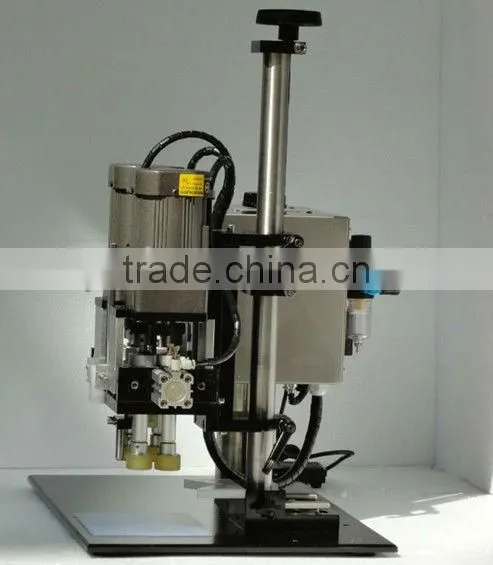

[Product name] XG-100 Semi-automatic block machine (spin duck mouth nozzle cover cover).
[Product introduce]
Feature
1,Main box is made of 304 stainless steel, iron and aluminum oxide;
2,Motor by Japanese DDK brand; double motor; single motor power is 60W;

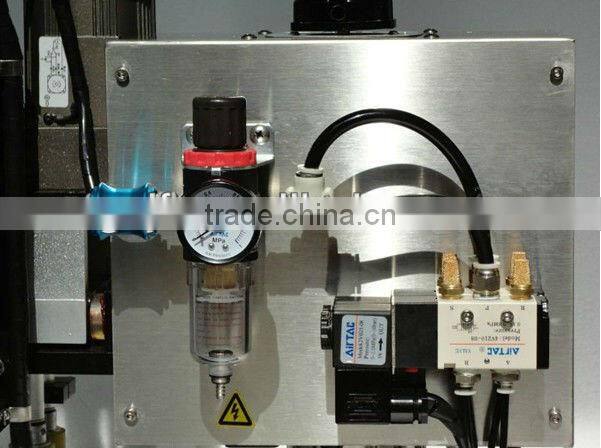

3,Cylinder, trachea, filters, pipe joints, such as full use of Taiwan YataiKe Brand;

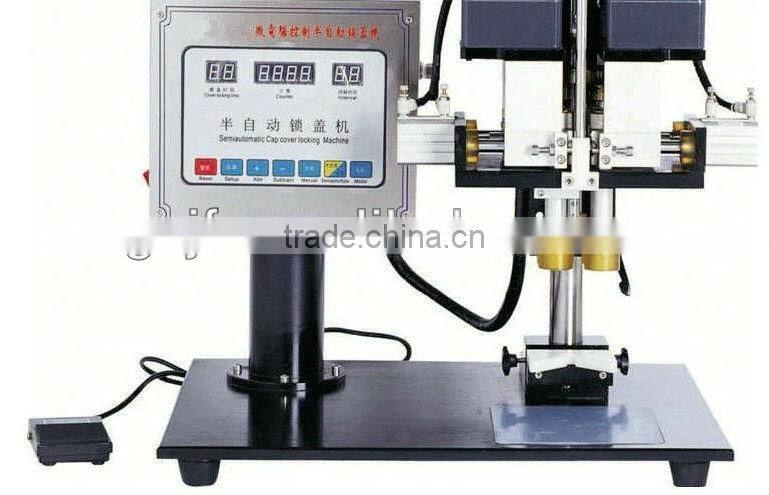

4,Panel for the digital display panel, lock time, lock cover frequency and time interval can be adjustable;
5,Machine base plate for the length * width * thickness (500 * 380 * 10 mm) spray (black) iron oxide;
6,Equipped with pedal switch; semi automatic convertible;
7,Electric control movement, the torque size is adjustable; Capping speed is adjustable;
8,This model can spin duckbill cap, needle nose cap, irregular plastic cover, rules round plastic cover, etc.;
Technical parameters
Name |
Semi-automatic capping machine |
Model |
XG-100 |
Voltage |
AC220V.50/60Hz |
N.W. |
45kg |
Power |
60W*2 |
Pressure |
4-6kg/cm2 |
Capping height |
50-300mm |
Working speed |
0-30b/min |
Machine size |
565*467*671mm |
Capping range |
20-50mm |
Packing size |
655*567*751mm |
Capping torque |
4-8kgf/cm |
